OEM System Circuits: EPS: Notes

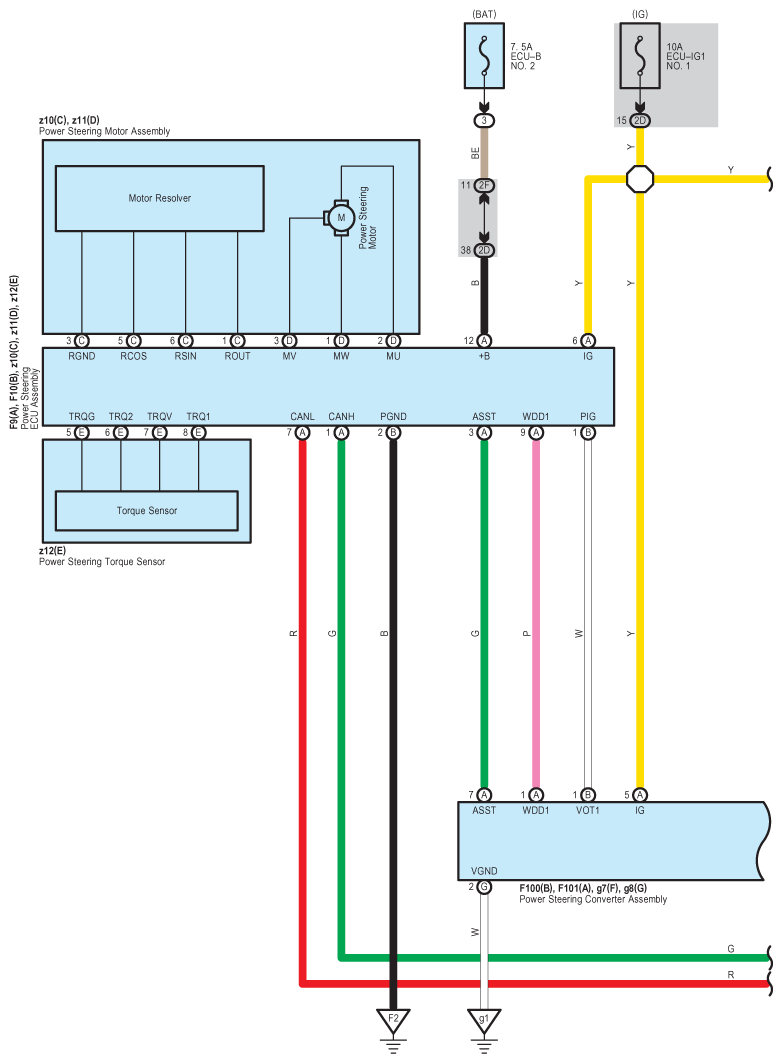

Fig 1: EPS - Circuit Diagram (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

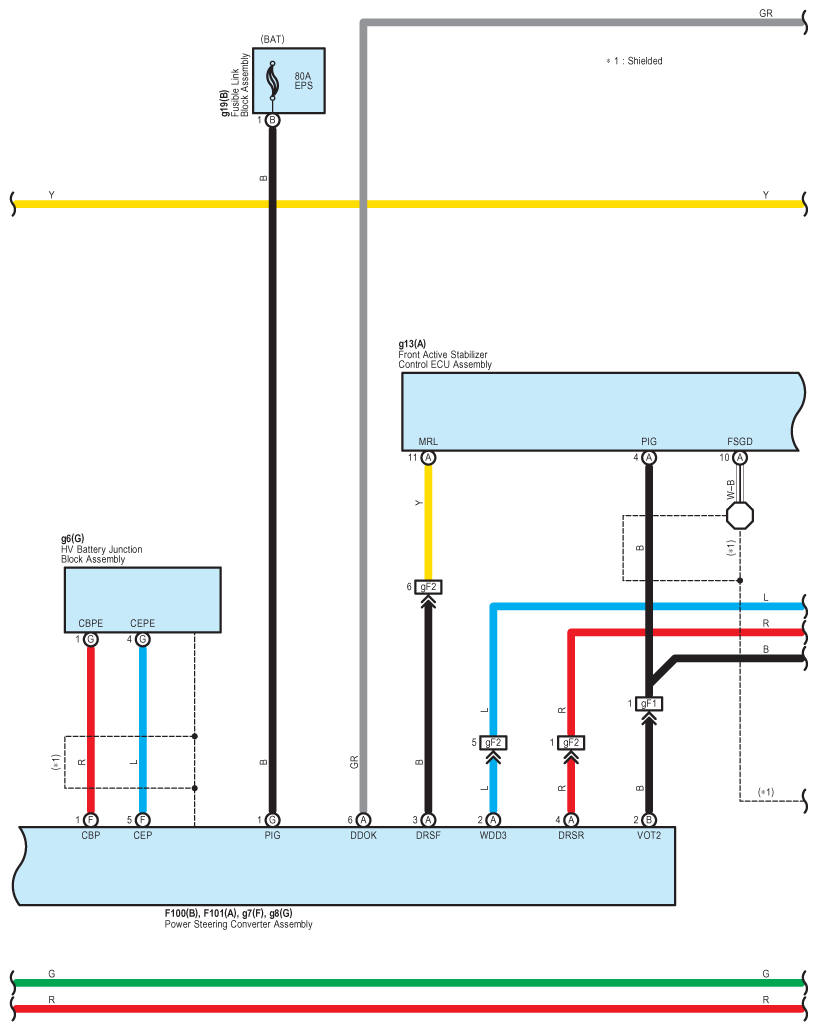

Fig 2: EPS - Circuit Diagram (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

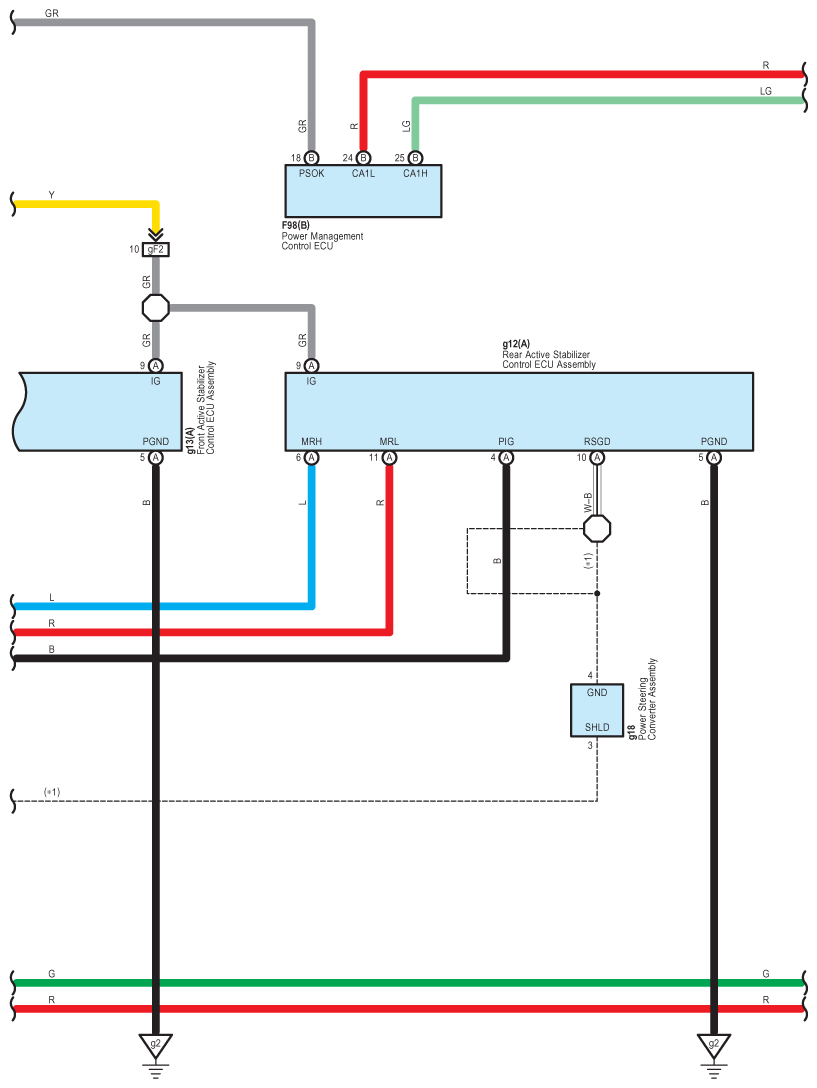

Fig 3: EPS - Circuit Diagram (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

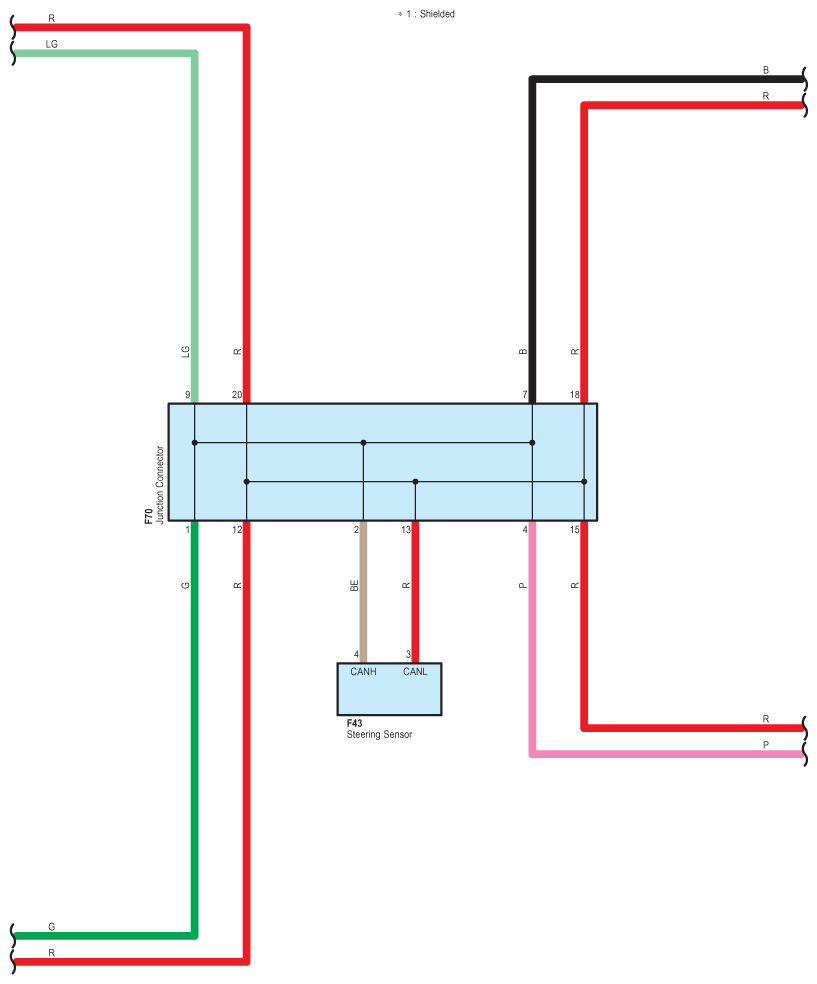

Fig 4: EPS - Circuit Diagram (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

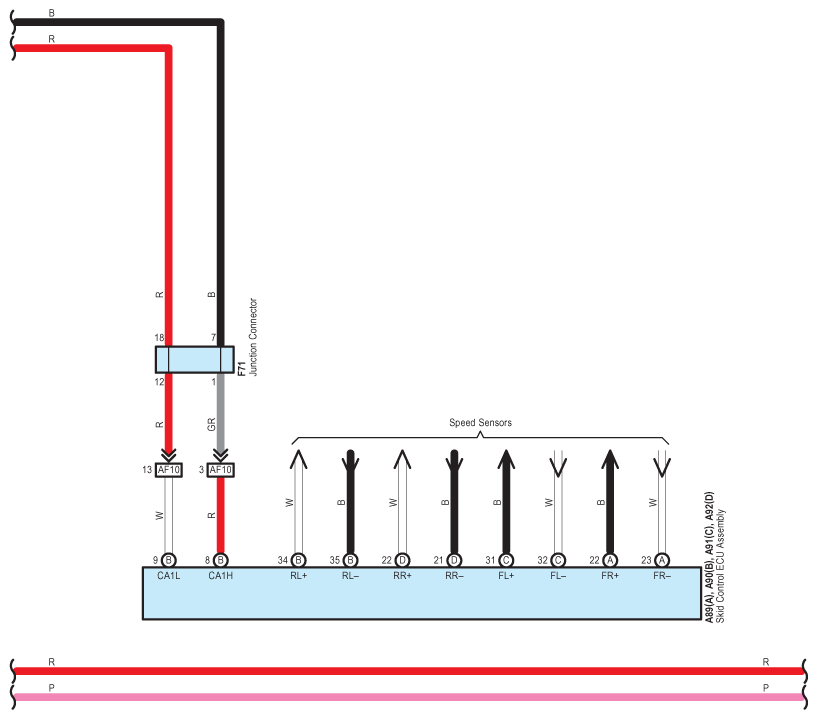

Fig 5: EPS - Circuit Diagram (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

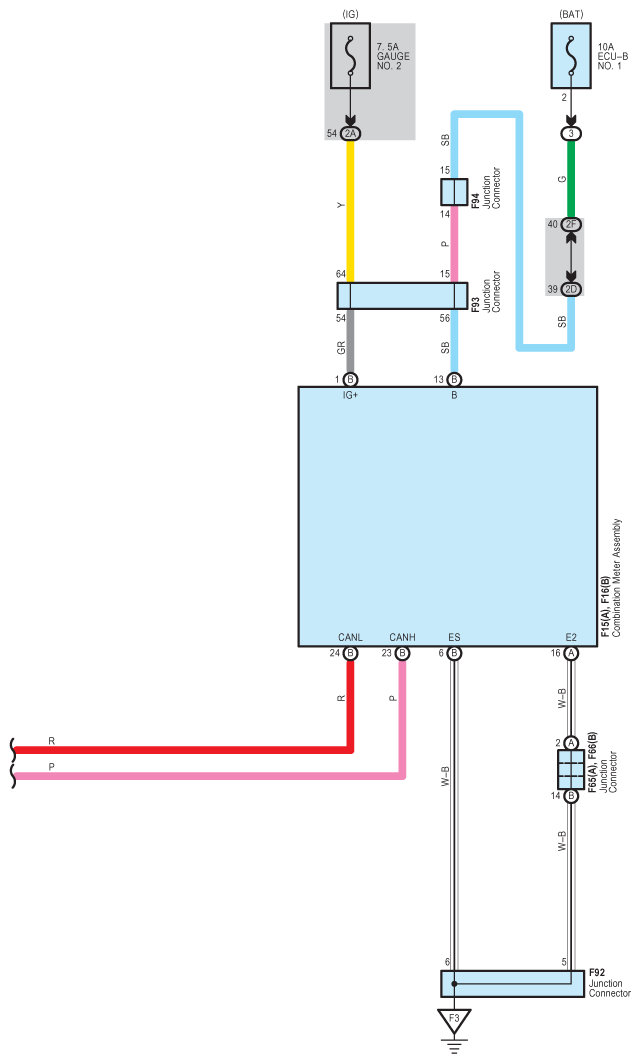

Fig 6: EPS - Circuit Diagram (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
