Installation

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

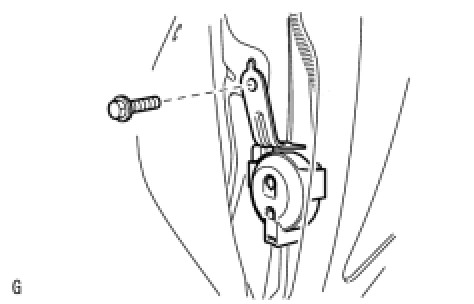

1. INSTALL WIRELESS DOOR LOCK BUZZER





(a) Connect the connector.

(b) Install the buzzer with the bolt.

(c) Install the 2 clips.

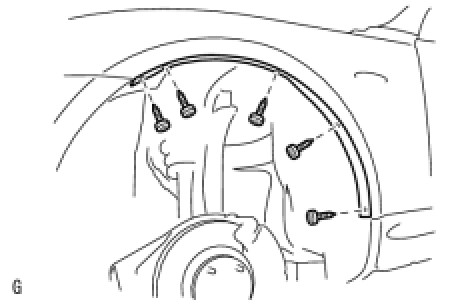

2. INSTALL FRONT FENDER WHEEL OPENING MOULDING RH





(a) Install the moulding with the 5 screws.

3. INSTALL TIRE
