Installation

AIR CONDITIONING: AIR CONDITIONING PANEL: INSTALLATION

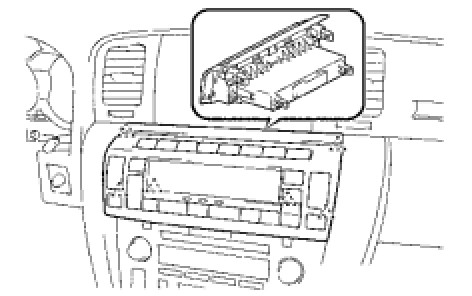

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

(a) Connect the 3 connectors and install the A/C control.





(b) Push the A/C control towards the front of the vehicle and attach the 6 clips.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
