System Diagram

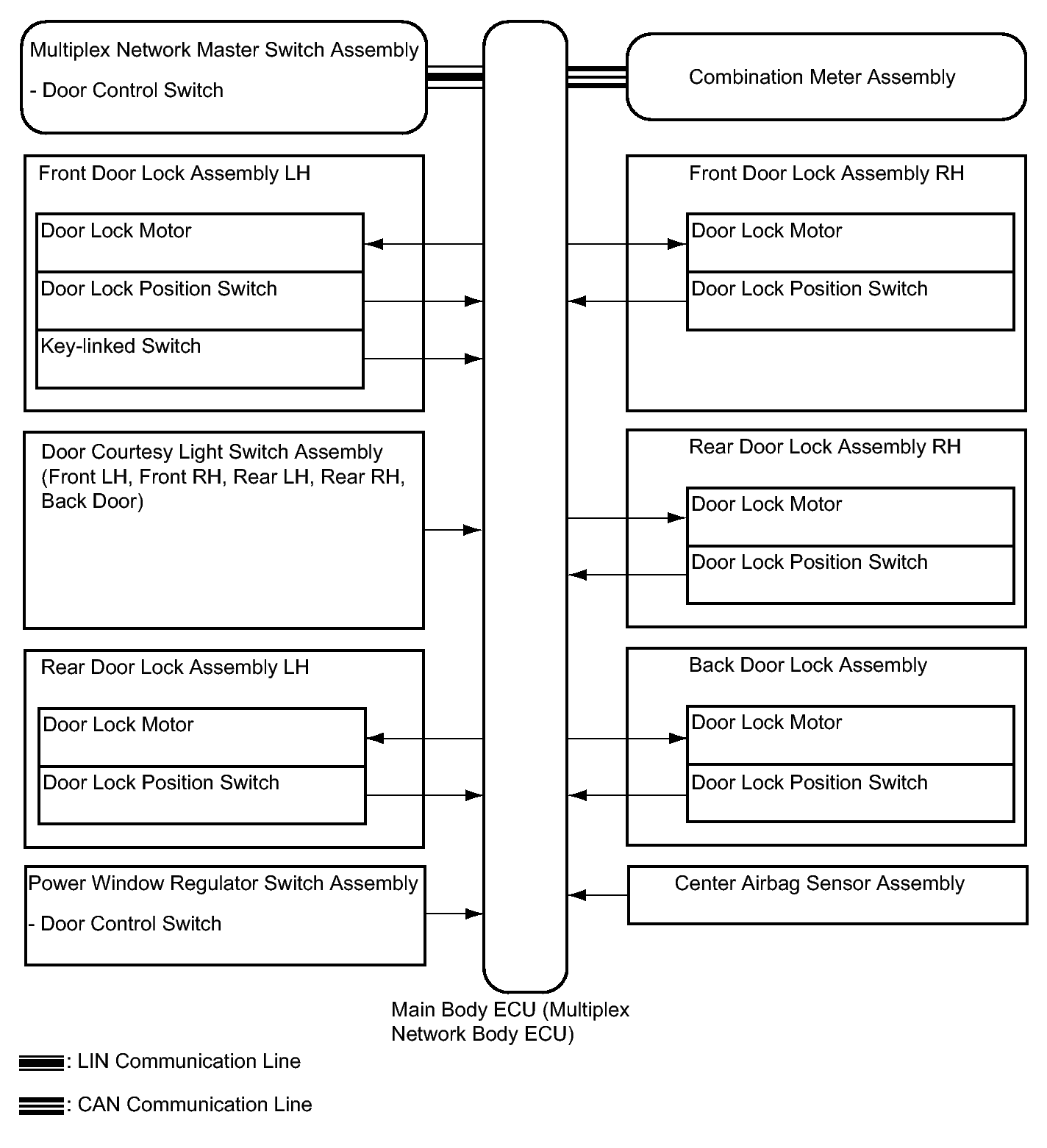

Fig 1: Identifying Power Door Lock Control System Diagram
GTY265412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Communication Method
Multiplex network master switch assembly Main body ECU (Multiplex network body ECU) Driver side door manual lock switch signal LIN
Combination meter assembly Main body ECU (Multiplex network body ECU) Vehicle speed signal CAN
