Transmission Control Cable: Installation: Installation
- INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
- Insert the transmission control cable from the outside of the vehicle and attach the 3 claws of the cable retainer.
- Install the 2 nuts.
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
- Connect the transmission control cable to the transmission control cable bracket with a new clip and connect the cable end to the control shaft lever with the nut.
Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)
- Connect the transmission control cable support and ground cable with the 2 nuts.
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

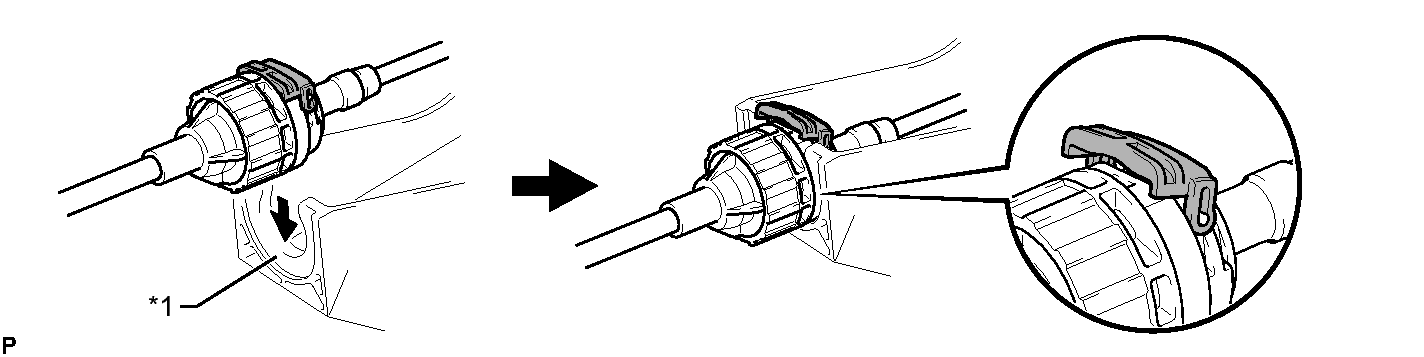

TEXT IN ILLUSTRATION*1 Ground Cable - Turn the socket of the transmission control cable 180° counterclockwise. While holding the socket in place, push in the lock piece until the lock piece clicks twice.NOTE:
Do not over-rotate the socket as it will come off the internal spring and the transmission control cable will not be reusable.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 Socket *2 Lock Piece *a Push in - - HINT:
If the lock piece cannot be pushed in, slightly turn the socket clockwise and then push in the lock piece again.
- Install the outer part of the transmission control cable to the shift lever retainer. Check that the socket and lock piece are in their original positions.TEXT IN ILLUSTRATION
*1 Shift Lever Retainer - - - Slide the slider in the direction shown in the illustration and pull out the lock piece.TEXT IN ILLUSTRATION
*1 Slider *2 Lock Piece - Connect the end of the cable to the shift lever.
NOTE:
- Make sure that the lock piece is pulled out.
- Push the end of the cable all the way to the base of the pin.
- Push the lock piece into the adjuster case and lock it.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:Make sure that the lock piece is completely locked by the slider.
- INSTALL REAR CONSOLE BOX ASSEMBLY
- Install the console box. Refer to INSTALLATION .
- w/ Refrigerated Cool Box:
Install the console box. Refer to INSTALLATION .
