Turn Signal and Hazard Warning Light: Notes

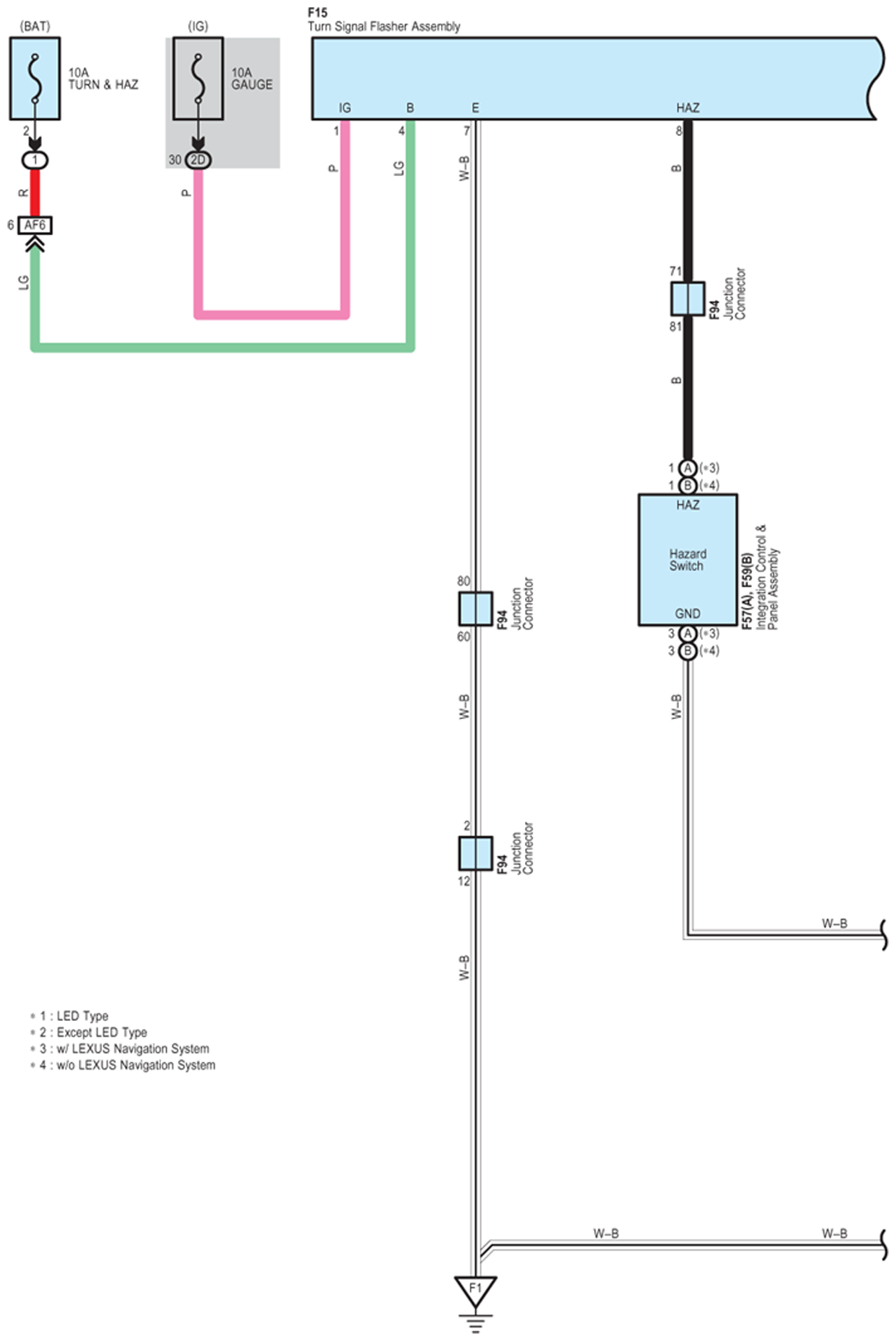

Fig 1: Turn Signal And Hazard Warning Light - Circuit Diagram (1 Of 4)
G07578272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

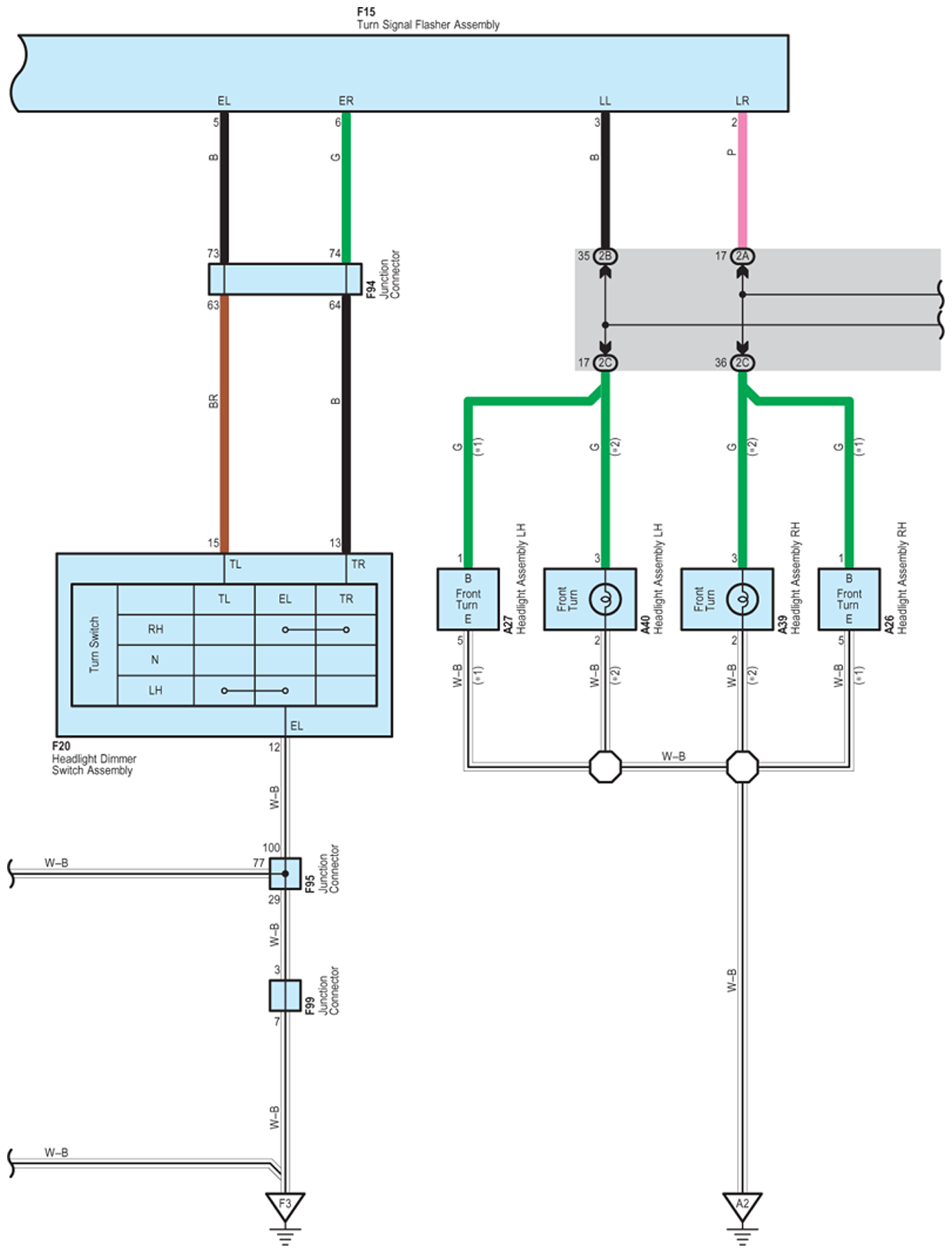

Fig 2: Turn Signal And Hazard Warning Light - Circuit Diagram (2 Of 4)
G07578273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

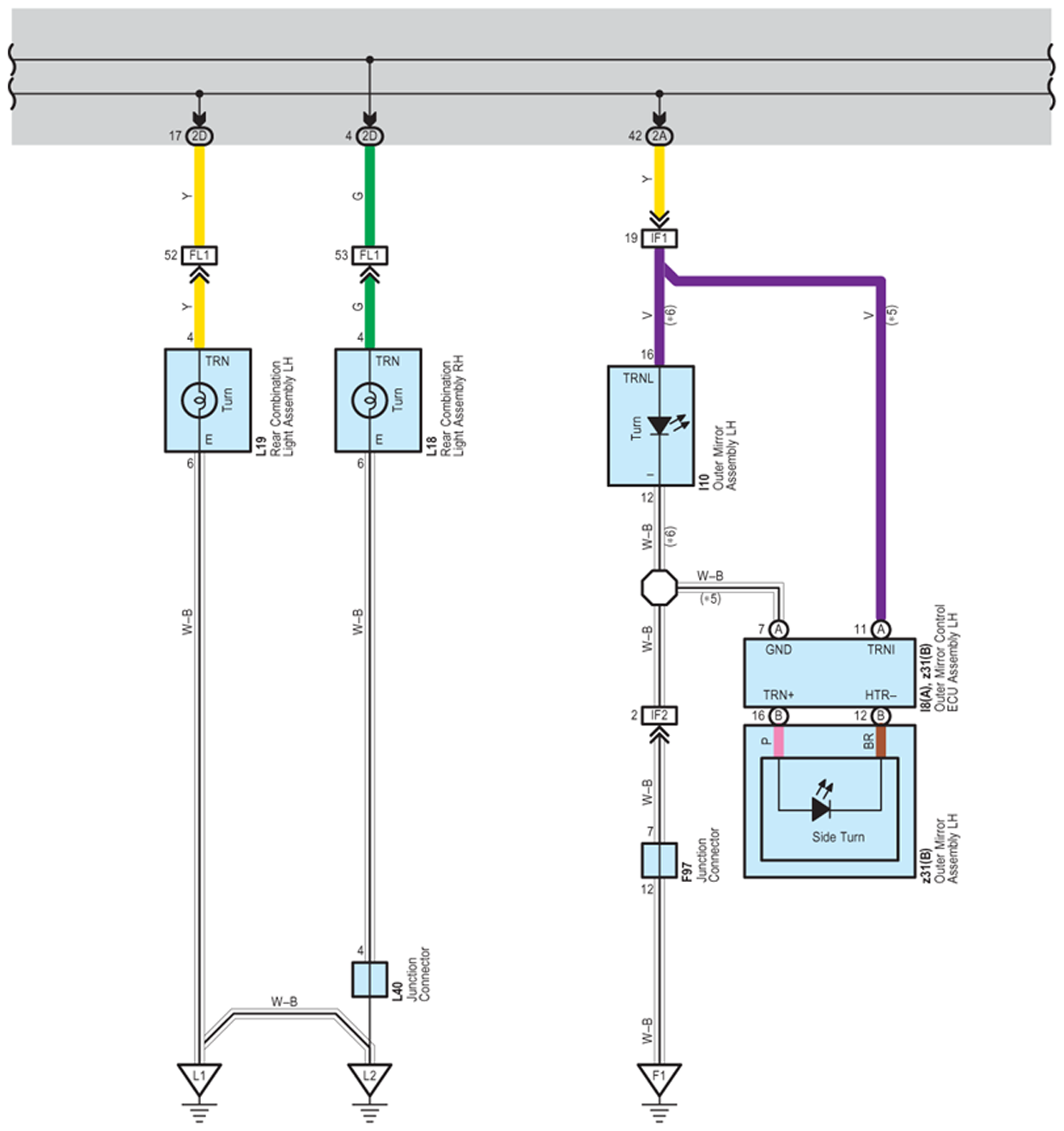

Fig 3: Turn Signal And Hazard Warning Light - Circuit Diagram (3 Of 4)
G07578274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

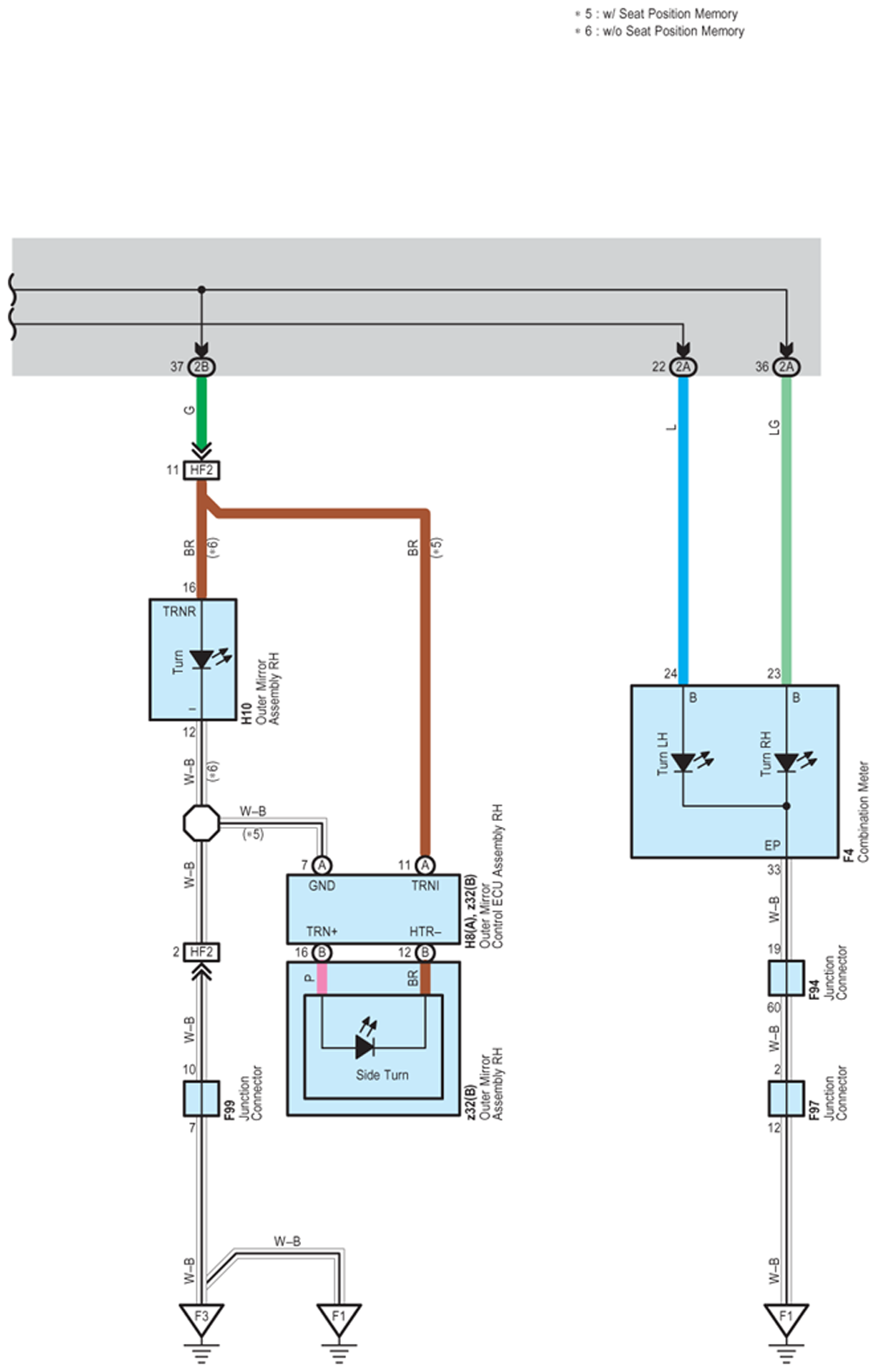

Fig 4: Turn Signal And Hazard Warning Light - Circuit Diagram (4 Of 4)
G07578275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
