Battery System (Service Information): Battery: Components: Illustration

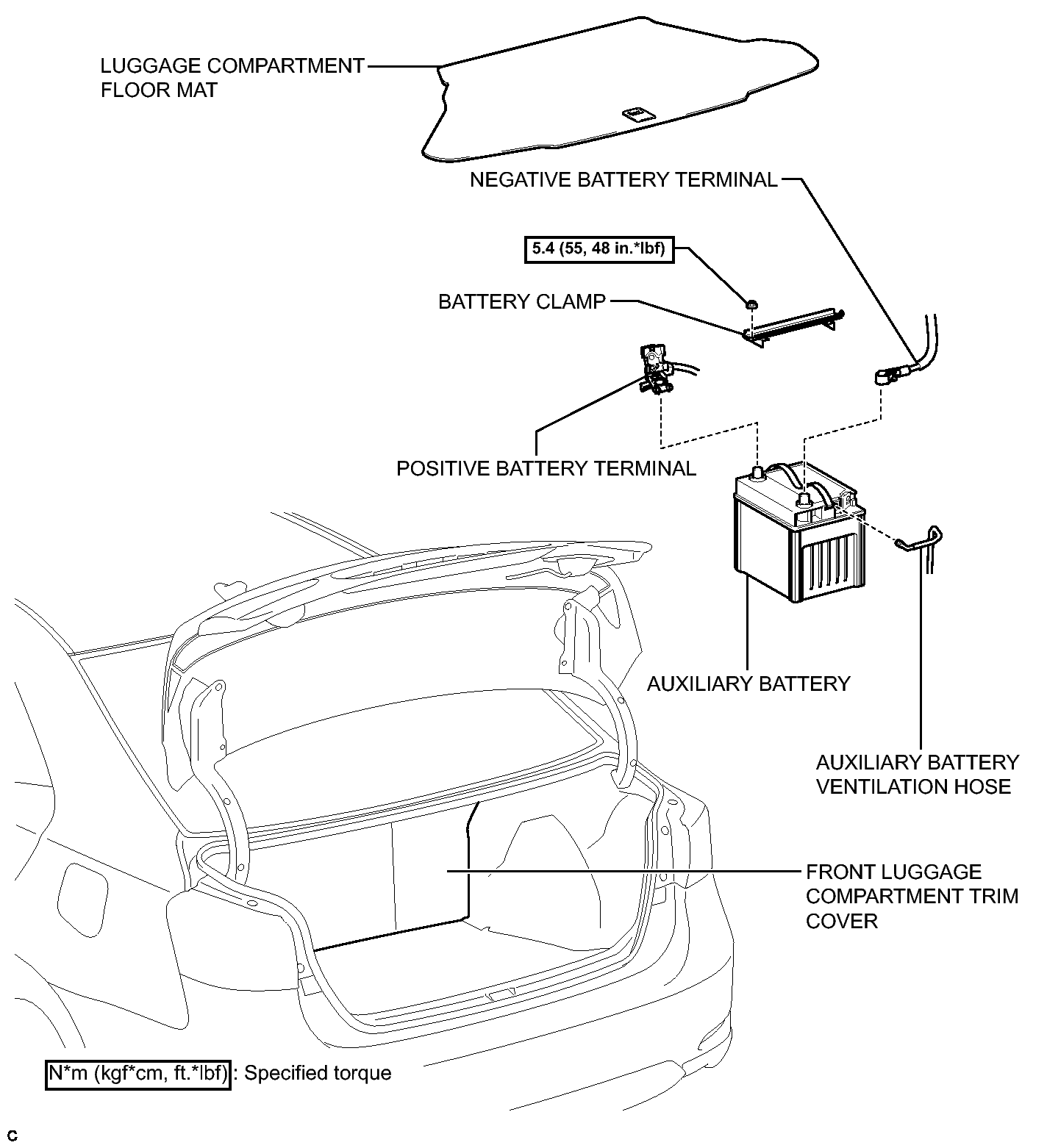

Fig 1: Identifying Battery Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
