Timing Cover

Timing chain cover

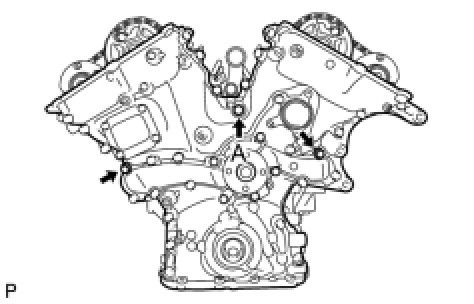

Bolt A 43 Nm (438 kgf-cm, 32 ft lb)
Except bolt A 21 Nm (214 kgf-cm, 15 ft lb)

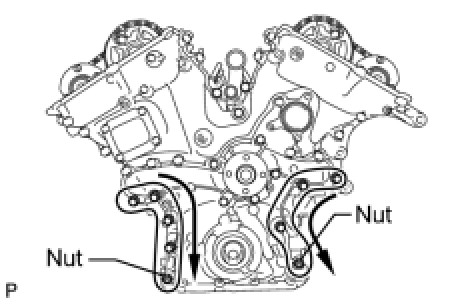

Torque 21 Nm (214 kgf-cm, 15 ft lb)

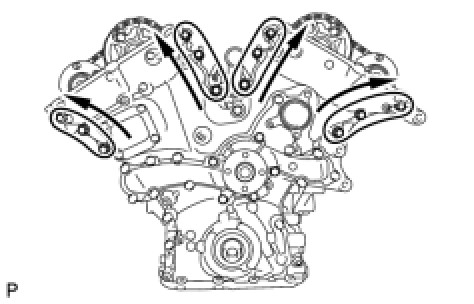

Torque 21 Nm (214 kgf-cm, 15 ft lb)

Tighten the bolts and nuts in the order from upper to lower as shown in the illustration
