System Specifications

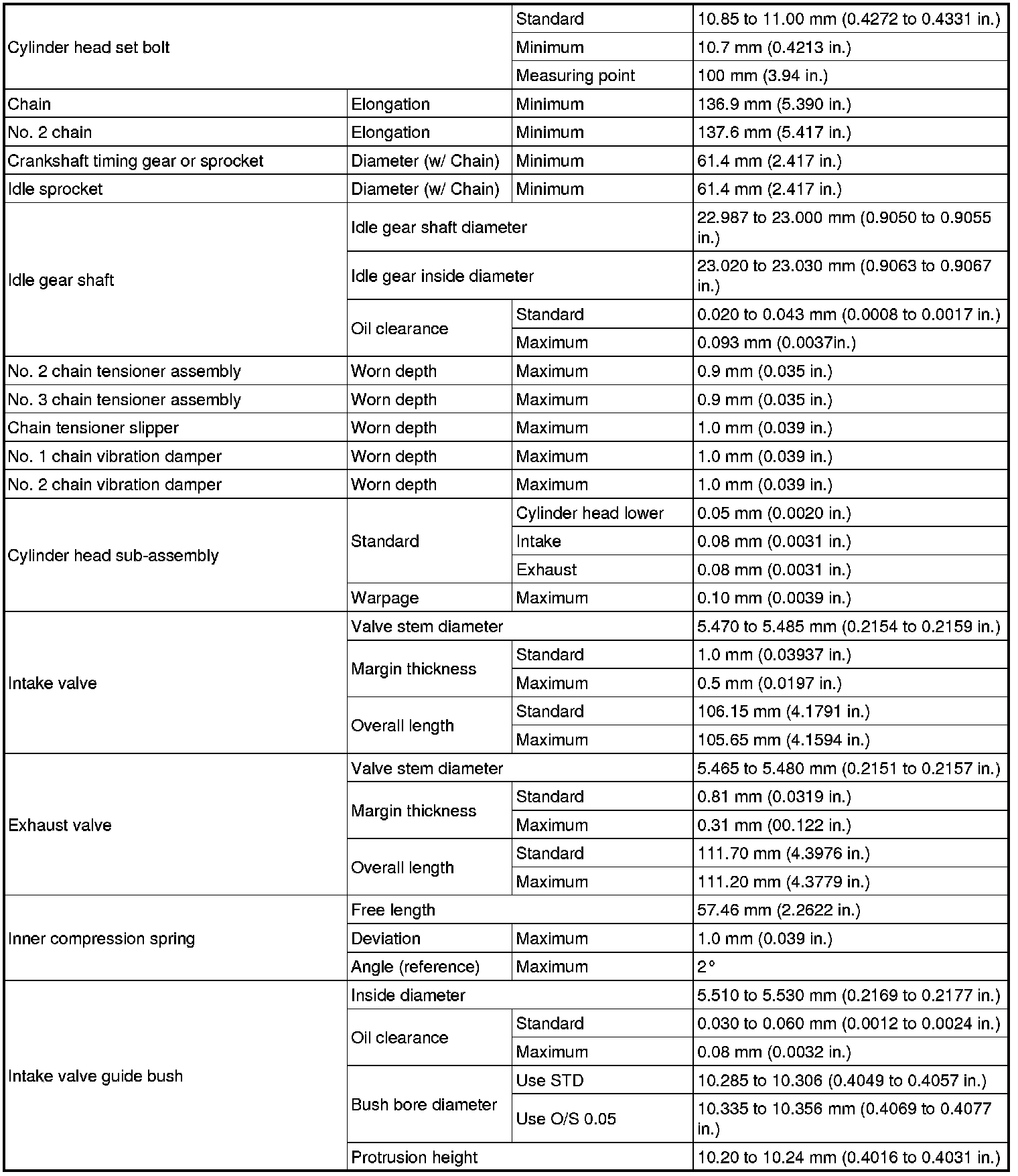

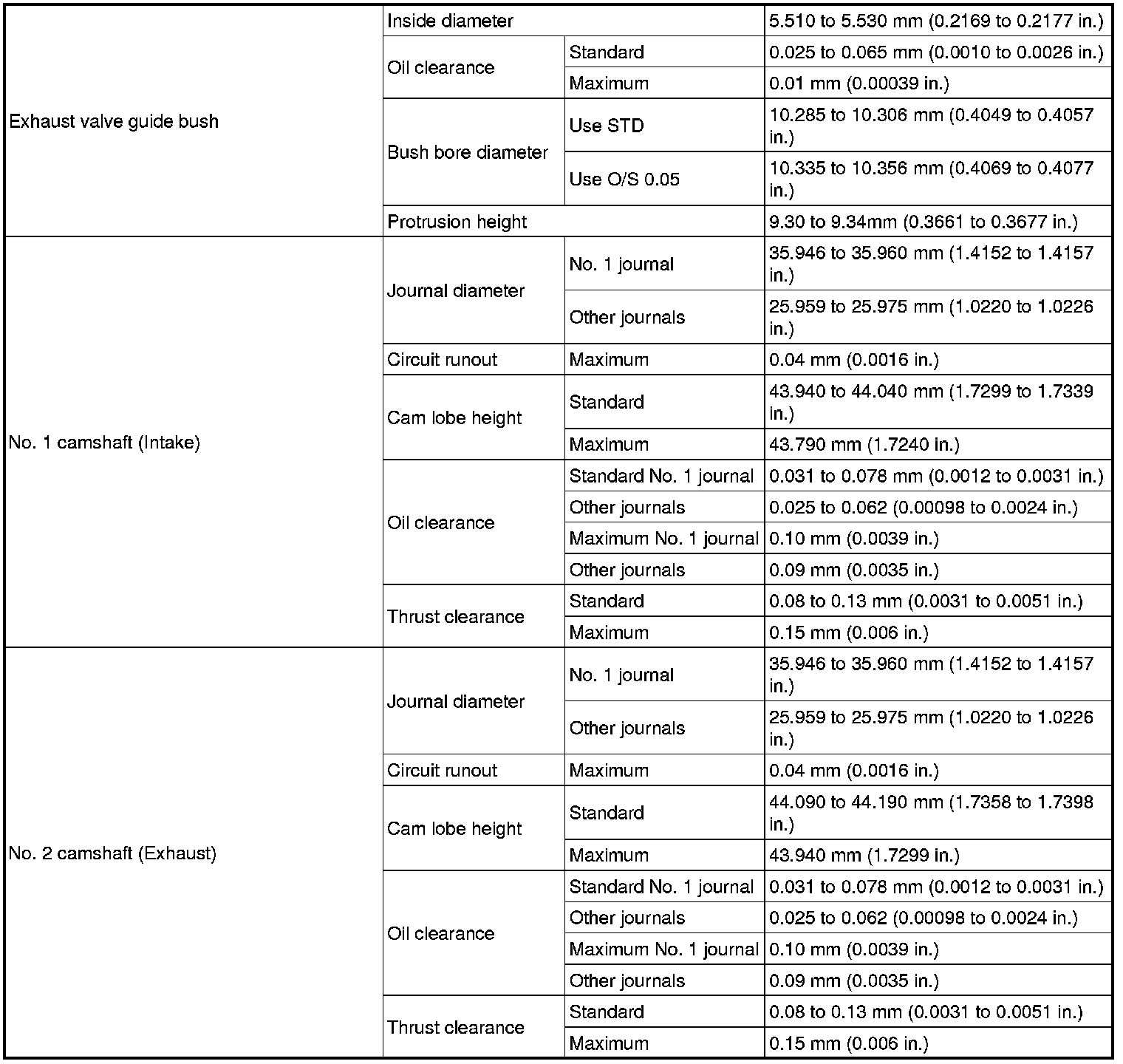

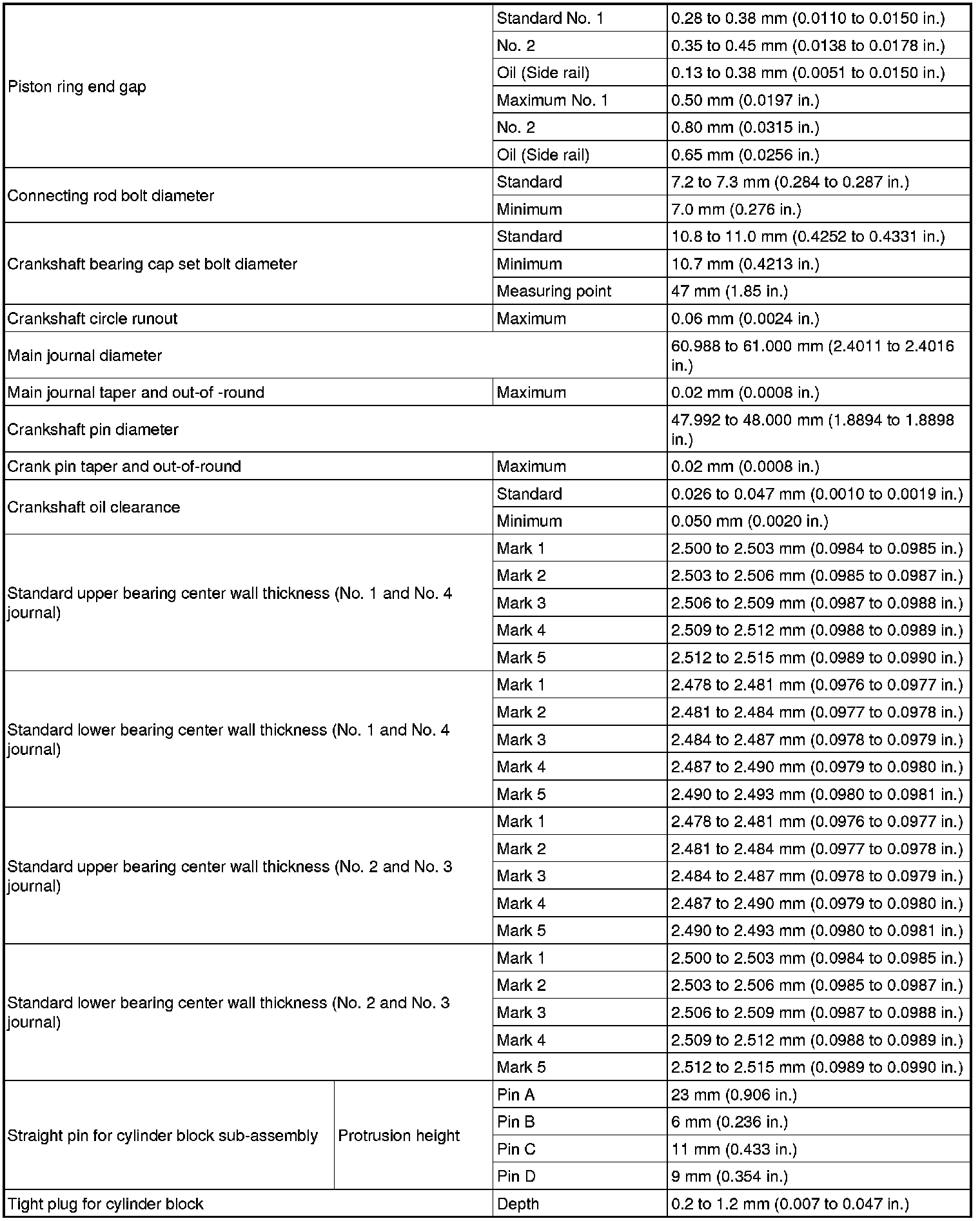

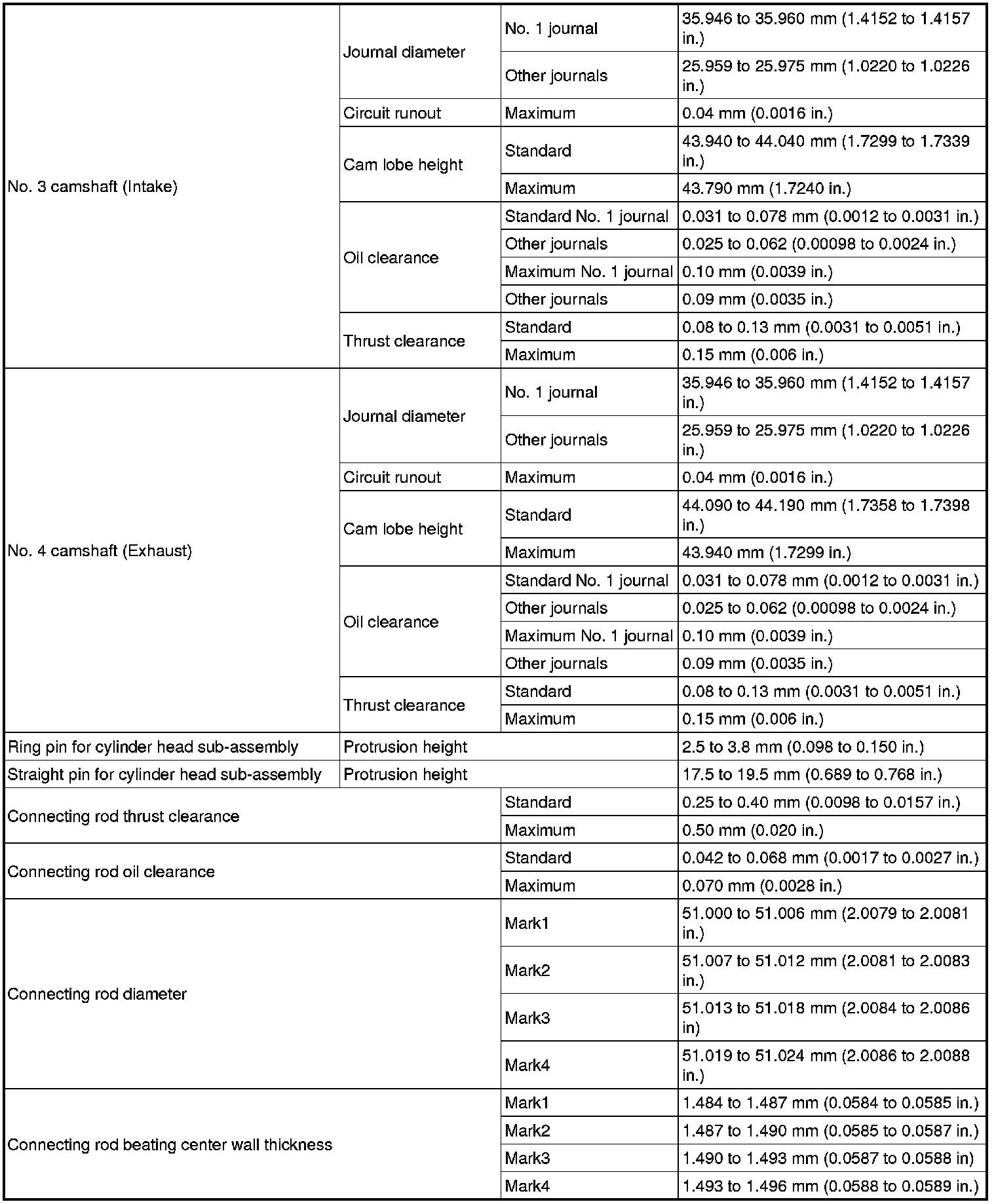

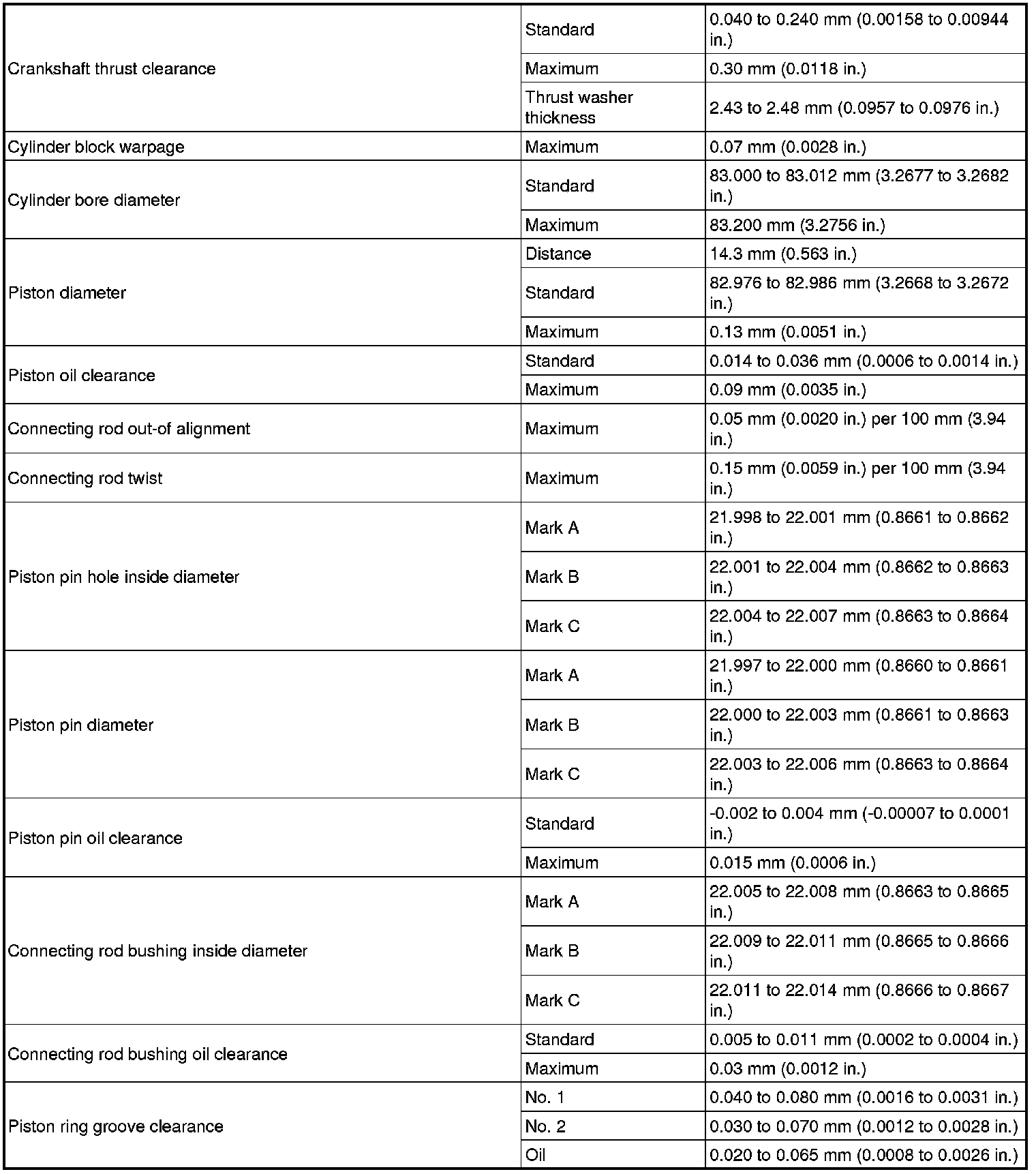

SERVICE SPECIFICATIONS: 4GR-FSE ENGINE MECHANICAL: SERVICE DATA

ENGINE





ENGINE UNIT
