Fuse Block

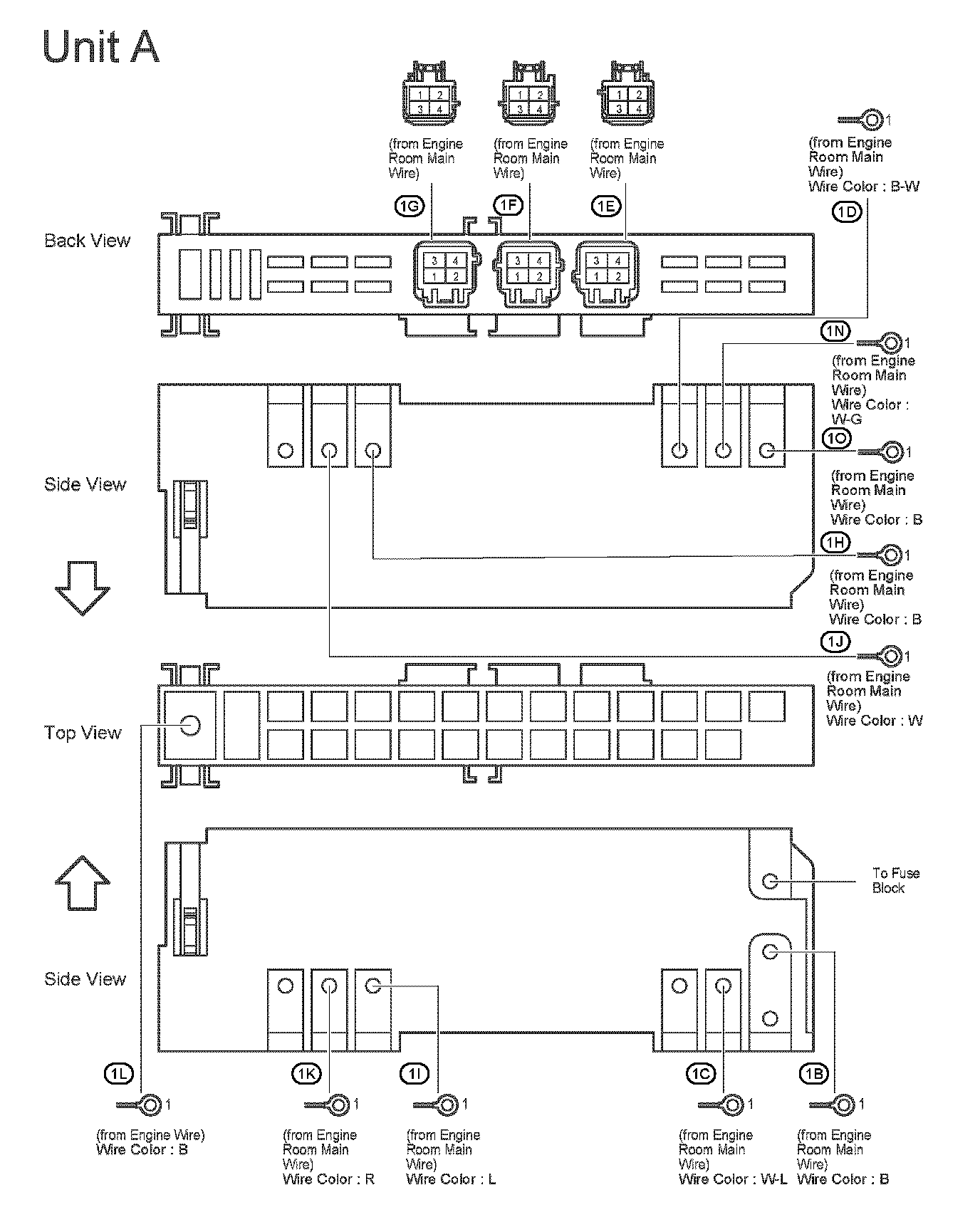

Engine Room R/B No.1 Assembly, Engine Room J/B No.1 Assembly - Right Engine Compartment:

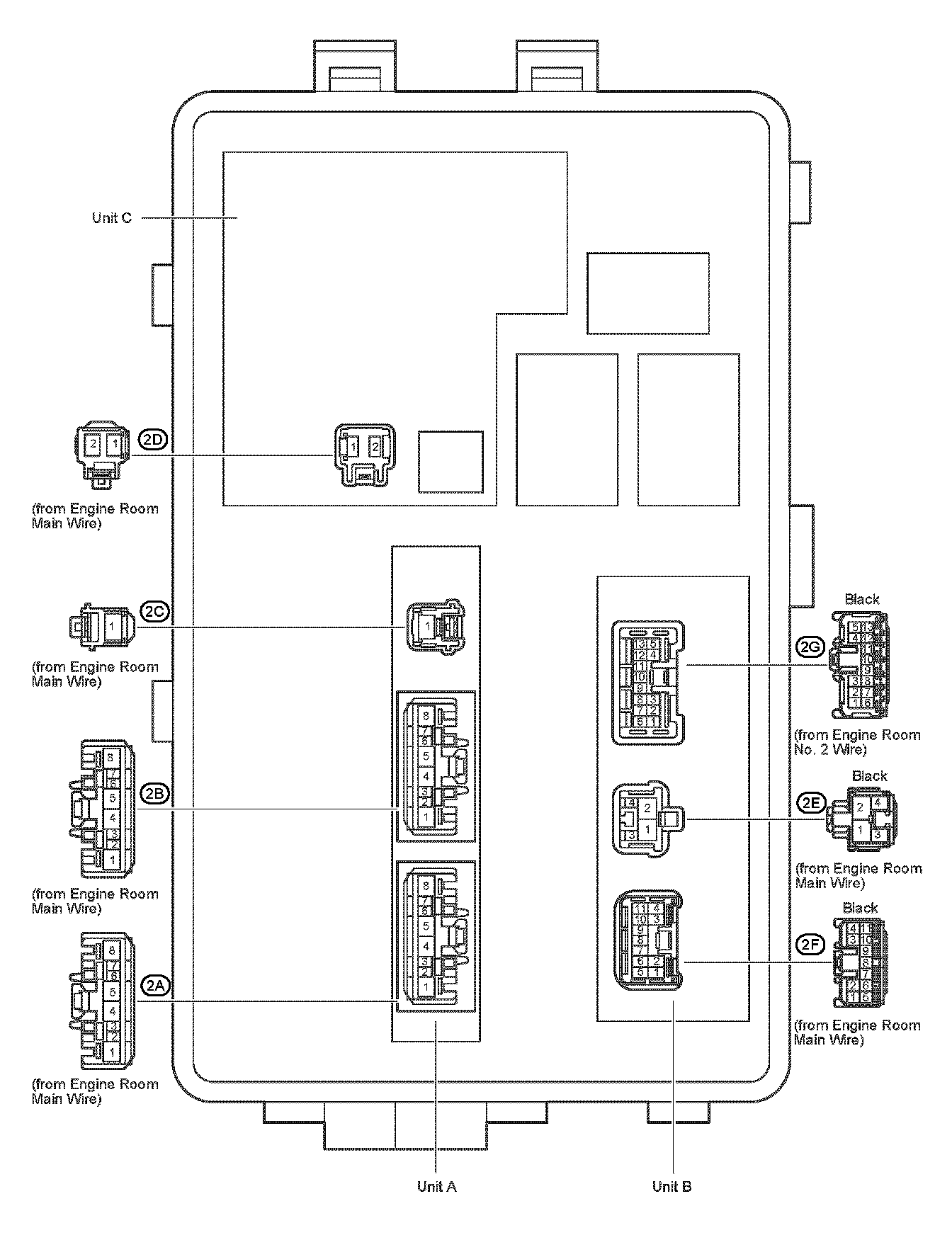

Engine Room R/B No.2 Assembly, Engine Room J/B No.2 Assembly - Left Engine Compartment:

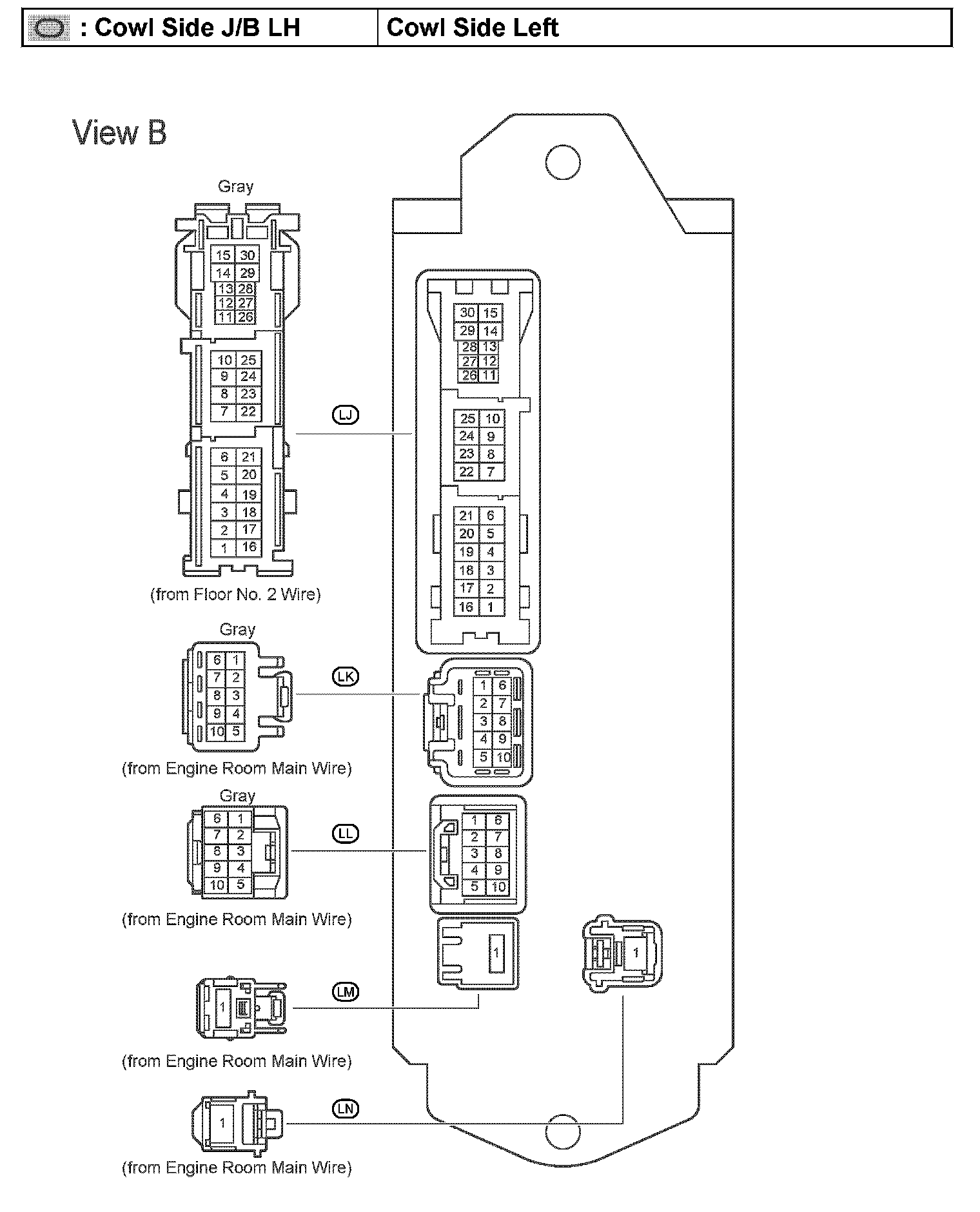

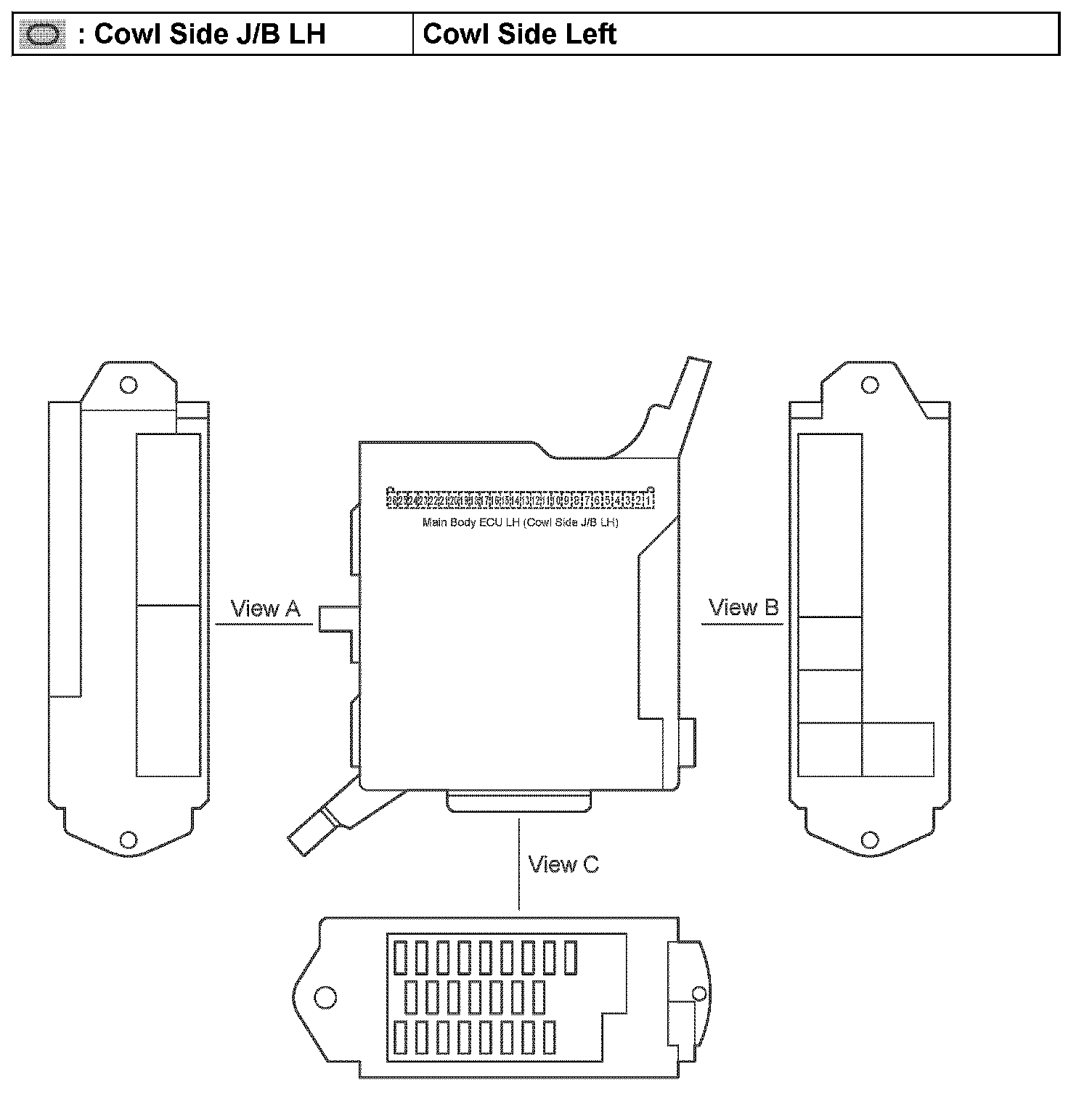

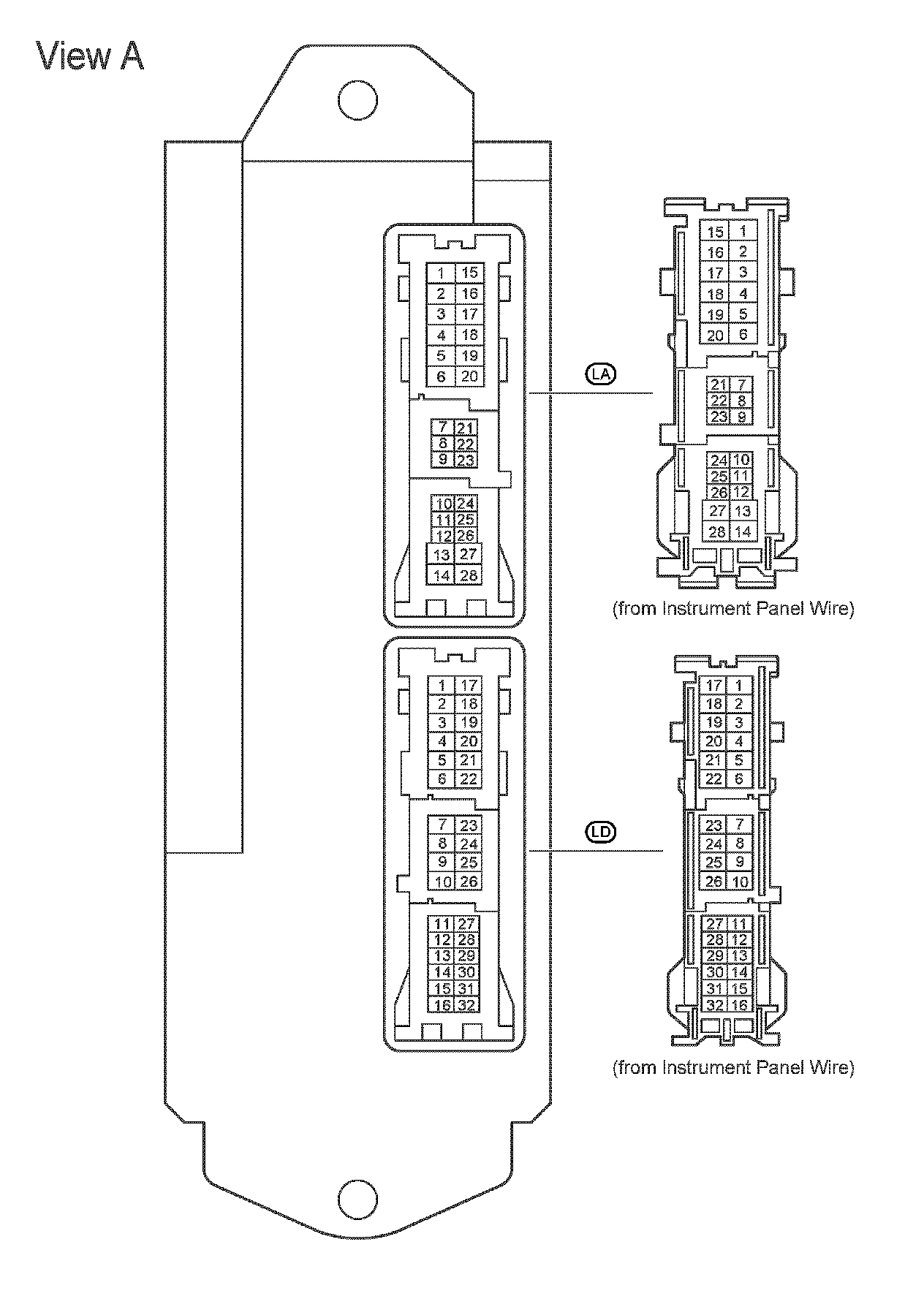

Cowl Side J/B LH - Cowl Side Left:

Cowl Side J/B LH - Cowl Side Left:

Cowl Side J/B LH - Cowl Side Left:

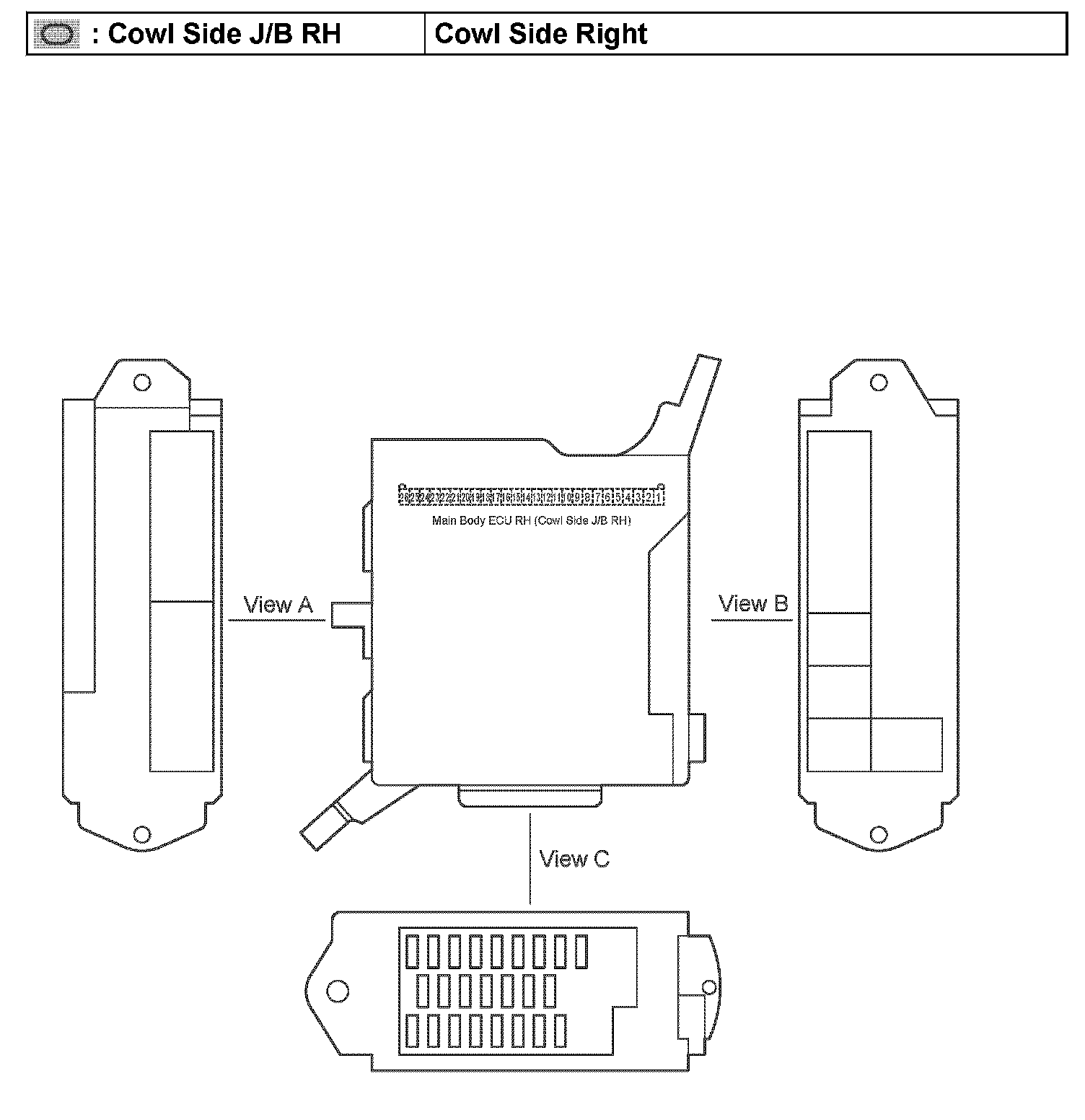

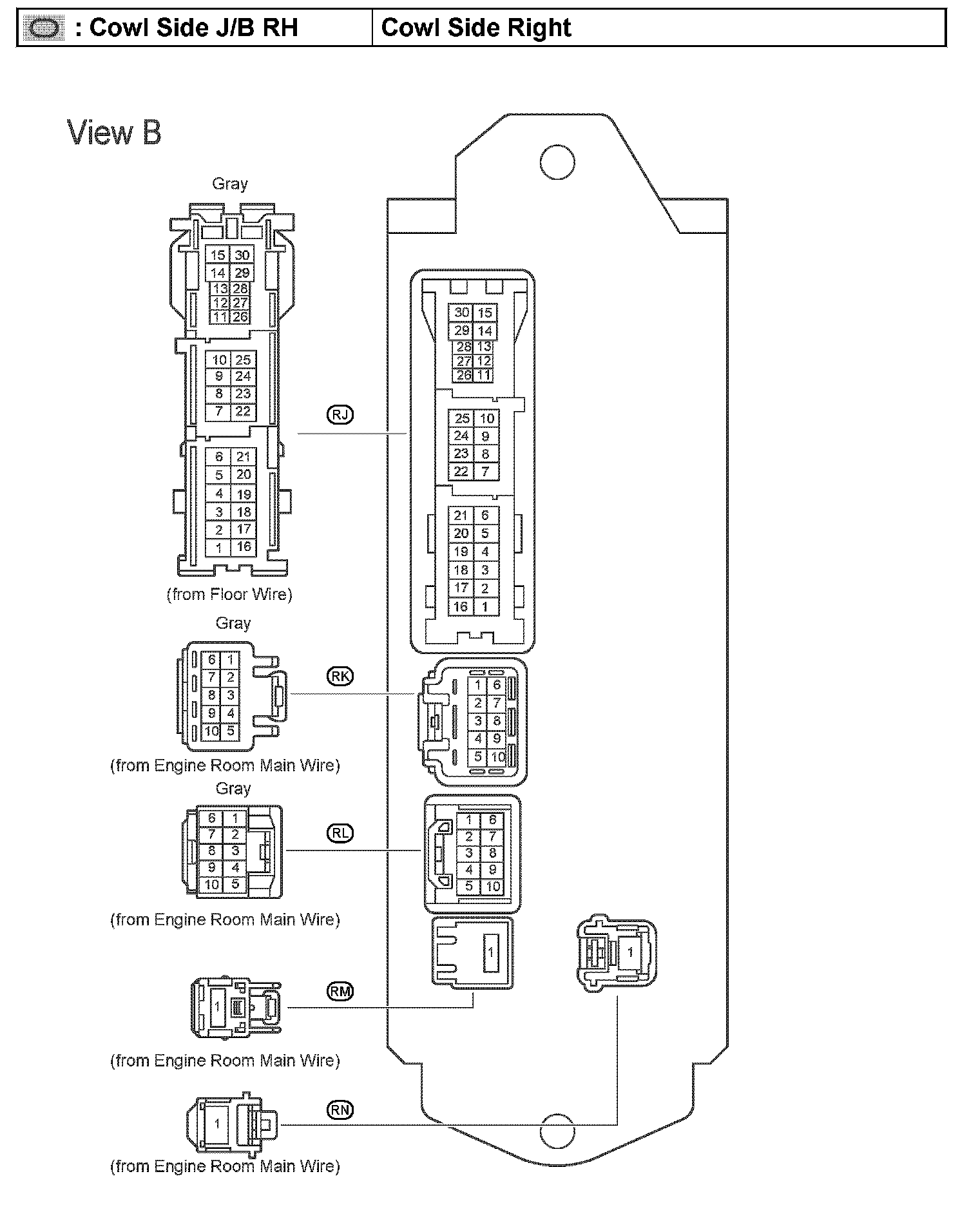

Cowl Side J/B RH - Cowl Side Right:

Cowl Side J/B RH - Cowl Side Right:

Cowl Side J/B RH - Cowl Side Right:

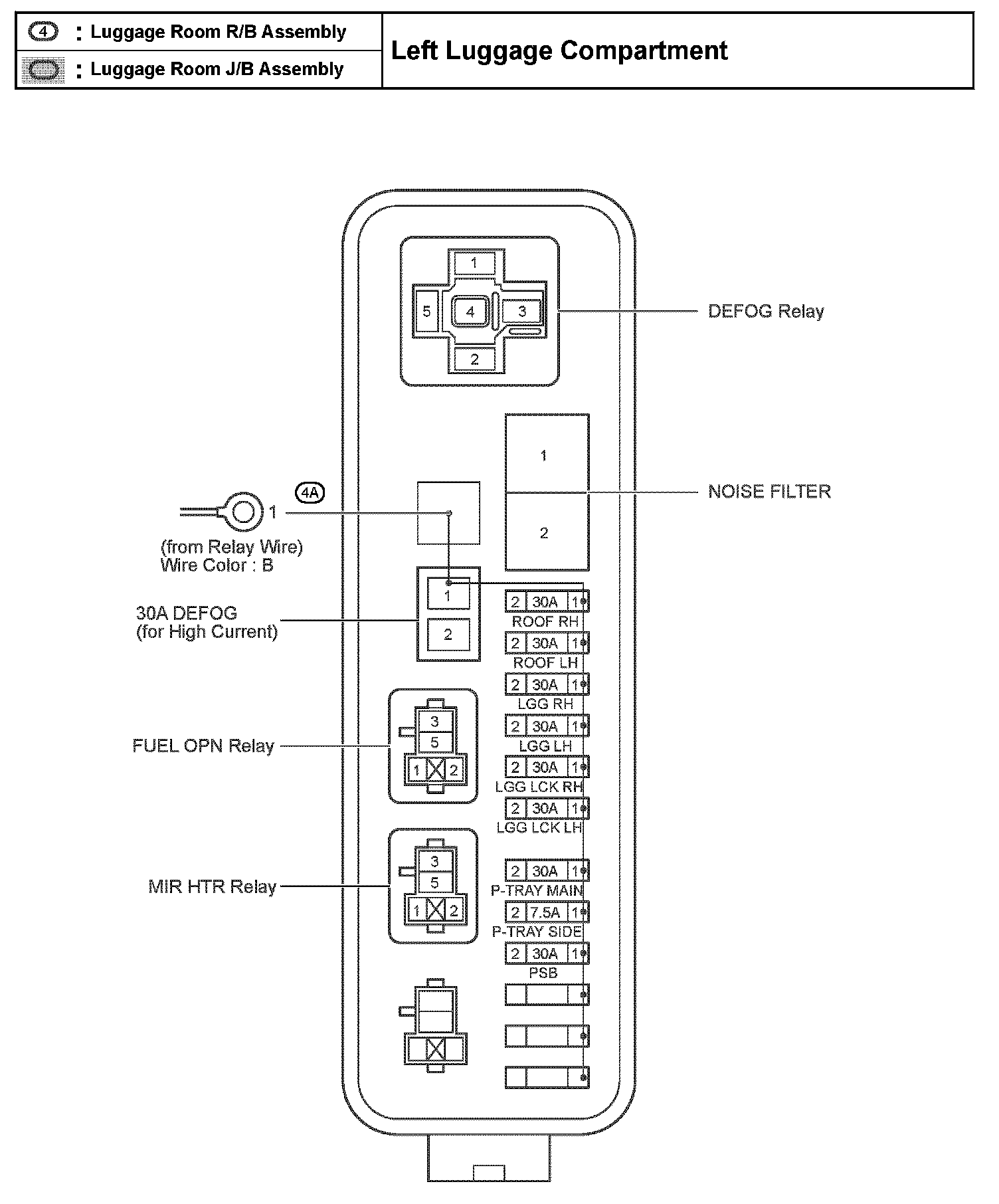

Luggage Room R/B Assembly, Luggage Room J/B Assembly - Left Luggage Compartment:
