Service Data





SPECIFICATIONS: A960E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

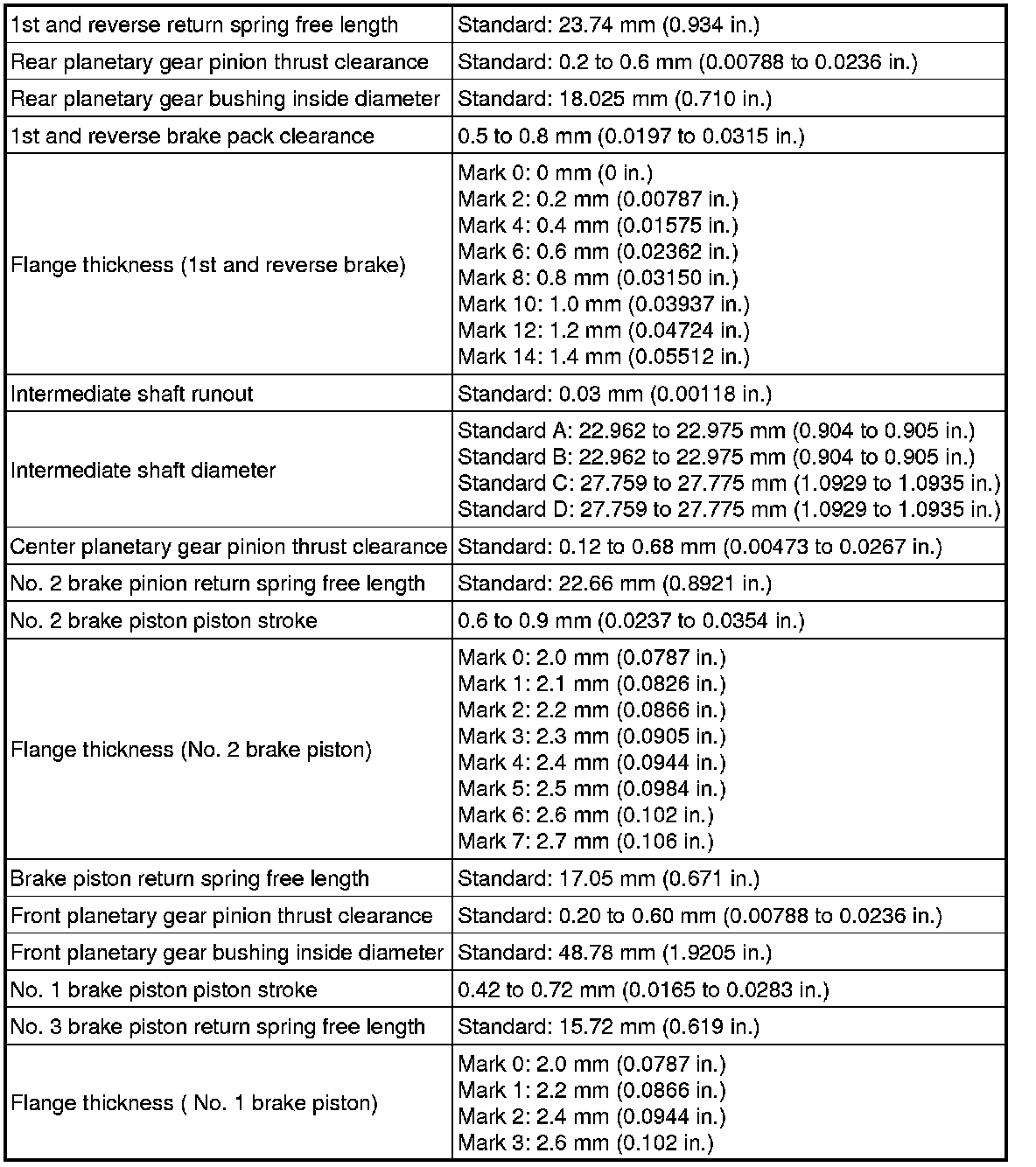

Automatic Transmission Unit:





Oil Pump:

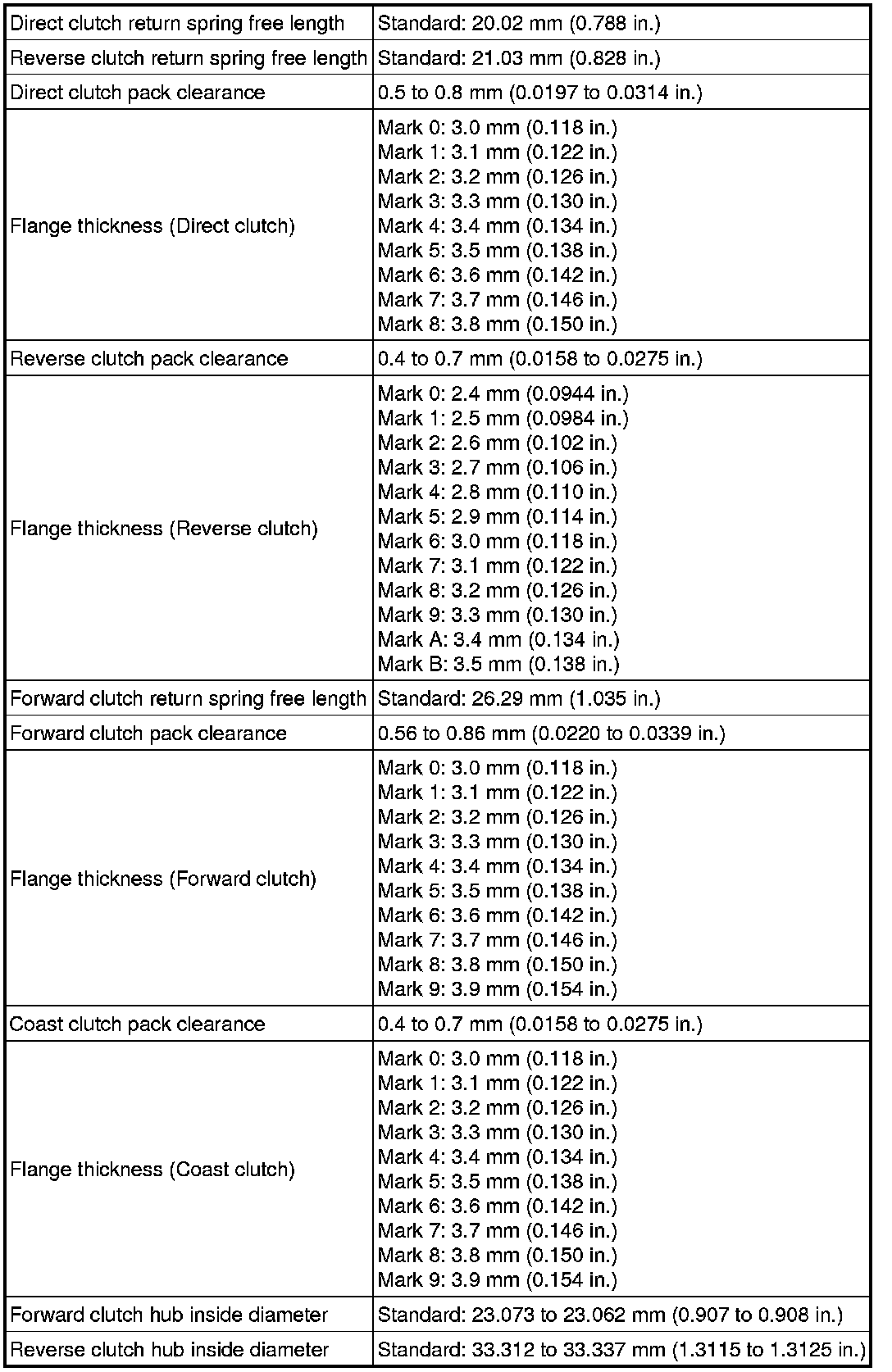

Clutch Drum And Input Shaft:





Accumulator:





Output Shaft Bearing:
