Toe Control Link: Components: Illustration

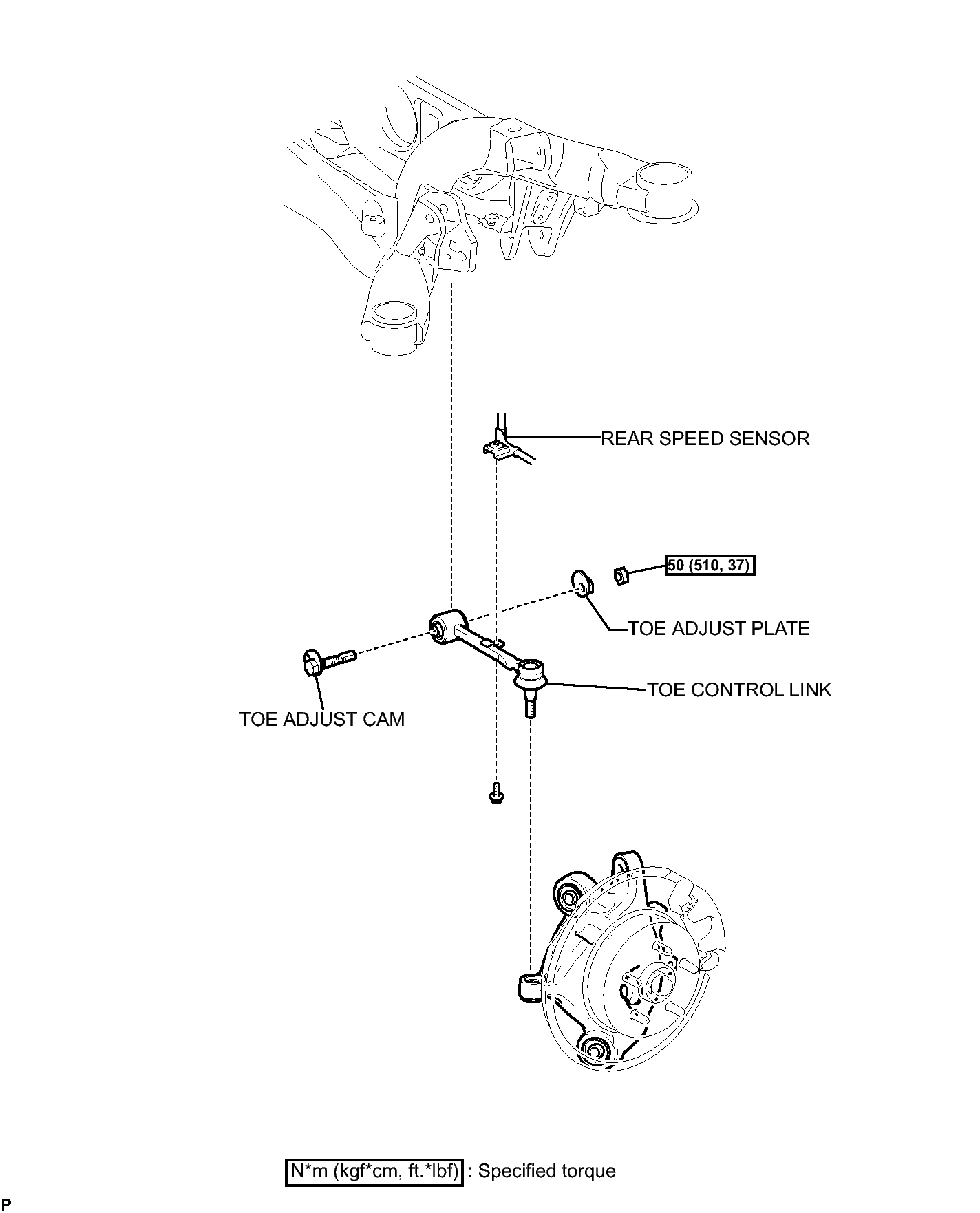

Fig 1: Toe Control Link Replacement Components With Torque Specifications
GTY121223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
