Engine Unit: Components: Illustration

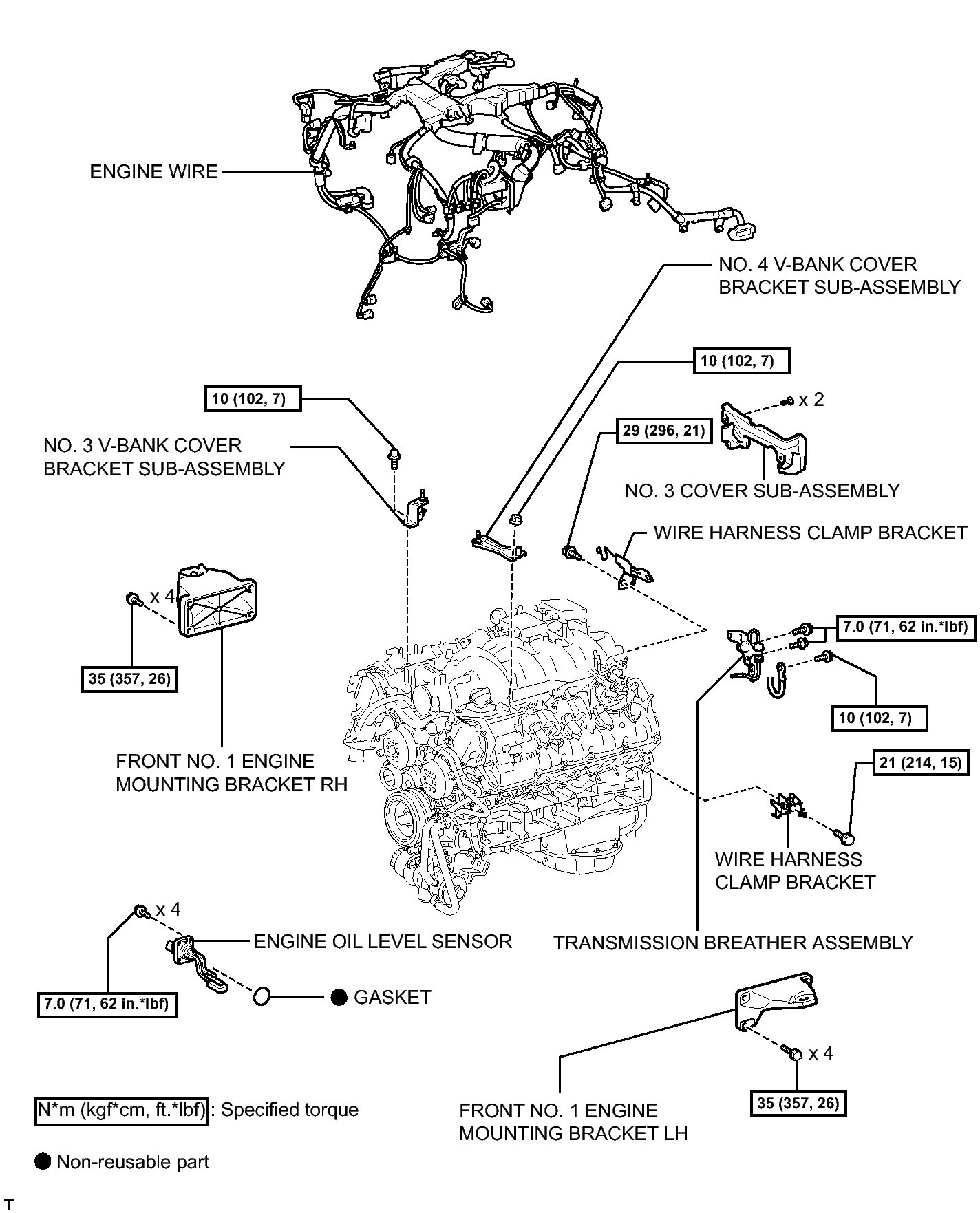

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (1 Of 15)
GTY148919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

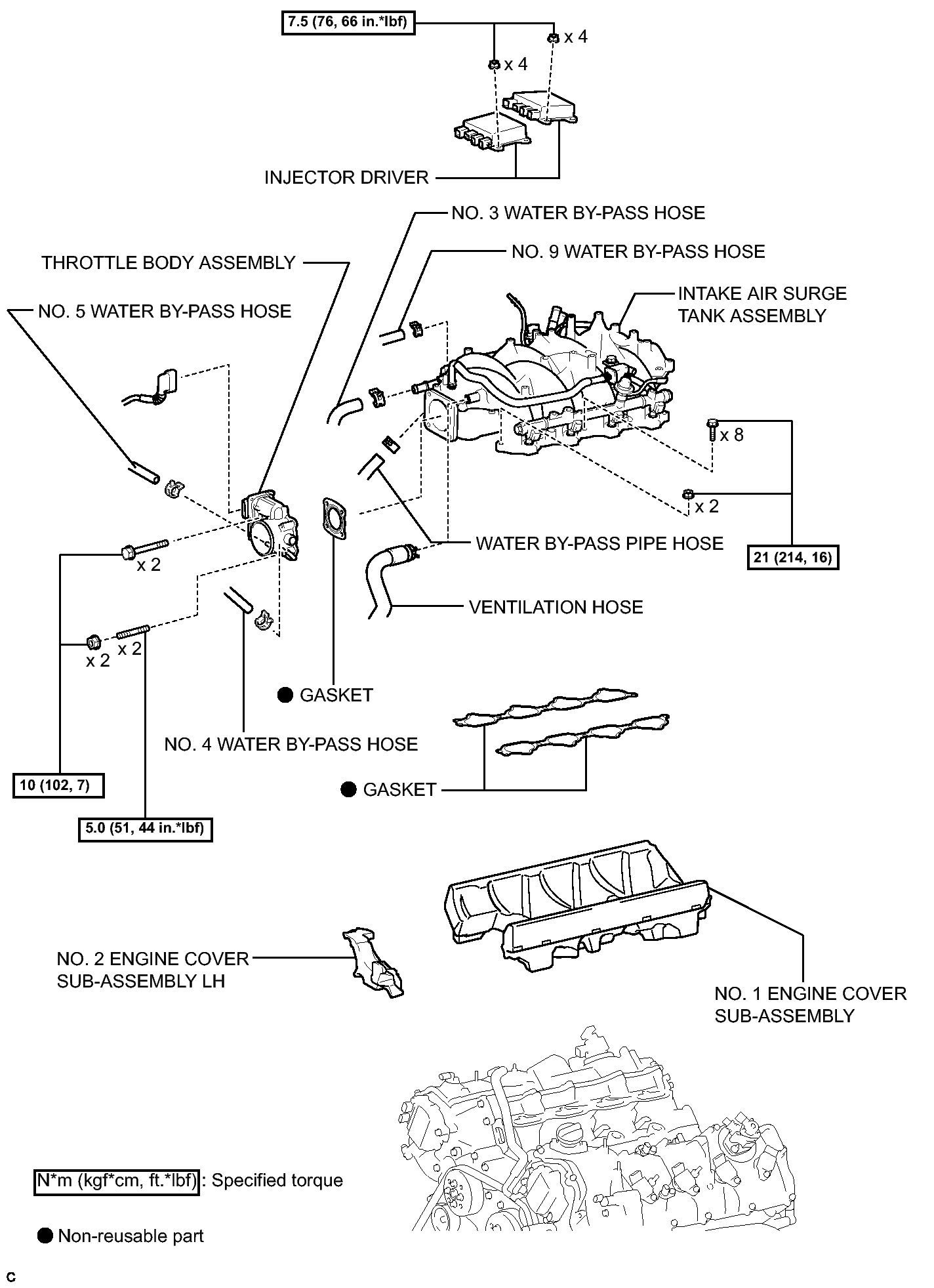

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (2 Of 15)
GTY121020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

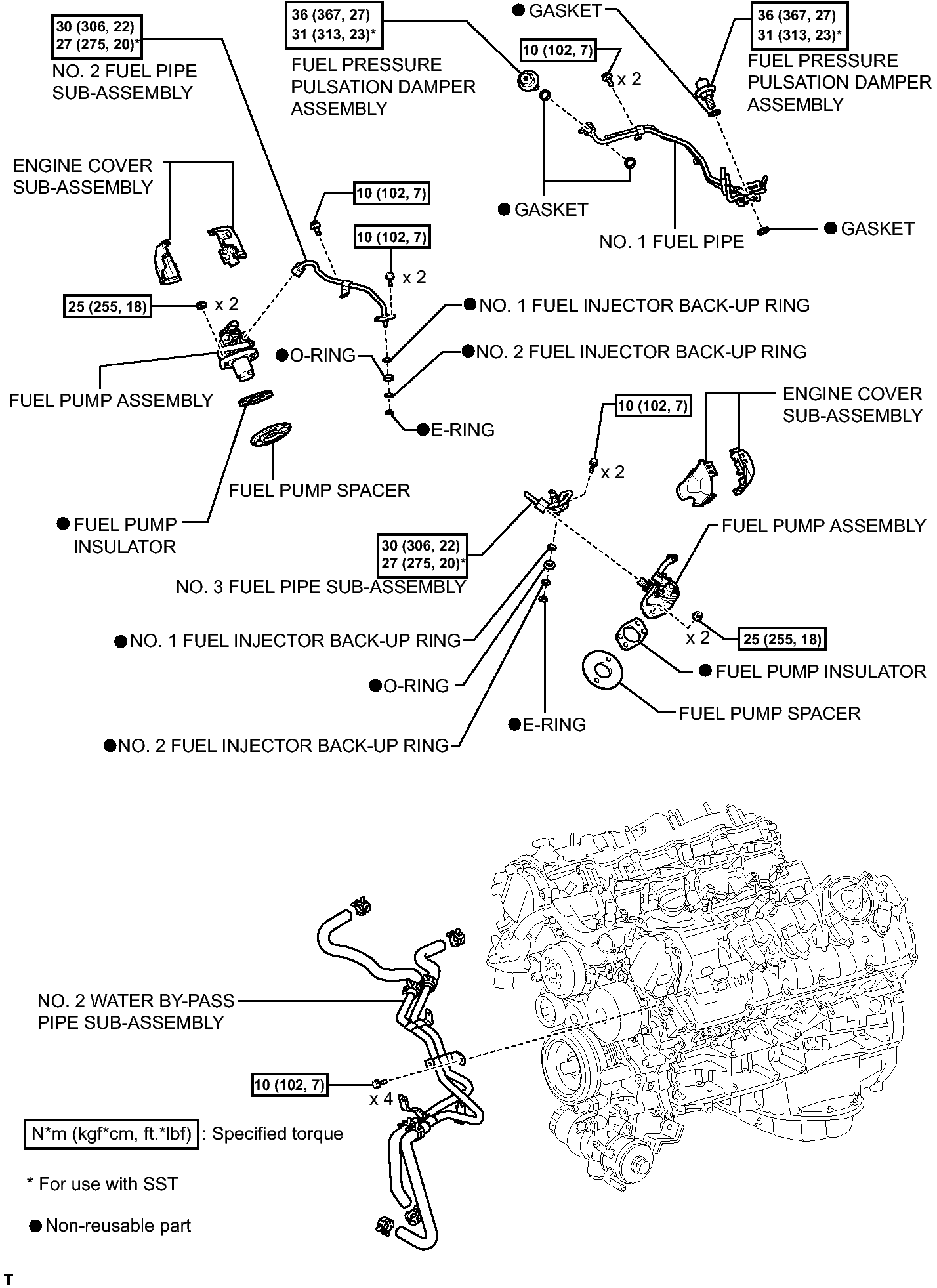

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (3 Of 15)
GTY354246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

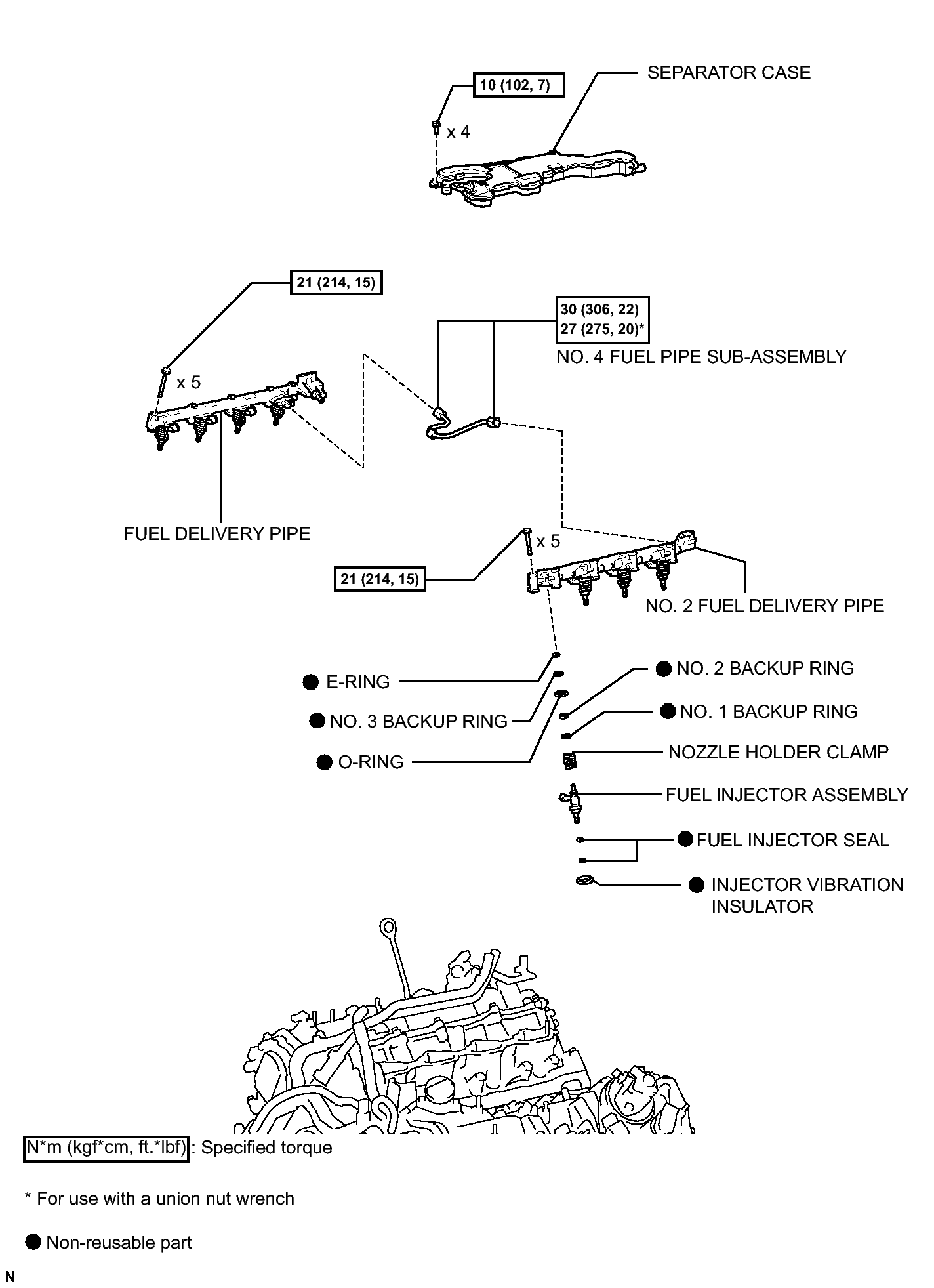

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (4 Of 15)
GTY142368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

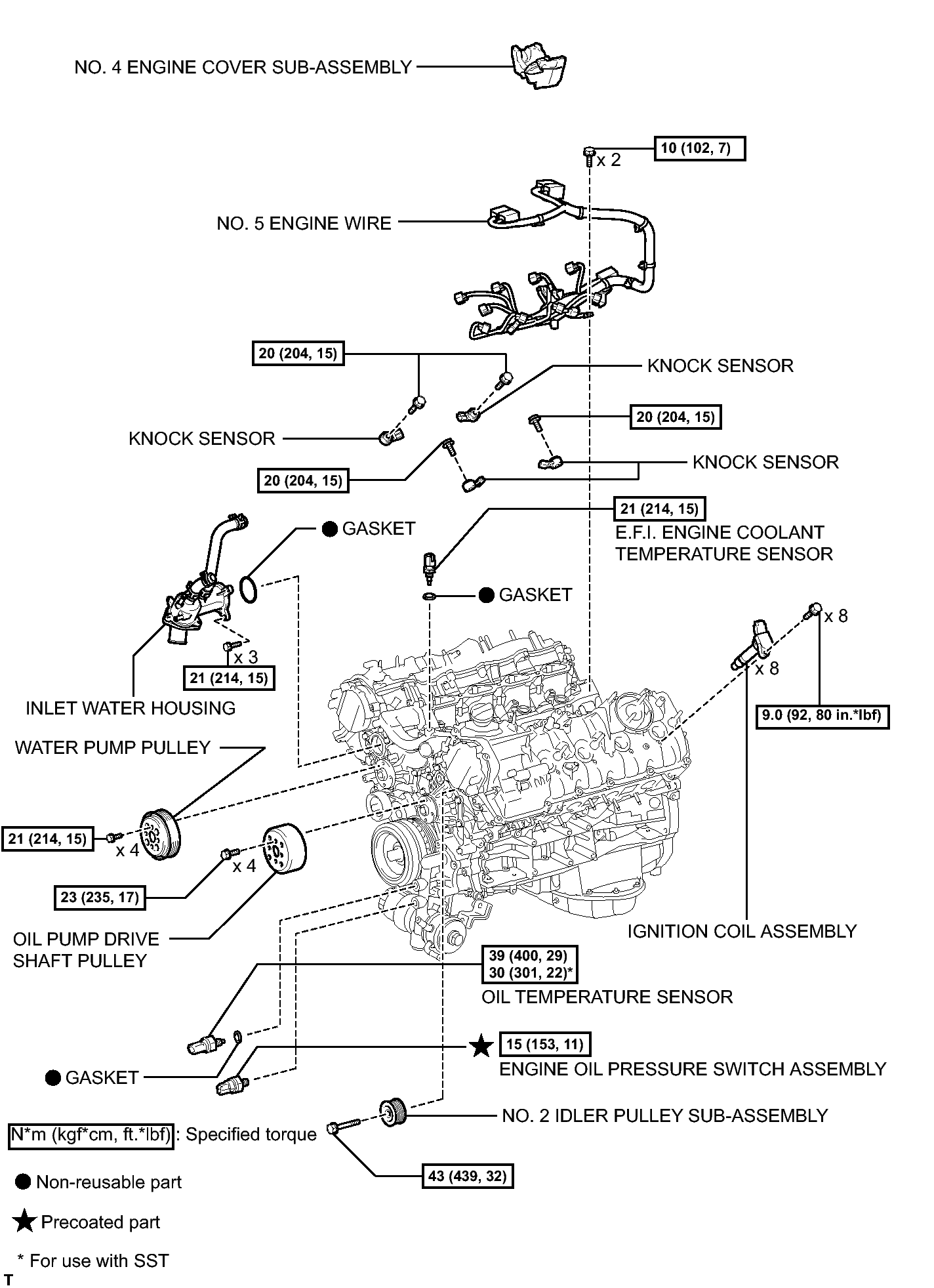

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (5 Of 15)
GTY141365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

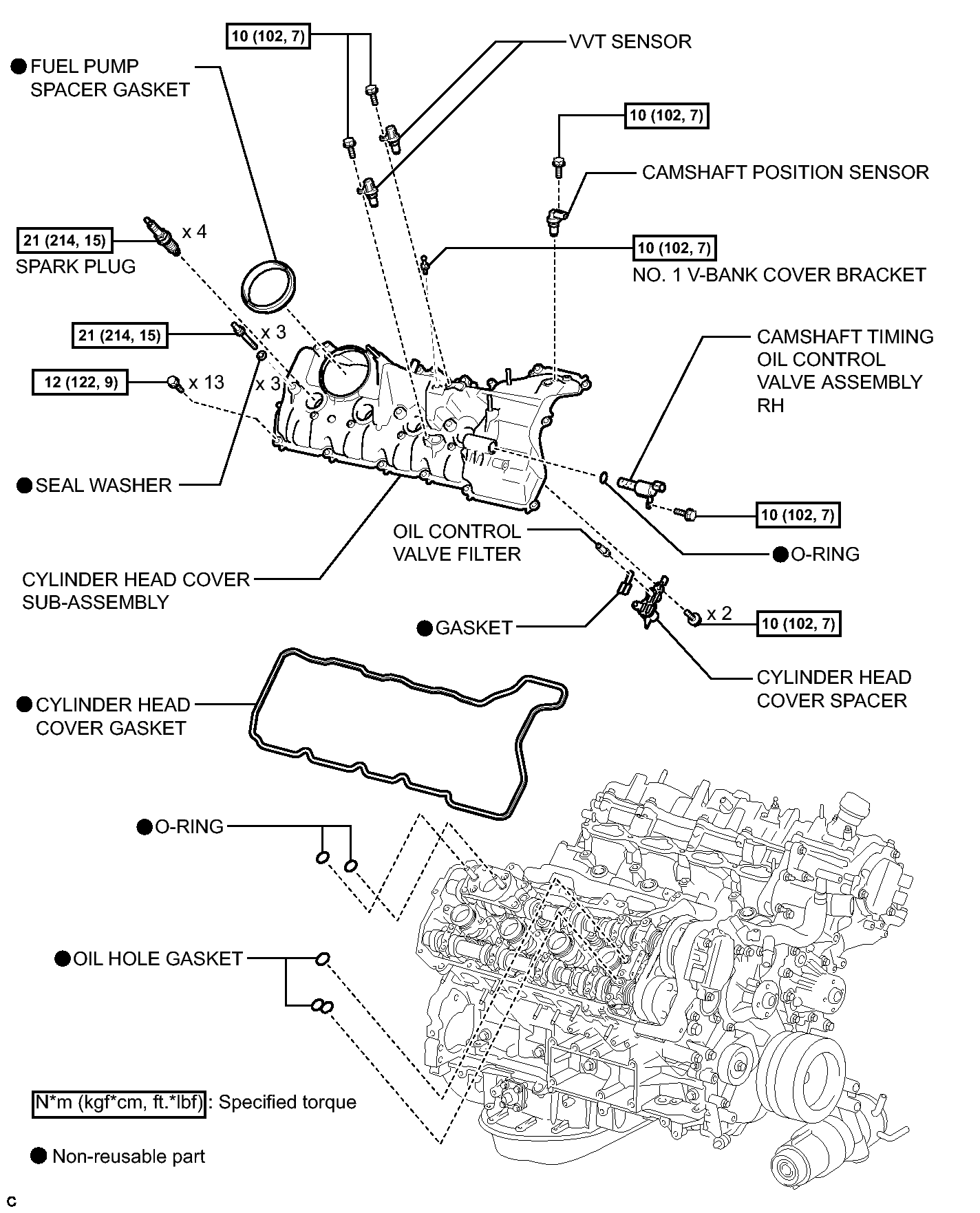

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (6 Of 15)
GTY141818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

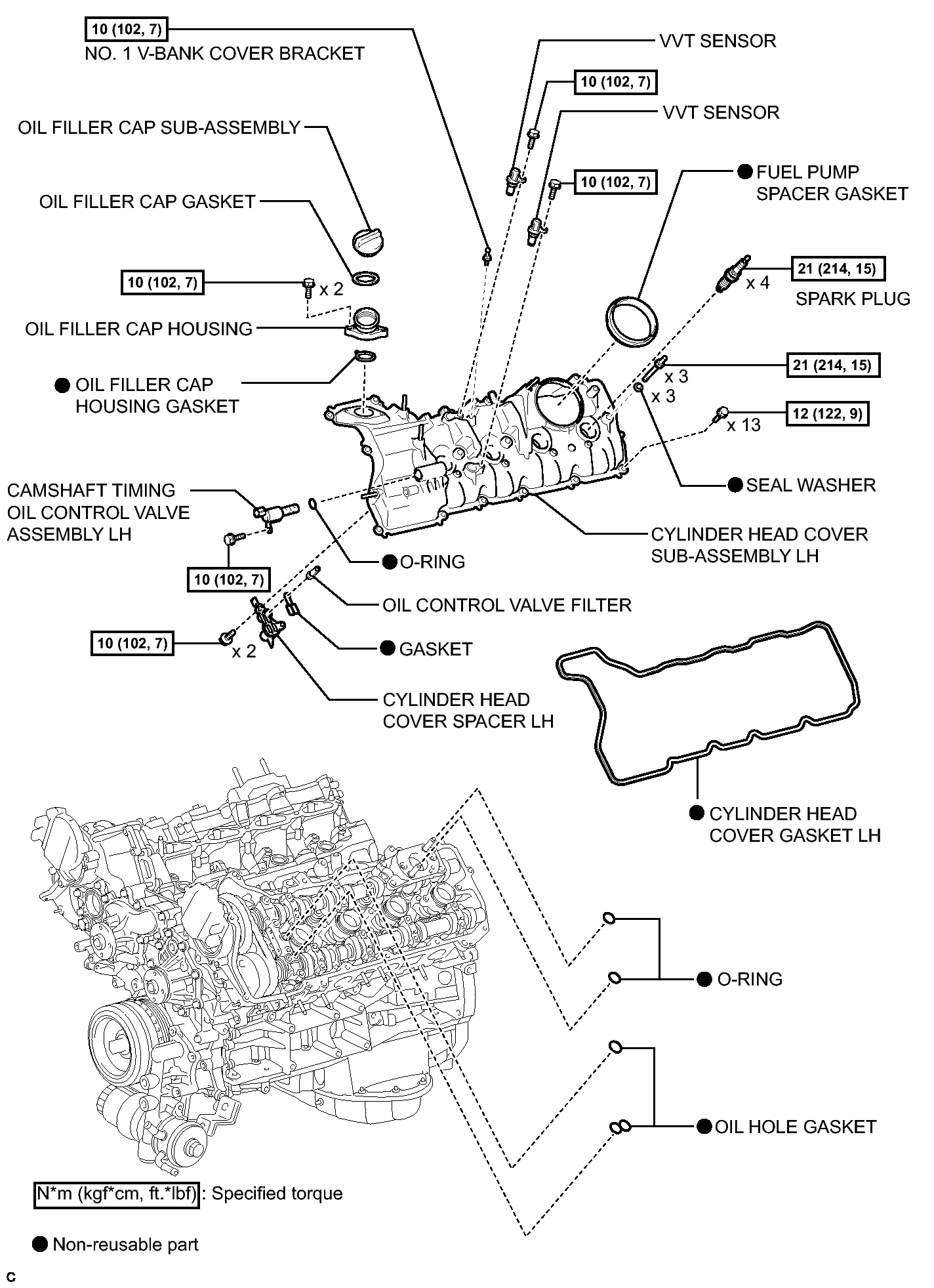

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (7 Of 15)
GTY148782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

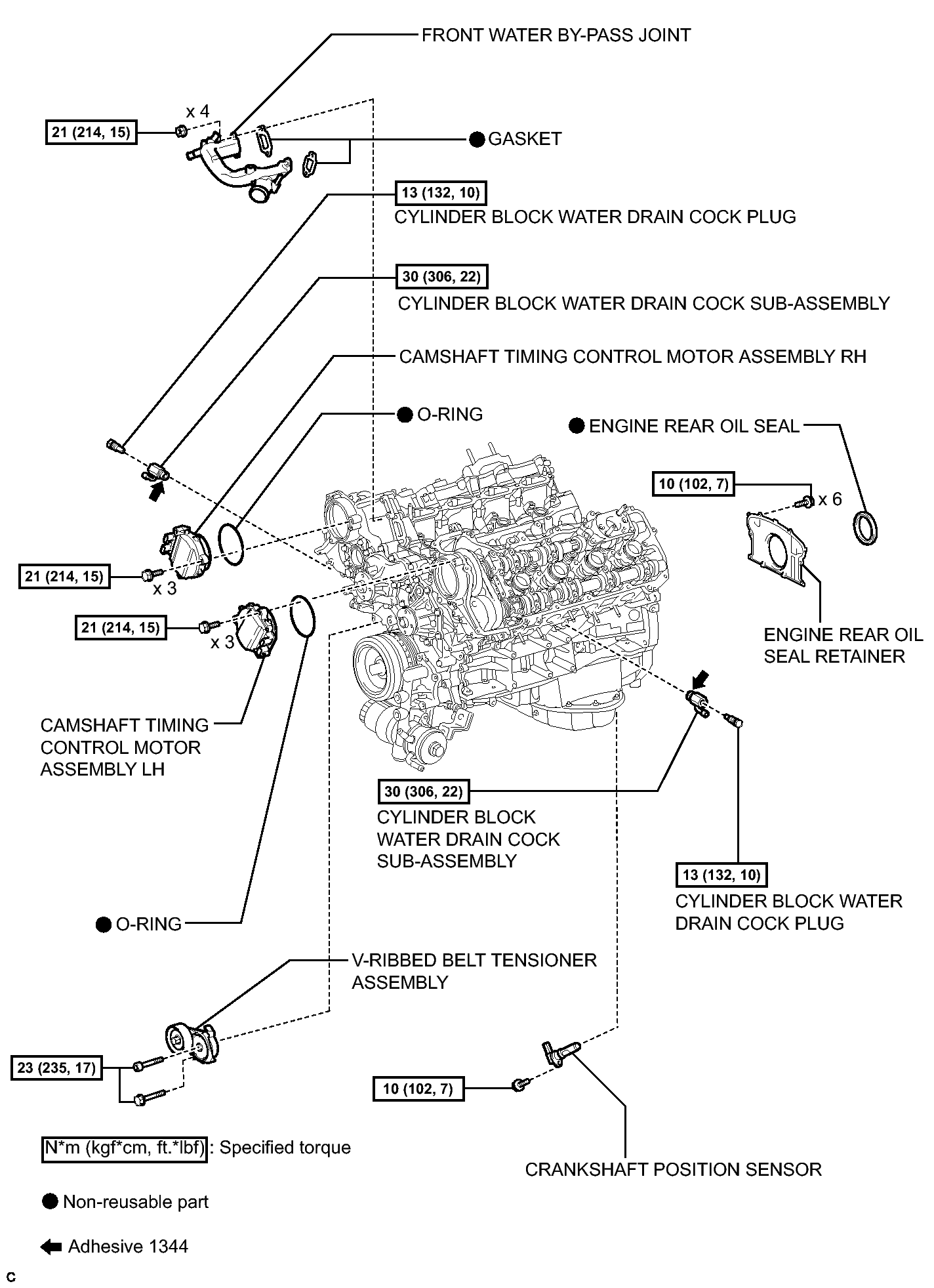

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (8 Of 15)
GTY148783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

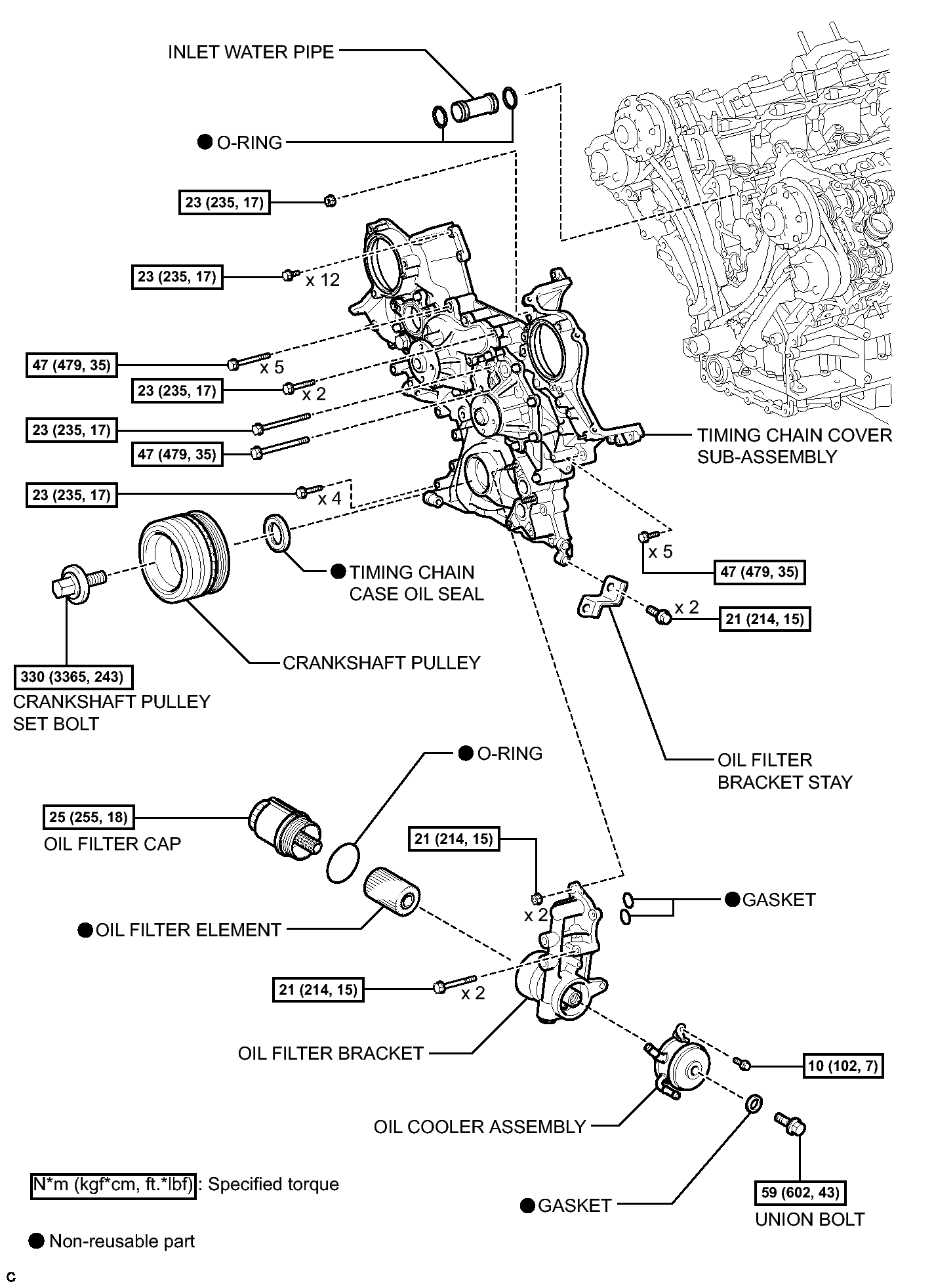

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (9 Of 15)
GTY148784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

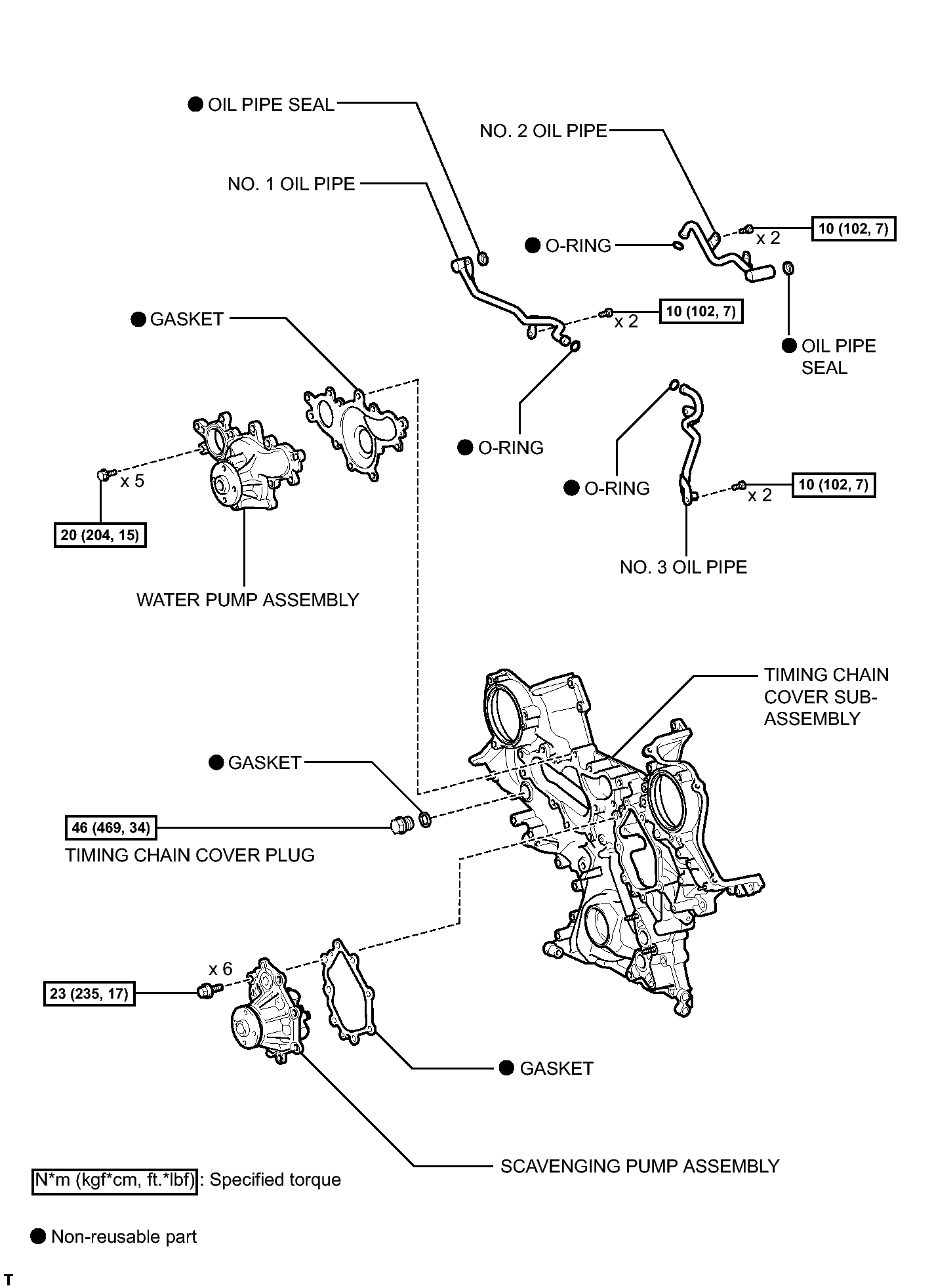

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (10 Of 15)
GTY148940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

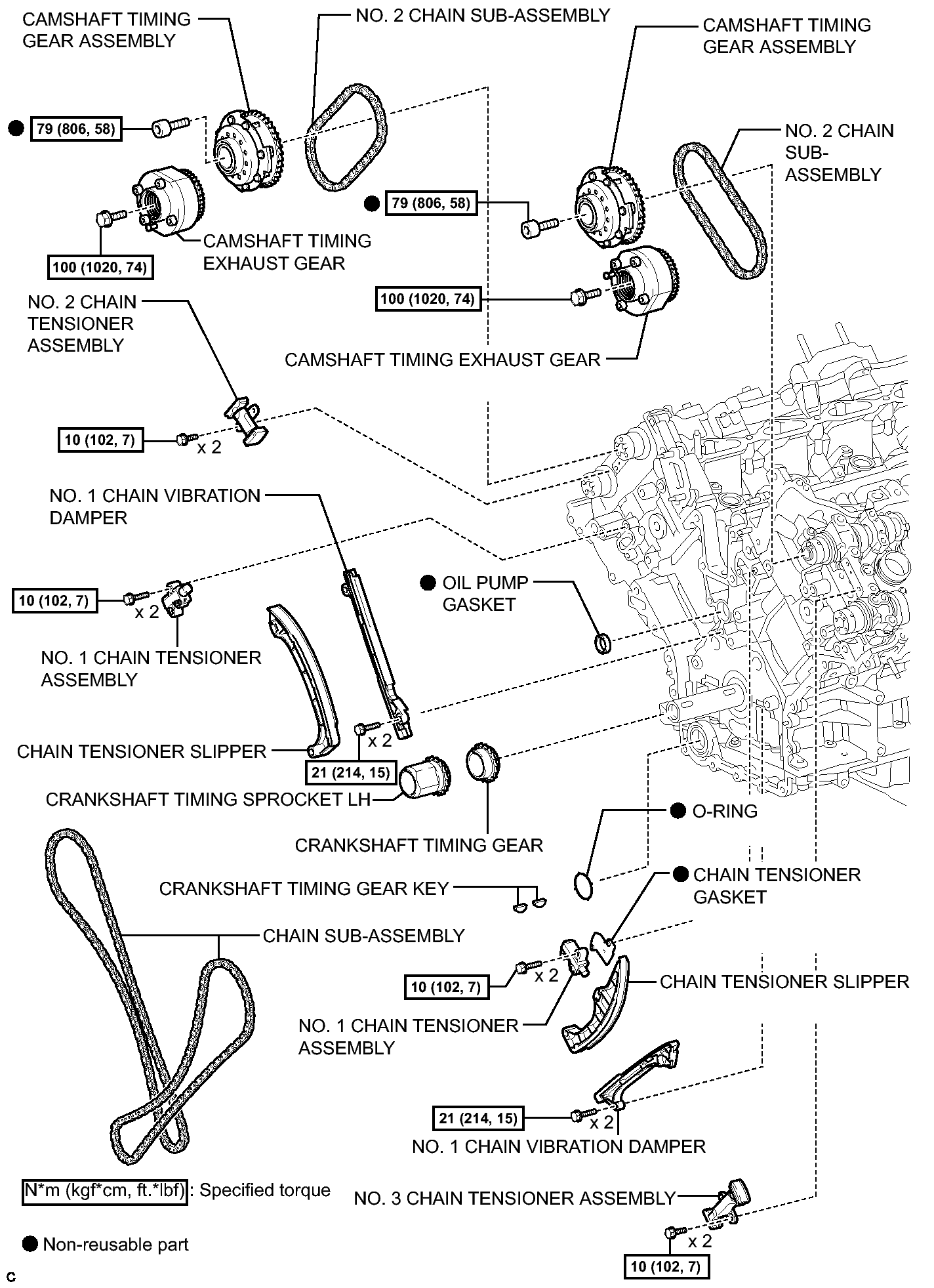

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (11 Of 15)
GTY148785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

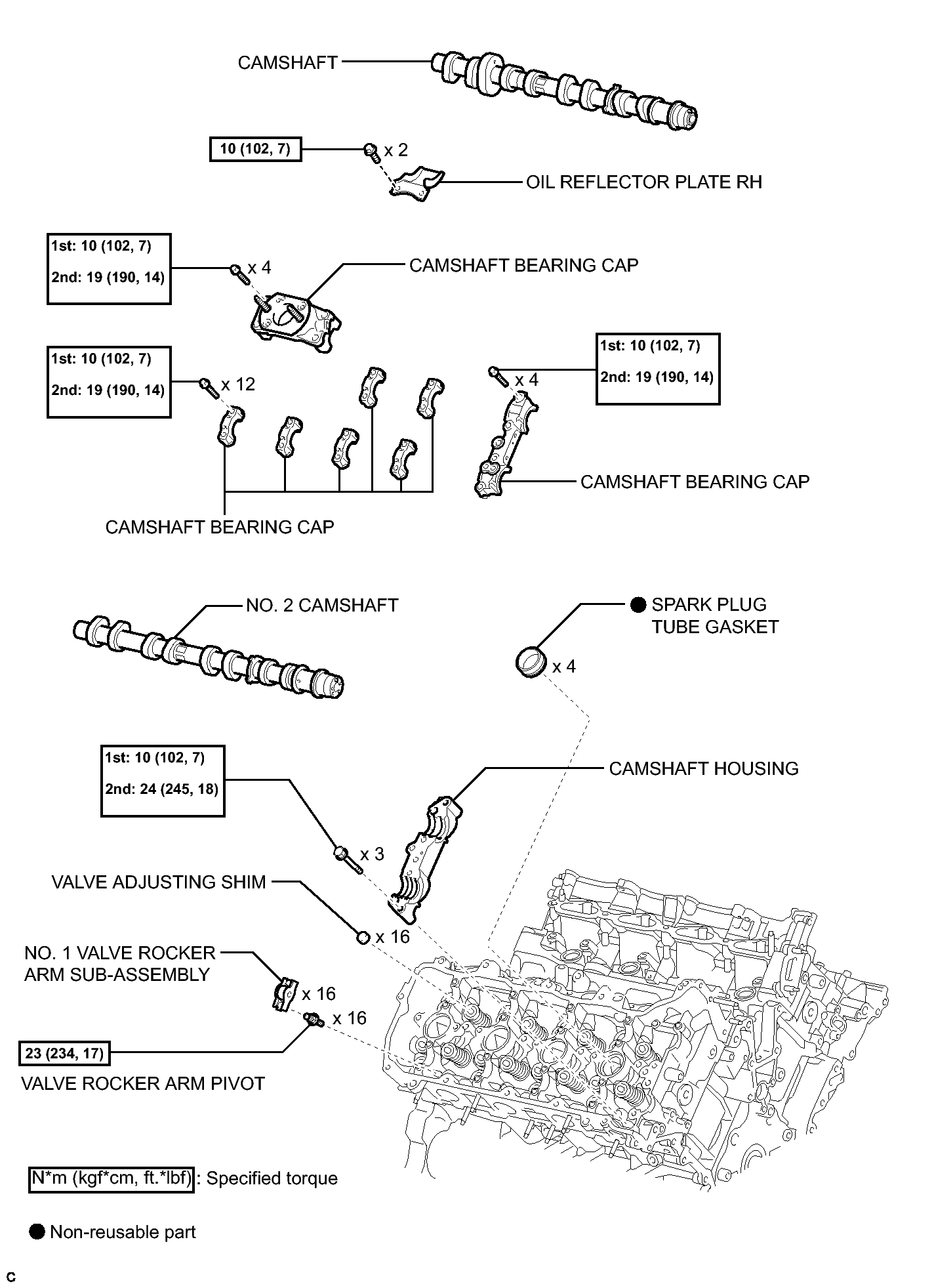

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (12 Of 15)
GTY148786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

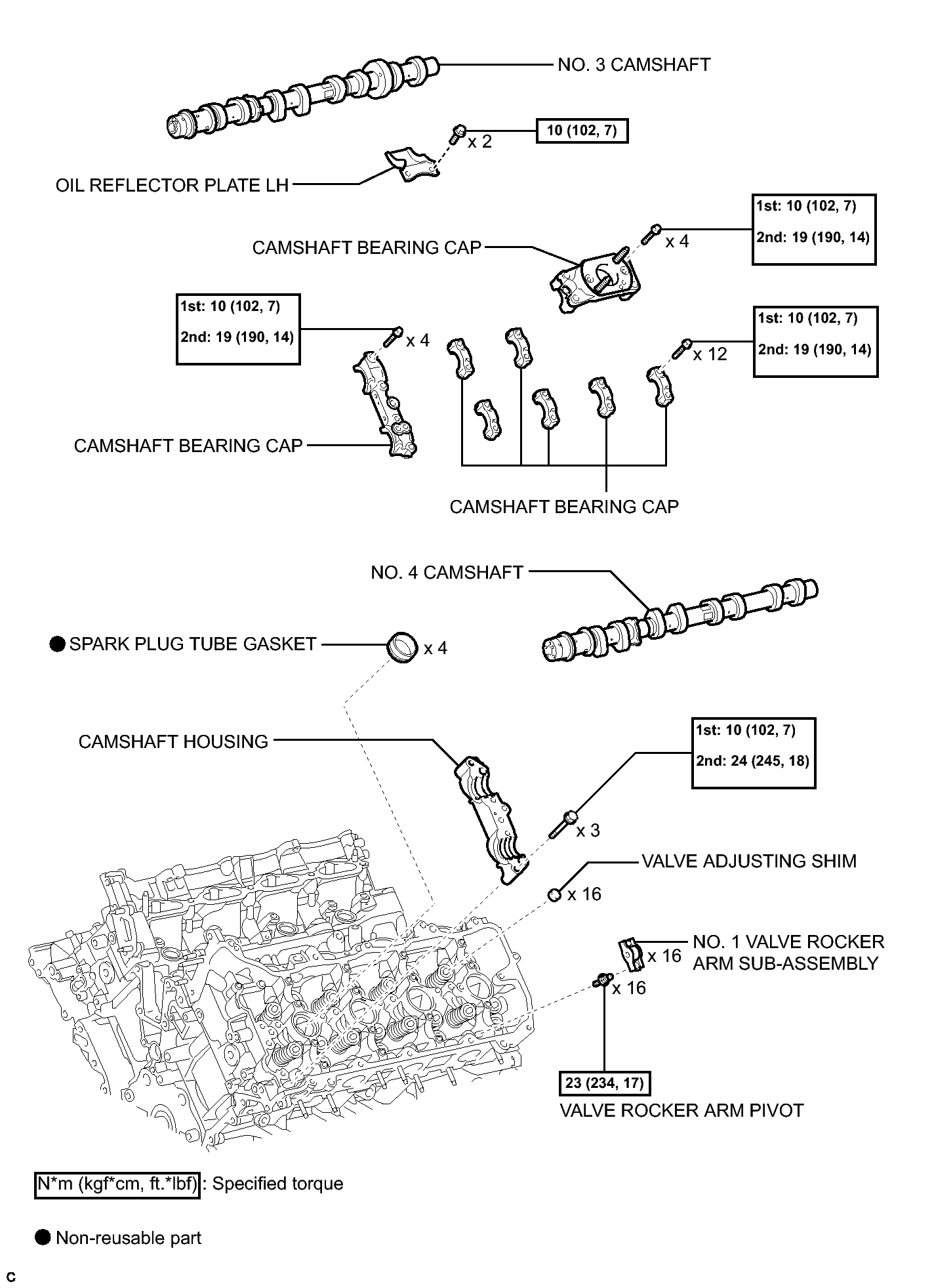

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (13 Of 15)
GTY148787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

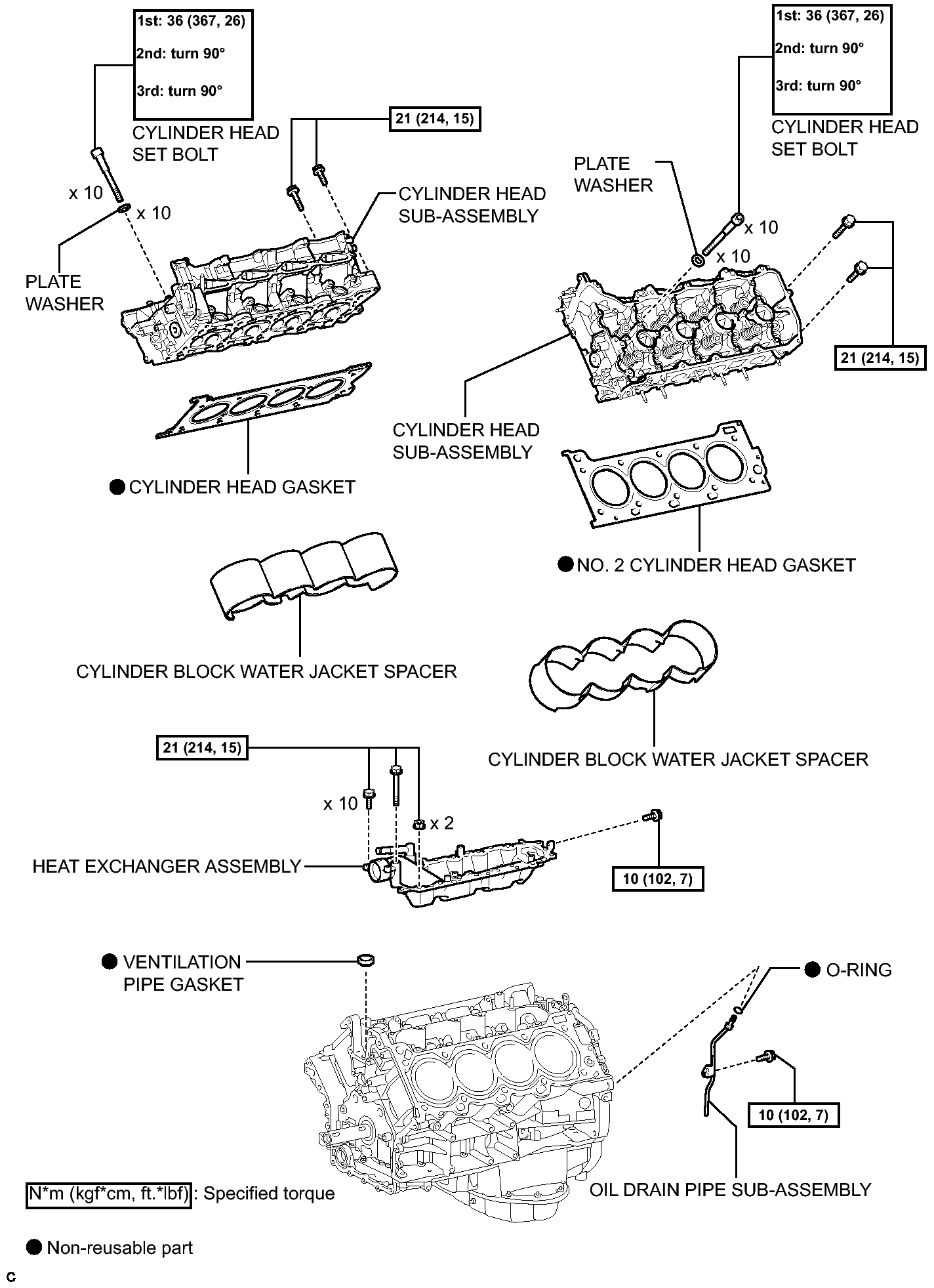

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (14 Of 15)
GTY350544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

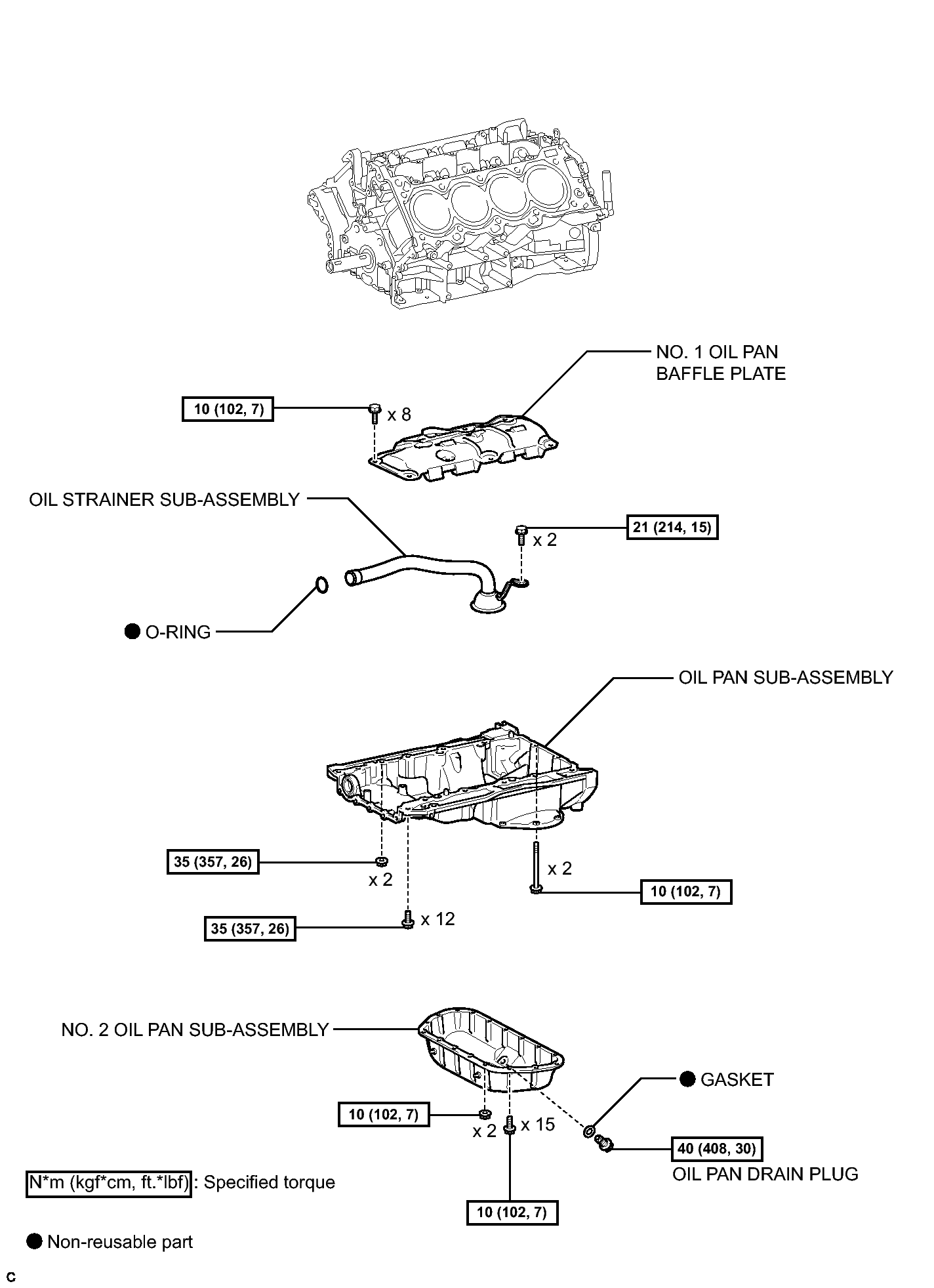

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (15 Of 15)
GTY148789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
