Entertainment System Control Module: Locations

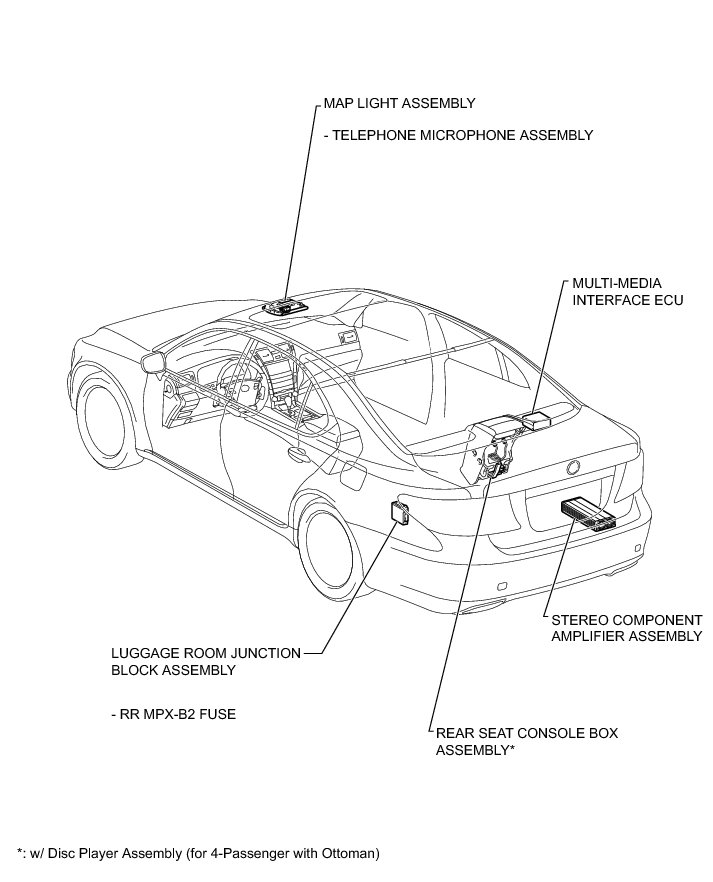

AUDIO / VISUAL: ELECTRO MULTI VISION SYSTEM: PARTS LOCATION
