Fuse Block

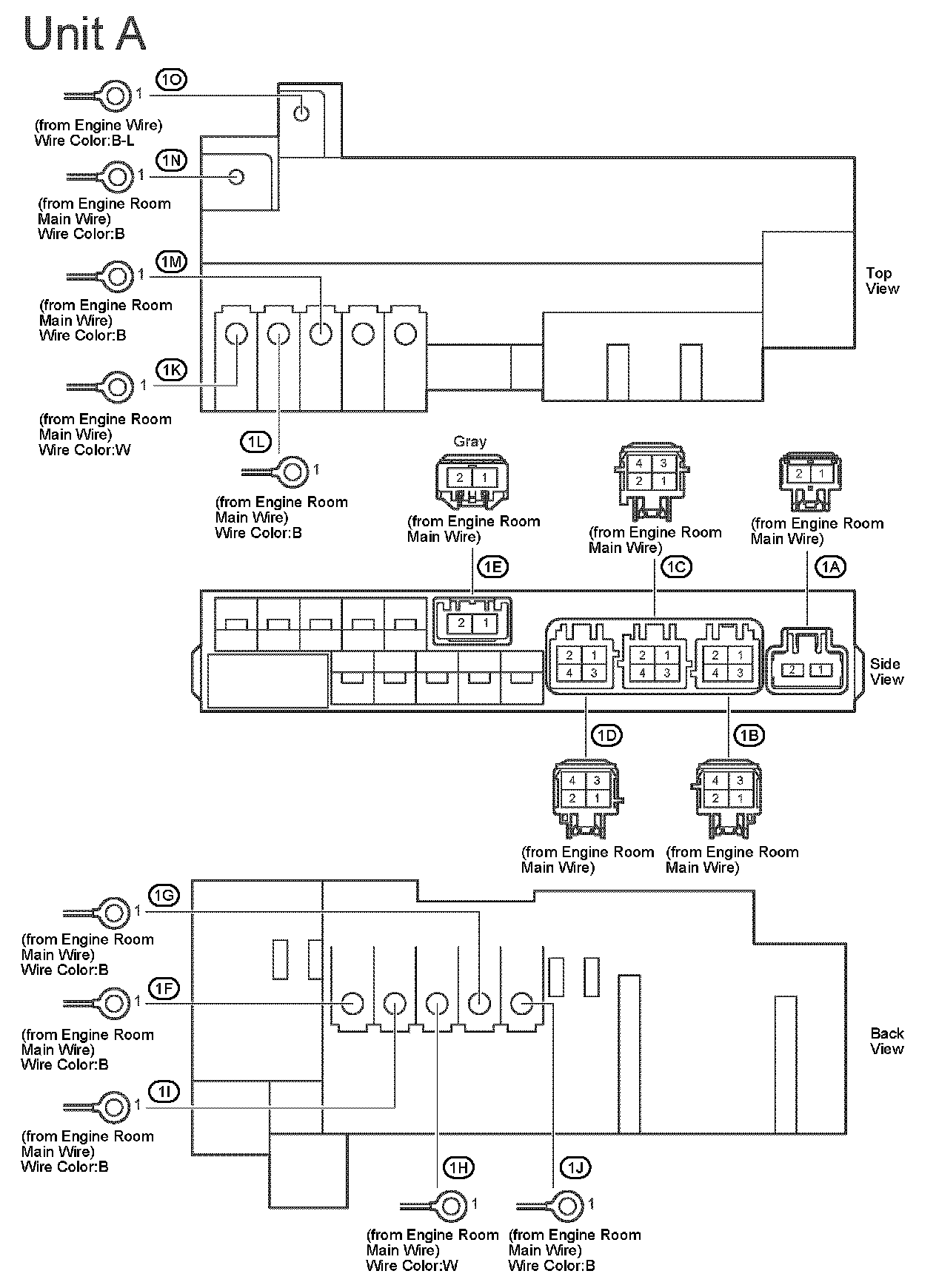

Engine Room R/B, J/B No.1 - Engine Compartment Right:

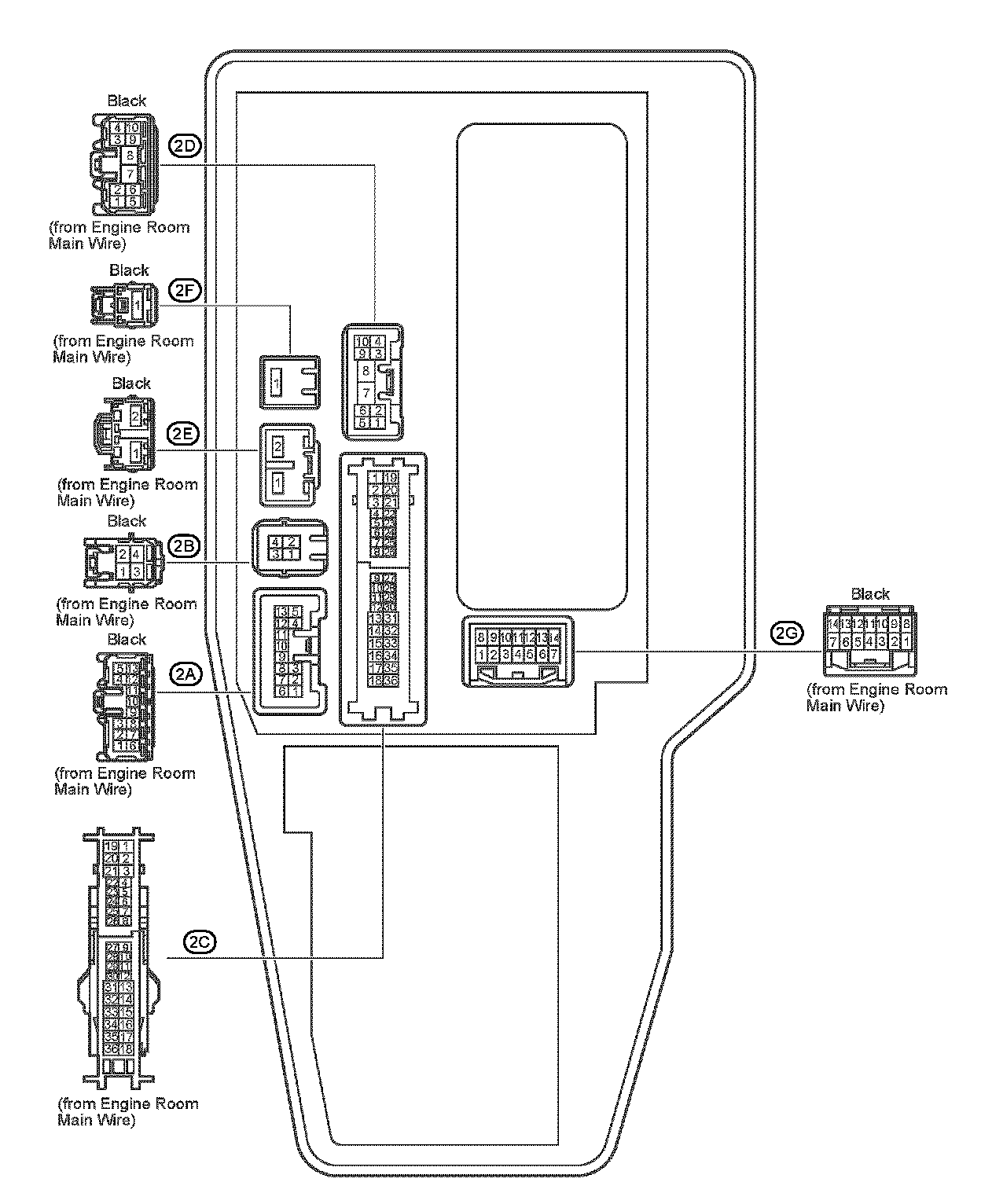

Engine Room R/B, J/B No.2 - Engine Compartment Right:

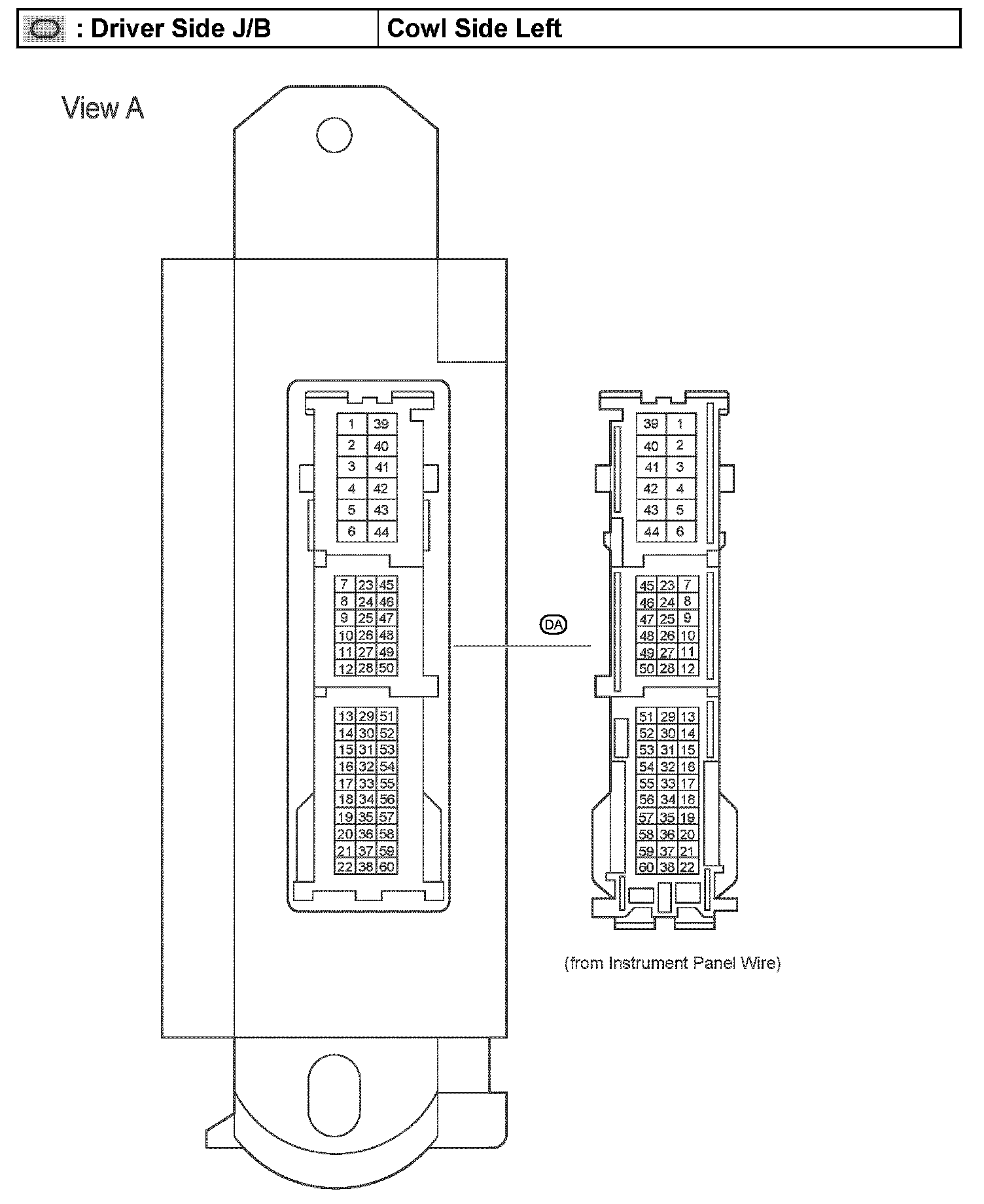

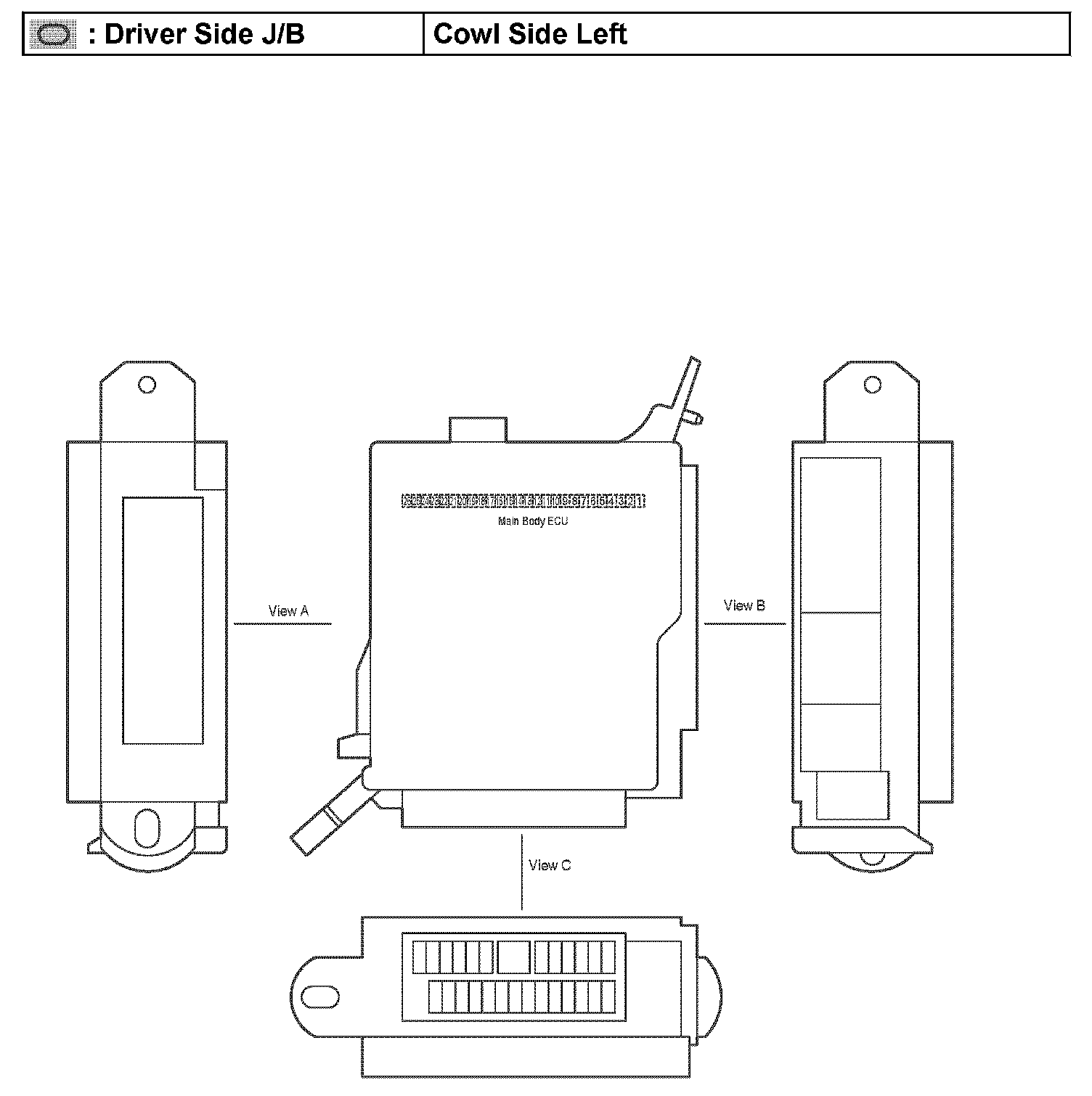

Driver Side J/B - Cowl Side Left:

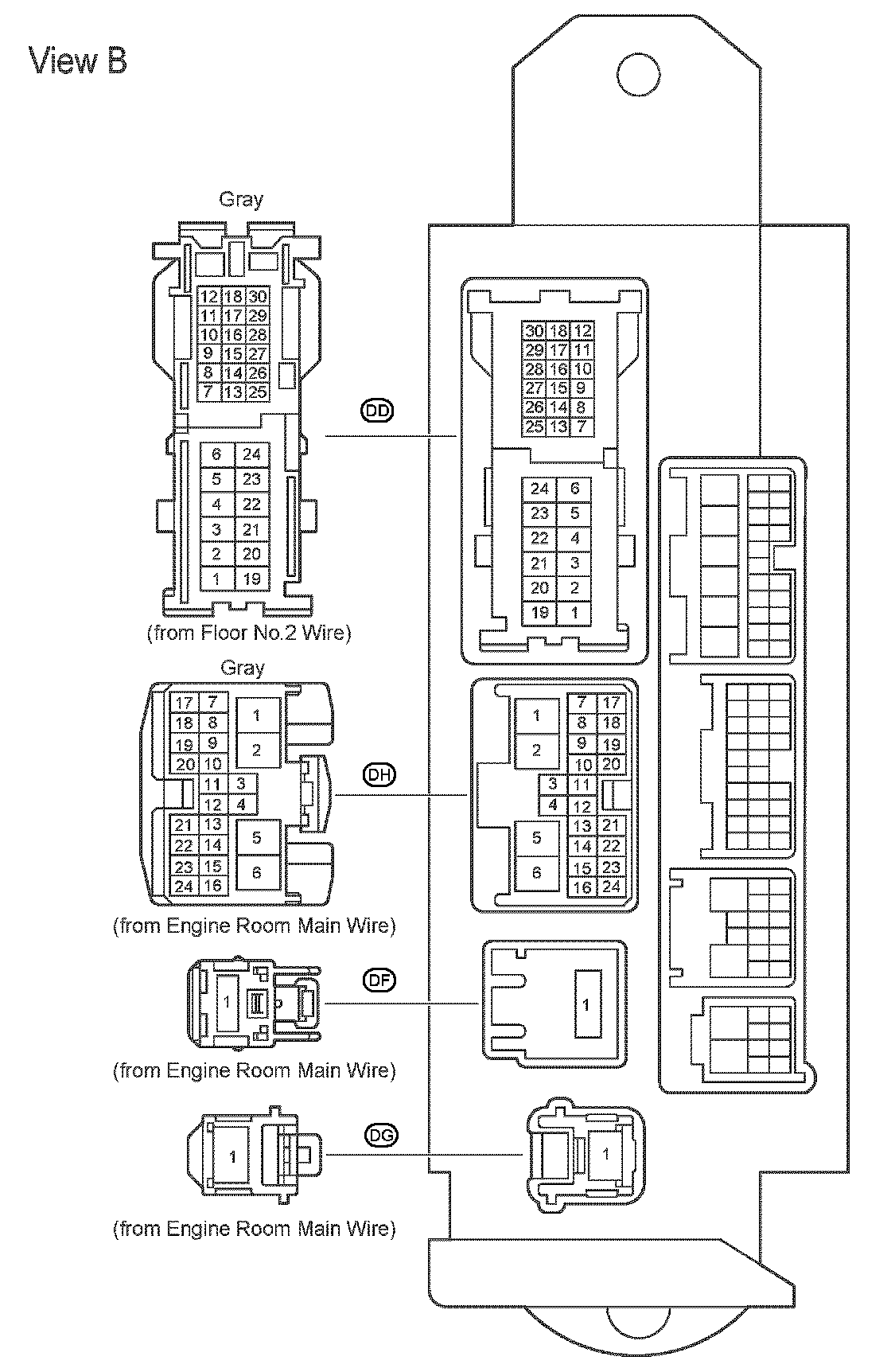

Driver Side J/B - Cowl Side Left:

Driver Side J/B - Cowl Side Left:

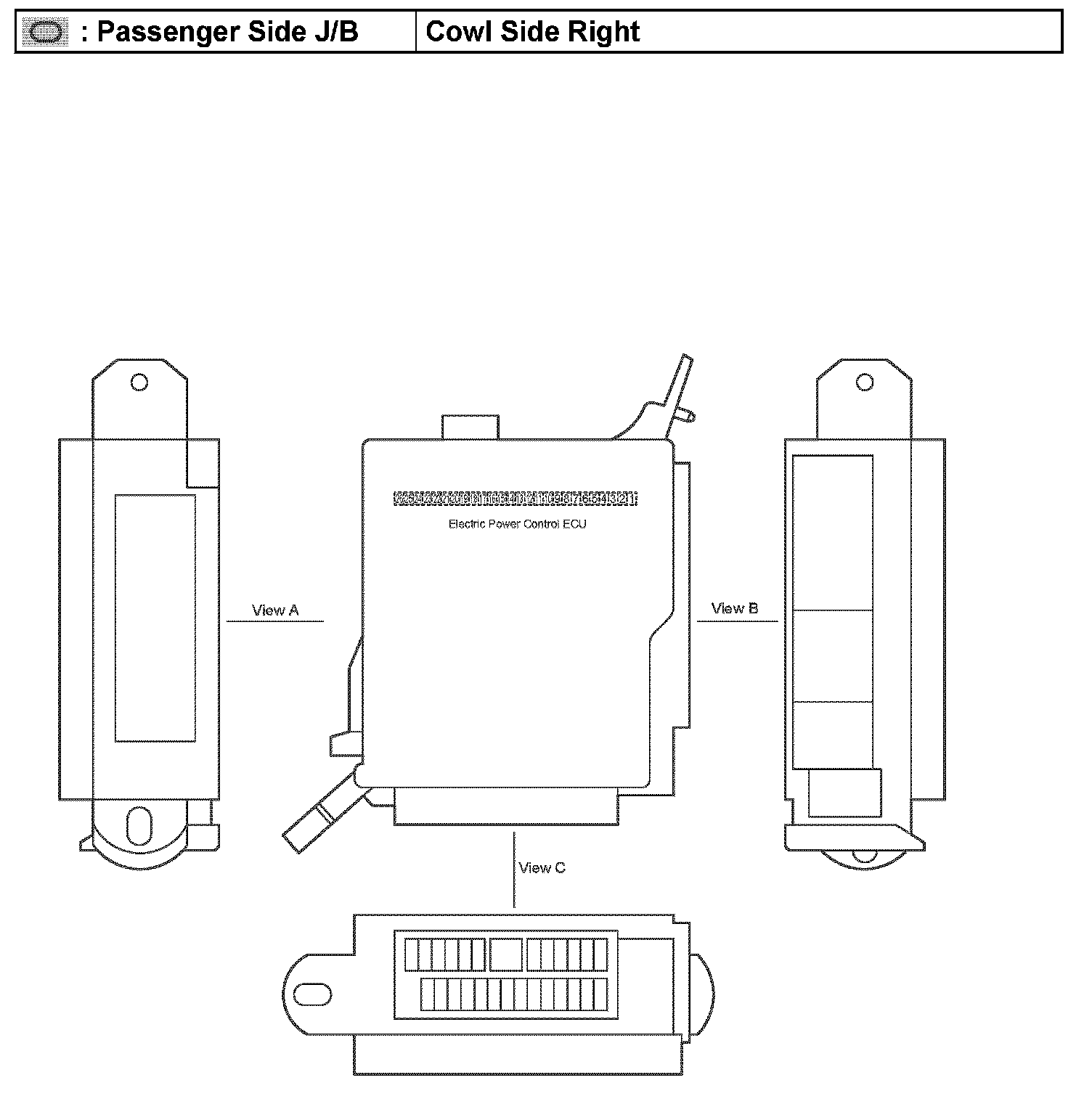

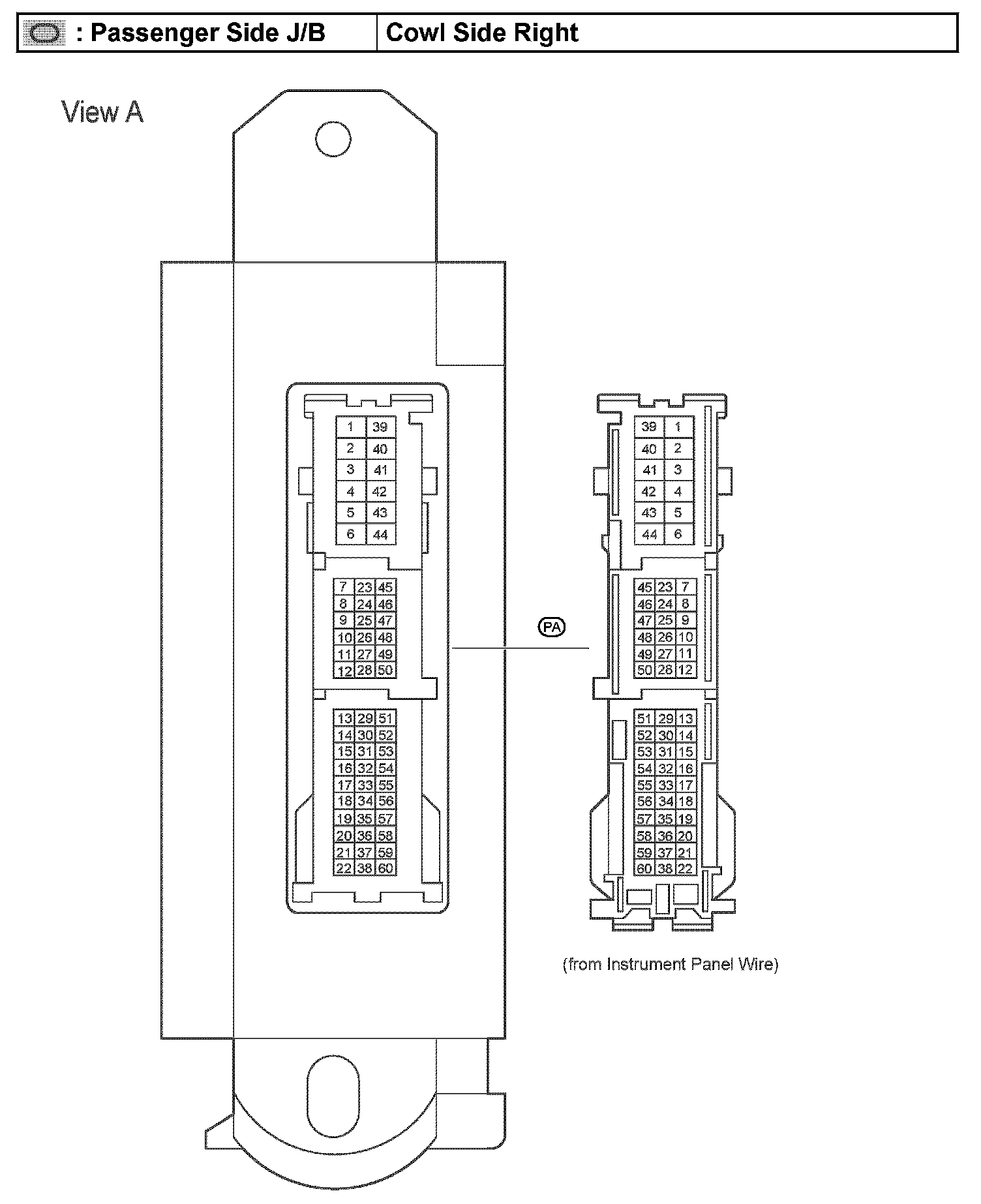

Passenger Side J/B - Cowl Side Right:

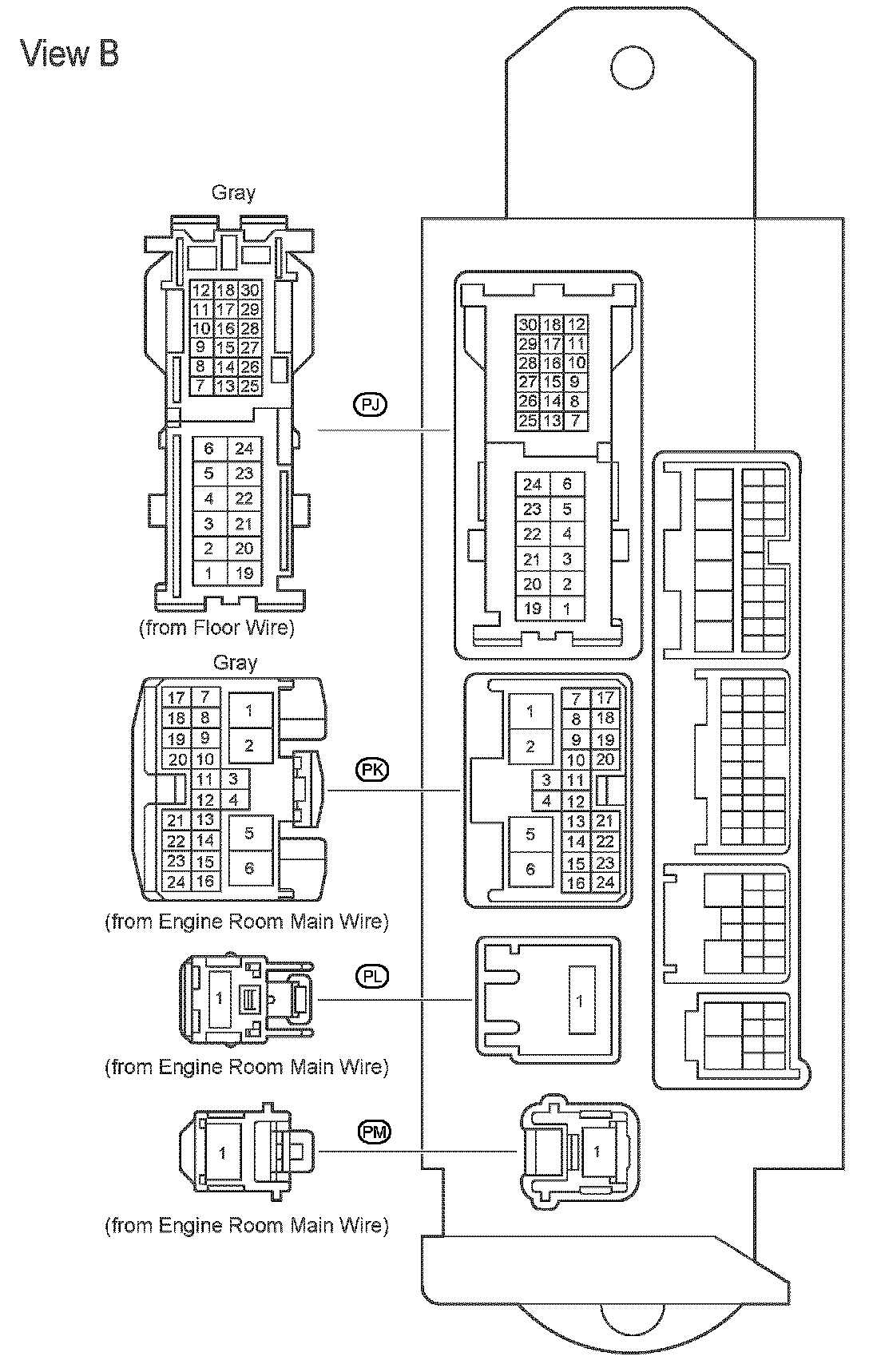

Passenger Side J/B - Cowl Side Right:

Passenger Side J/B - Cowl Side Right:

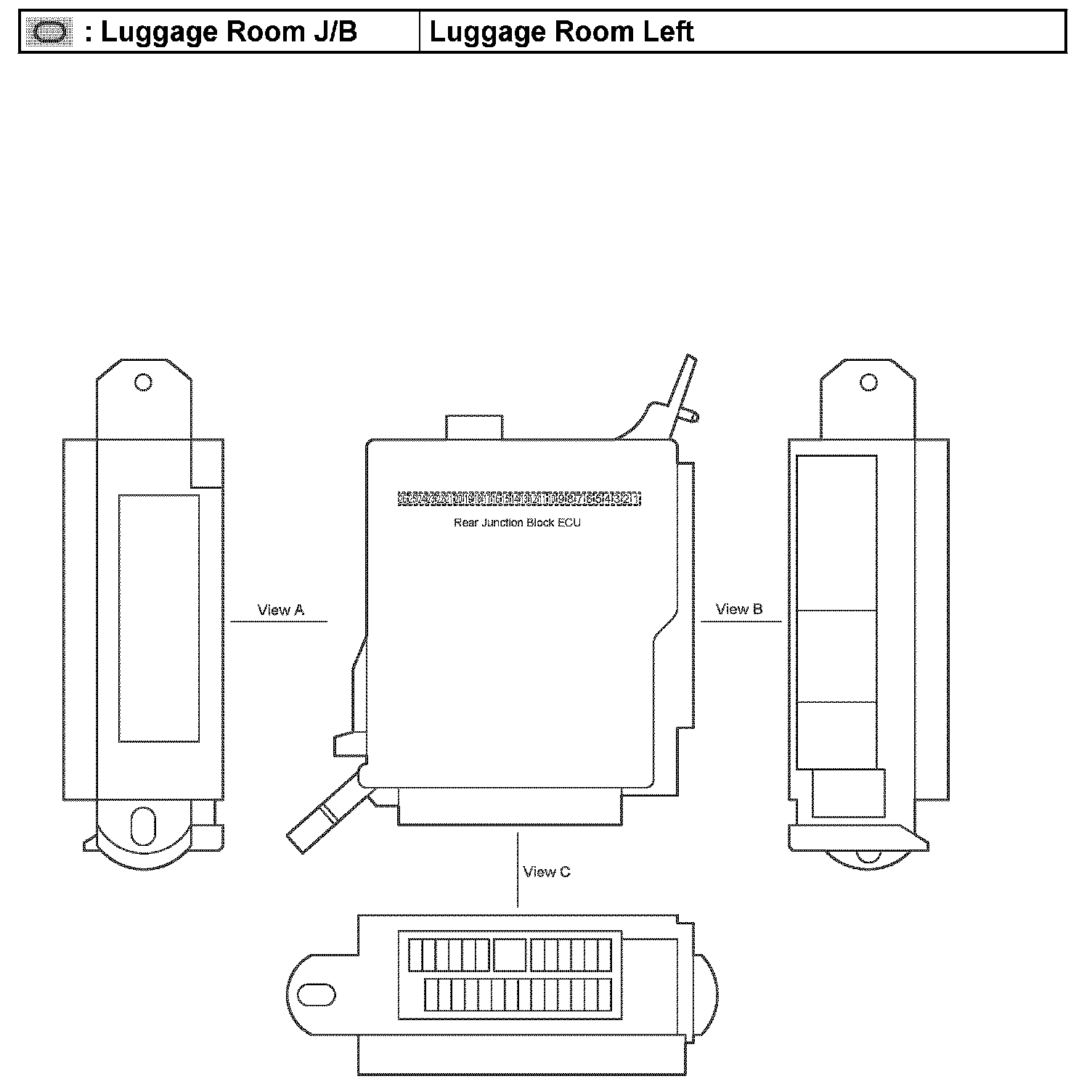

Luggage Room J/B - Luggage Room Left:

Luggage Room J/B - Luggage Room Left:

Luggage Room J/B - Luggage Room Left:

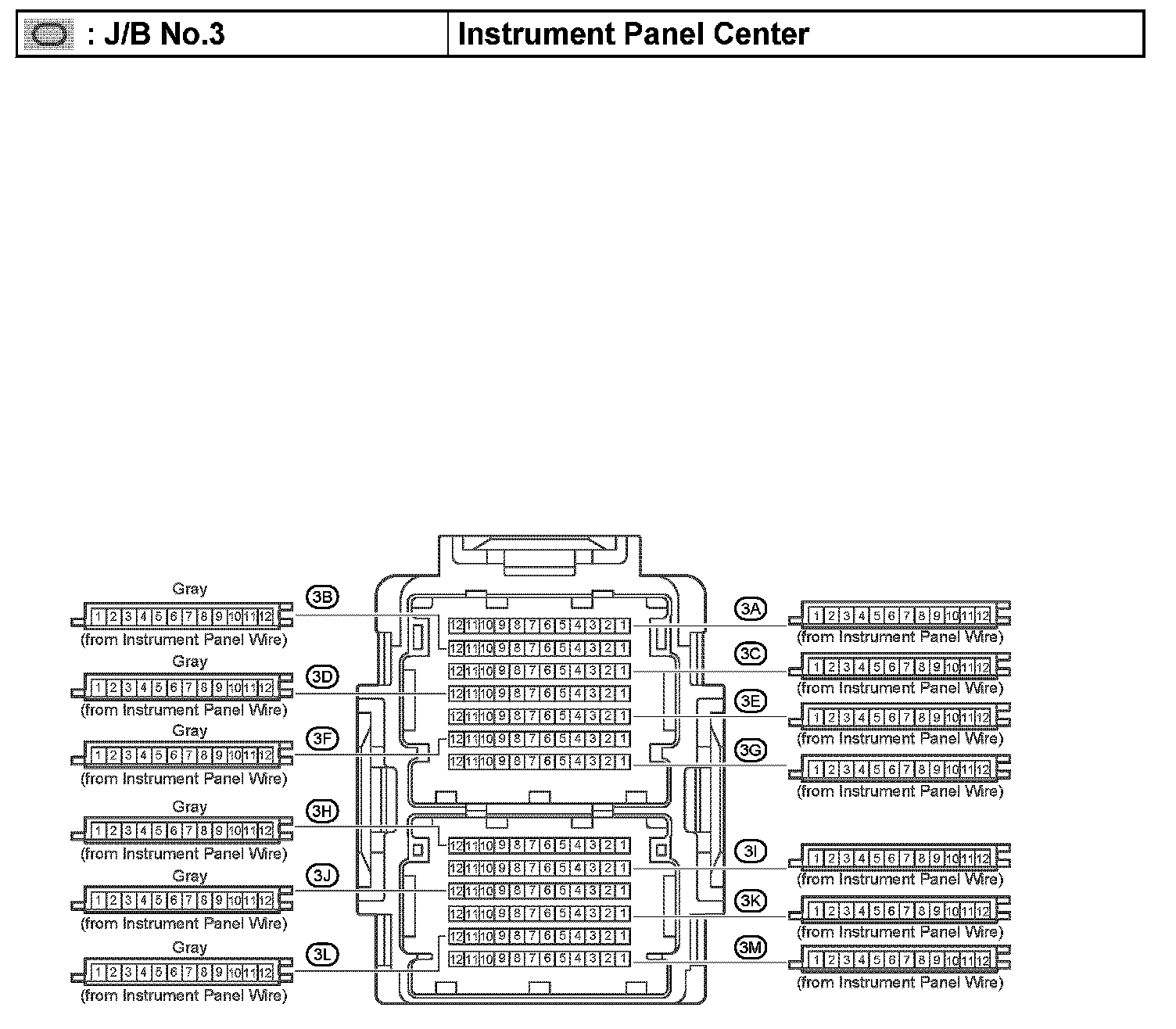

J/B No.3 - Instrument Panel Center:

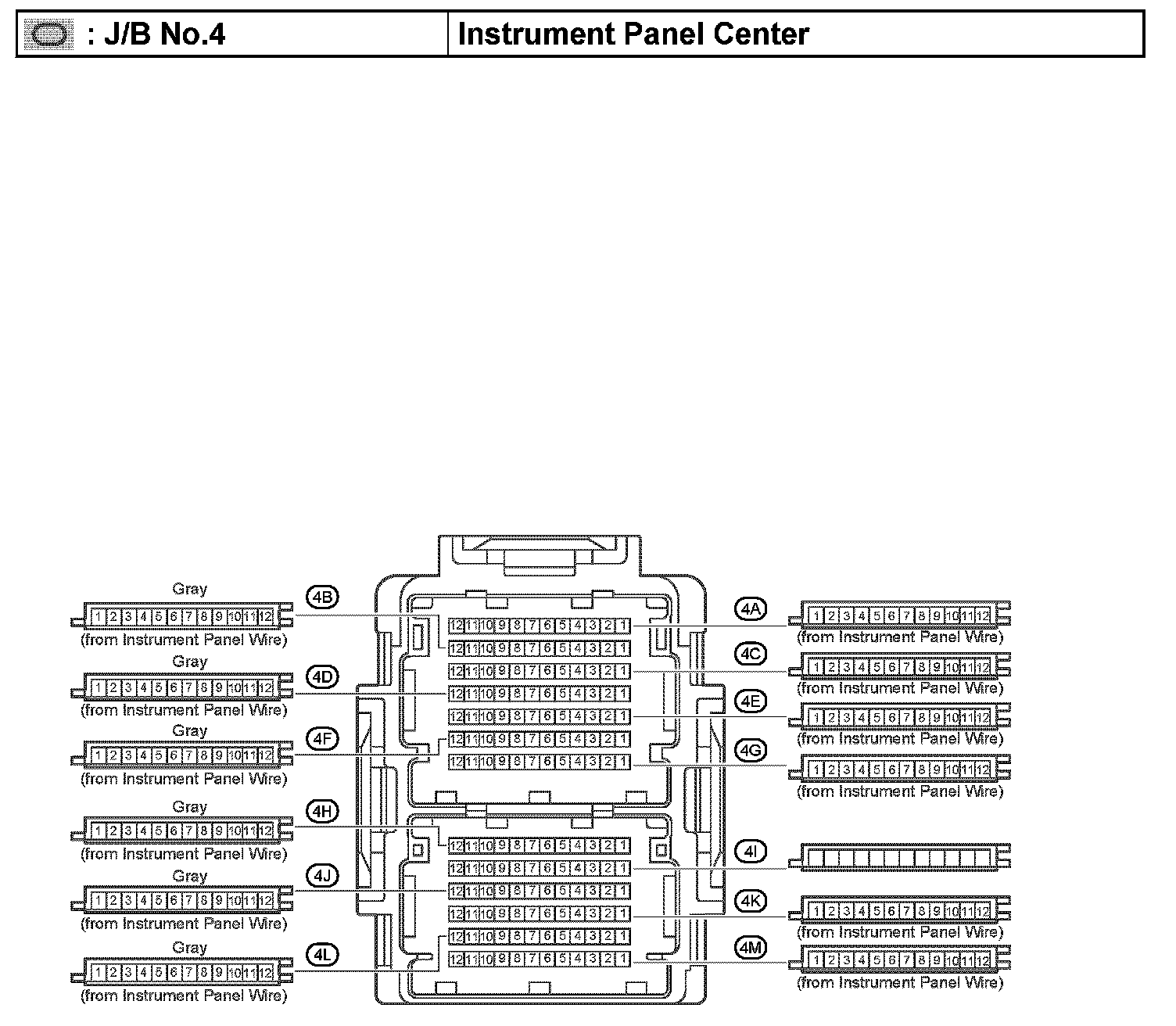

J/B No.4 - Instrument Panel Center:

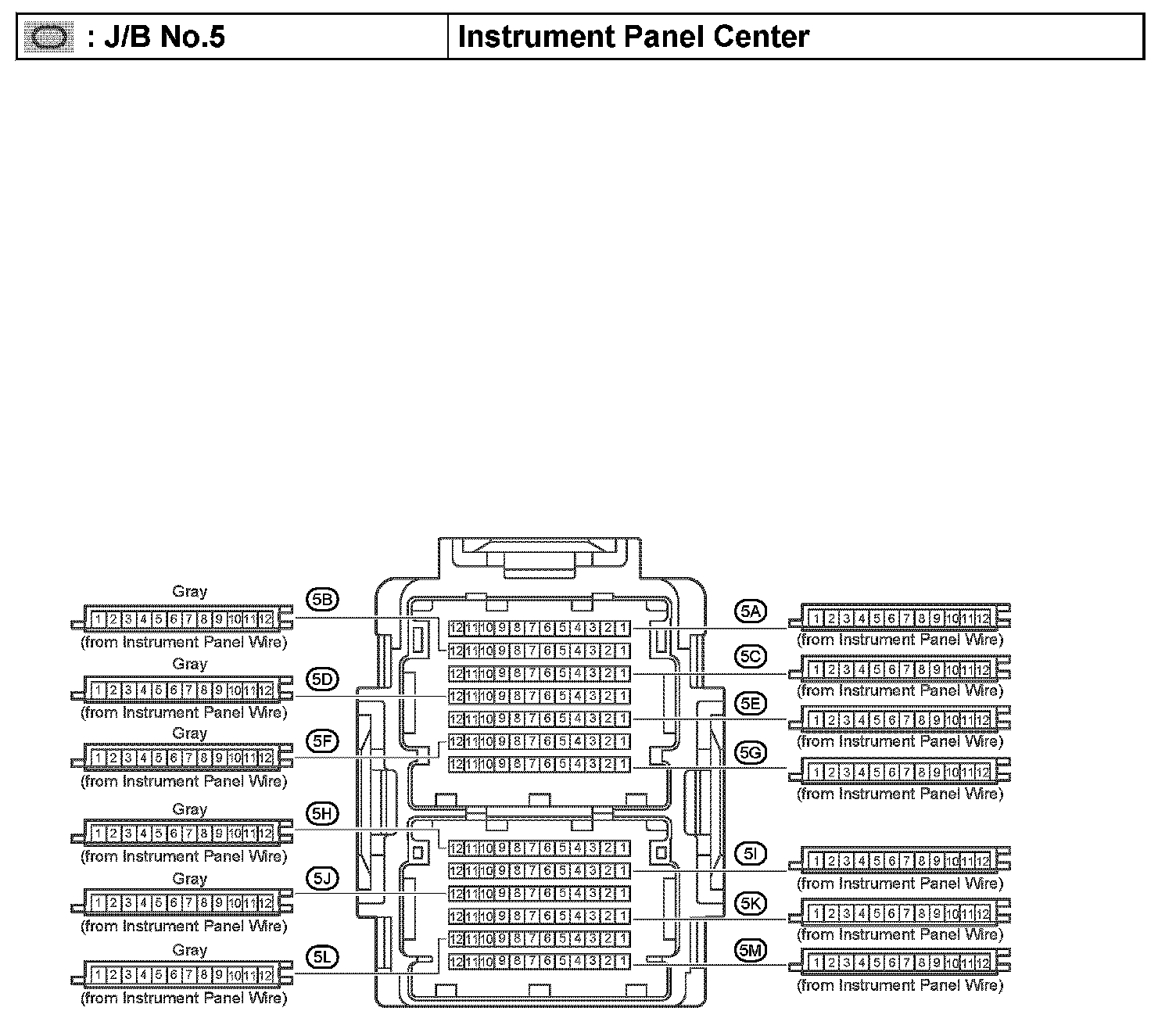

J/B No.5 - Instrument Panel Center:

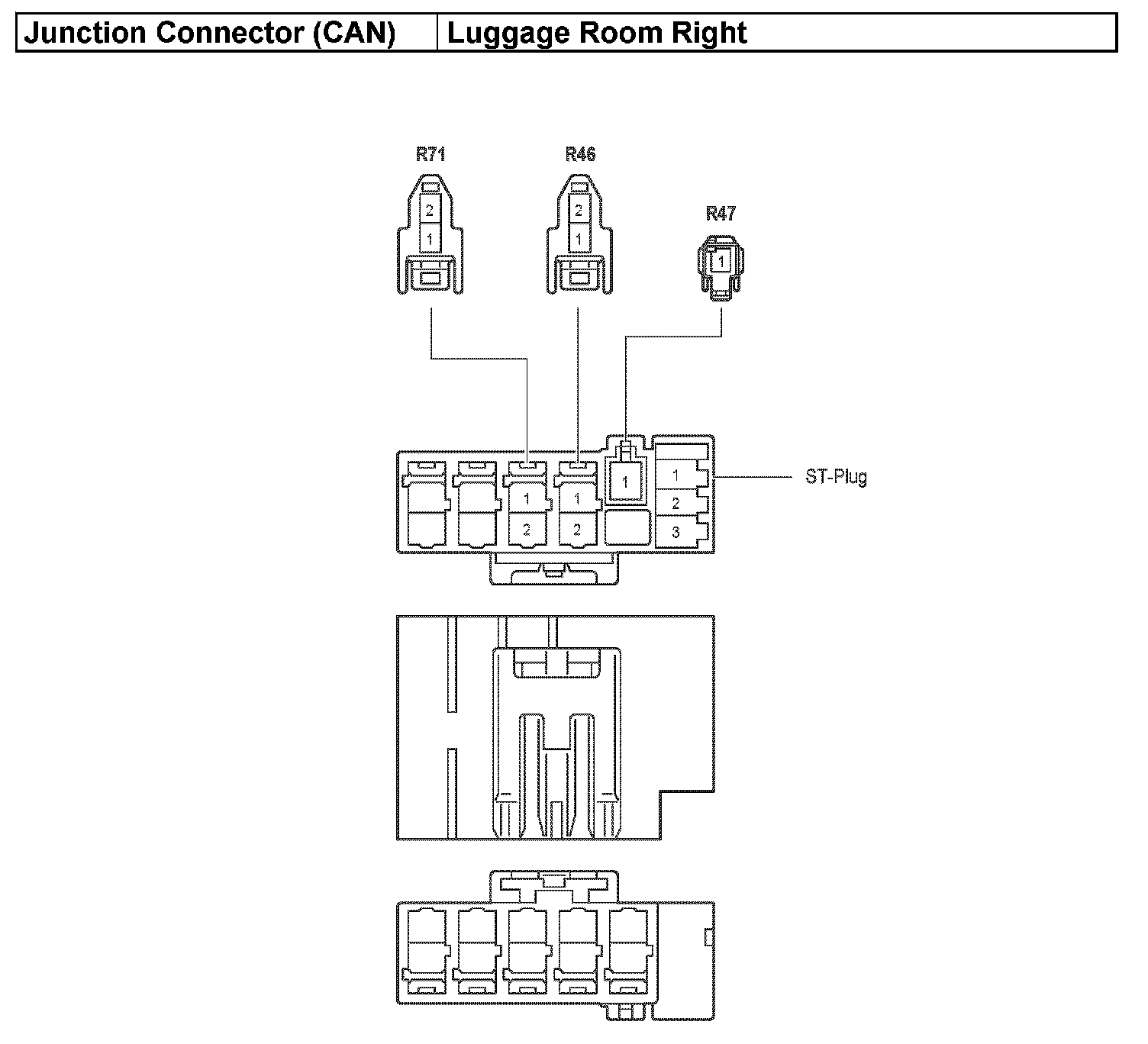

Junction Connector (CAN) - Luggage Room Right:
