Installation

1UR-FSE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

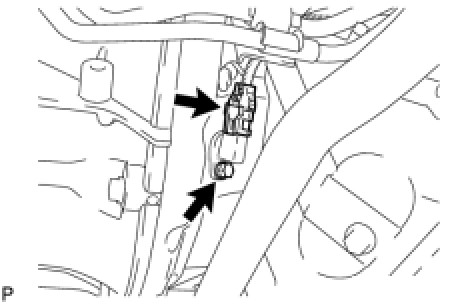

1. INSTALL CRANKSHAFT POSITION SENSOR

(a) Install the crankshaft position sensor with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)





(b) Connect the crankshaft position sensor connector.

2. INSTALL NO. 2 ENGINE UNDER COVER (for 2WD) Installation

3. INSTALL NO. 2 ENGINE UNDER COVER (for AWD) Installation
