Problem Symptoms Table





CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE

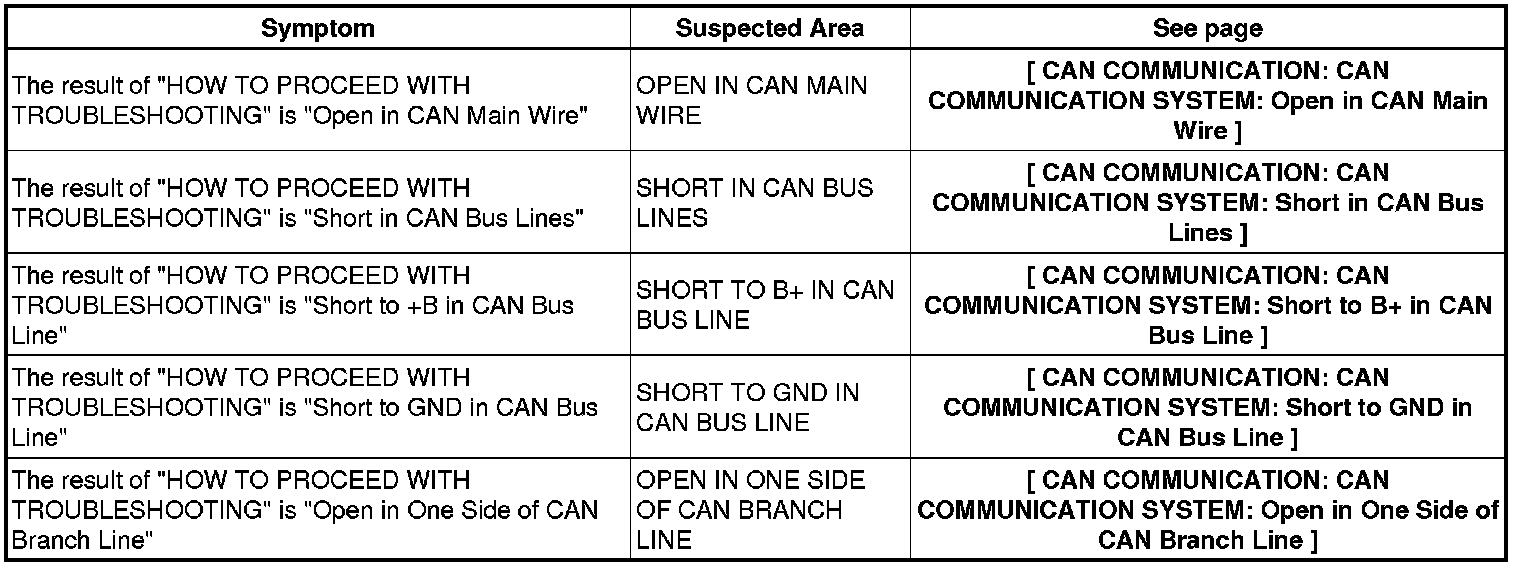

RESULT LIST OF CHECK CAN BUS LINE

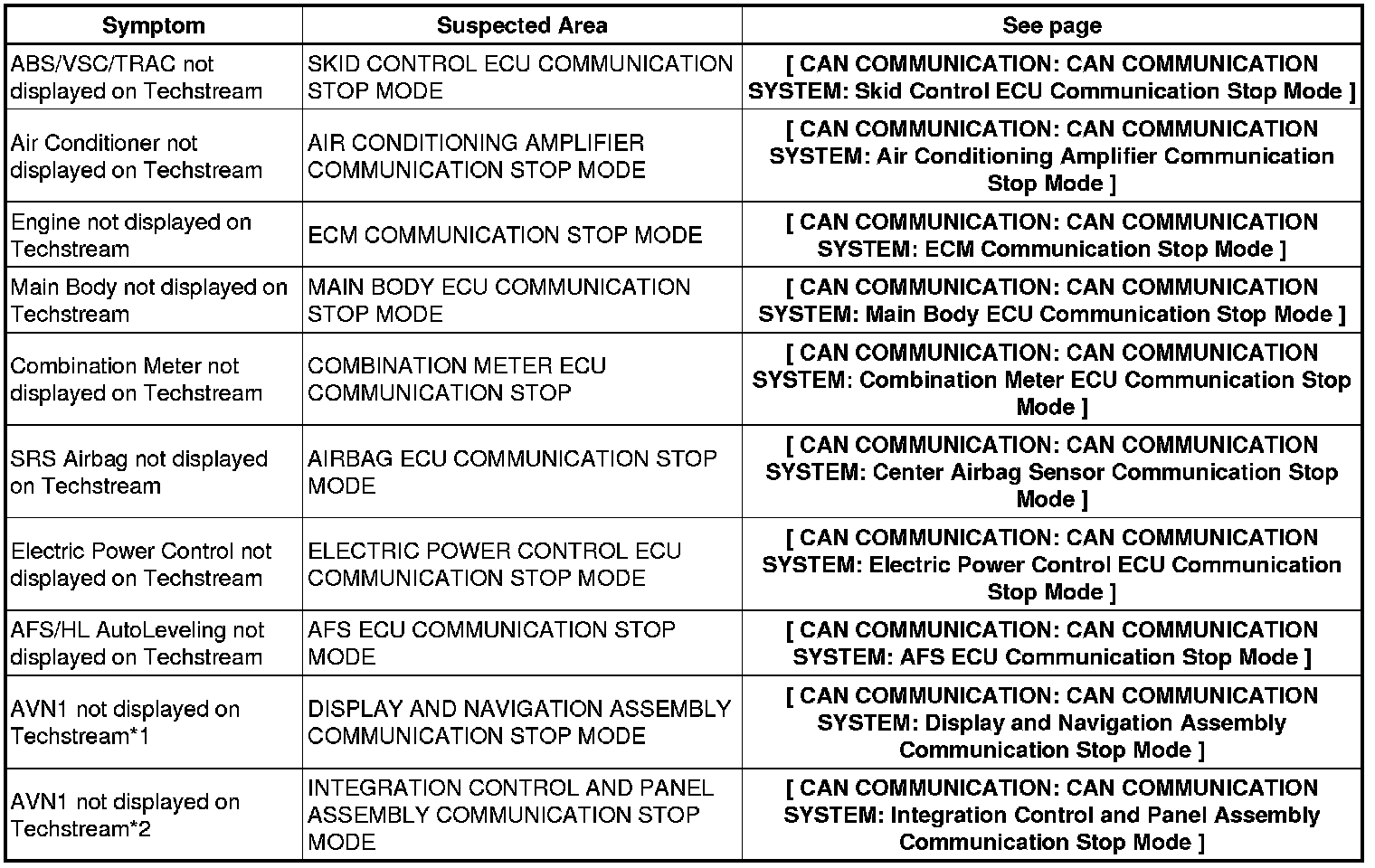

COMMUNICATION STOP MODE TABLE





HINT
* *1: w/ Multi-display
* *2: w/o Multi-display
