Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Climate Control Seat (Diagnostics - Introduction)
>>
Climate Control Seat System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

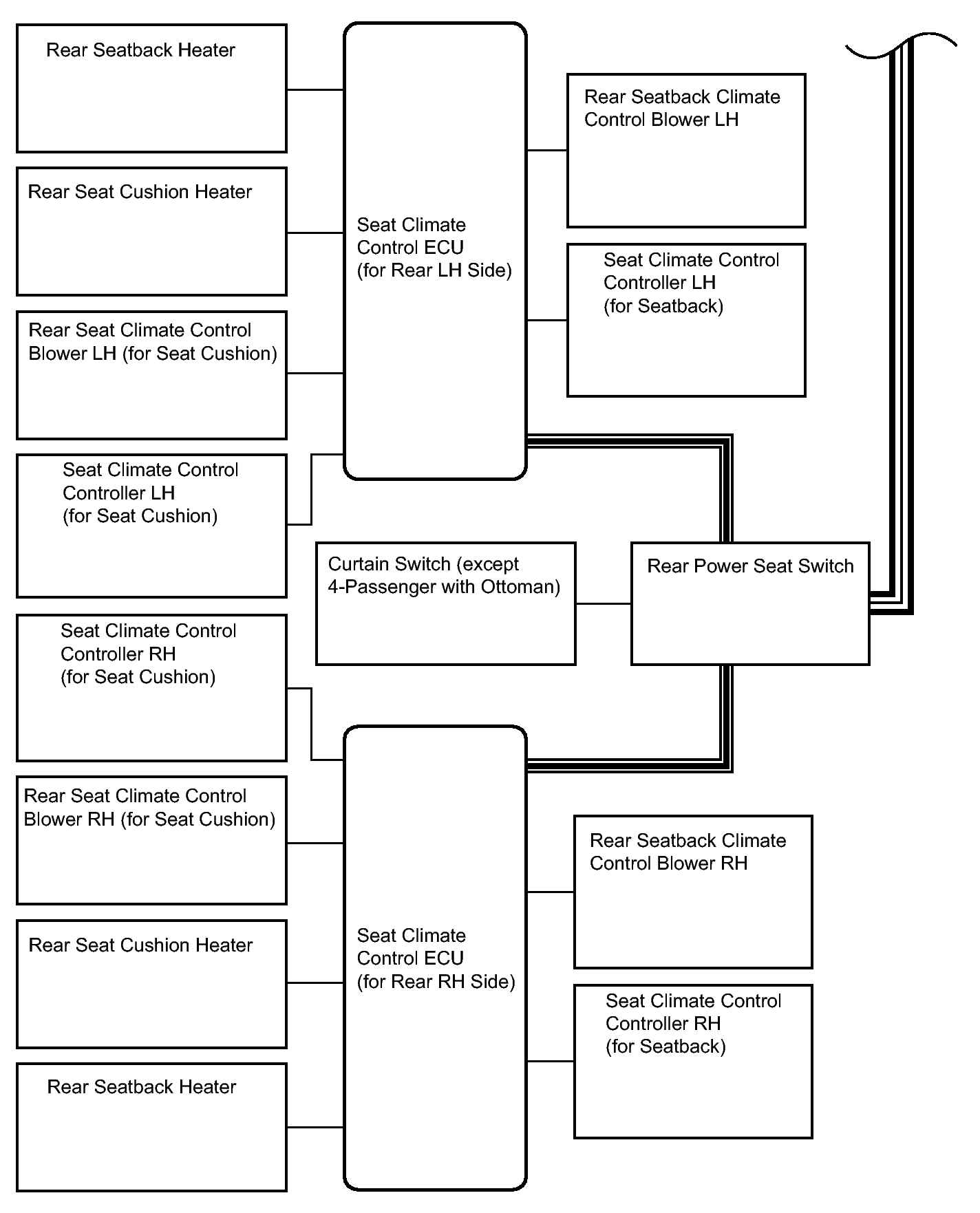

Fig 1: Identifying Climate Control Seat System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

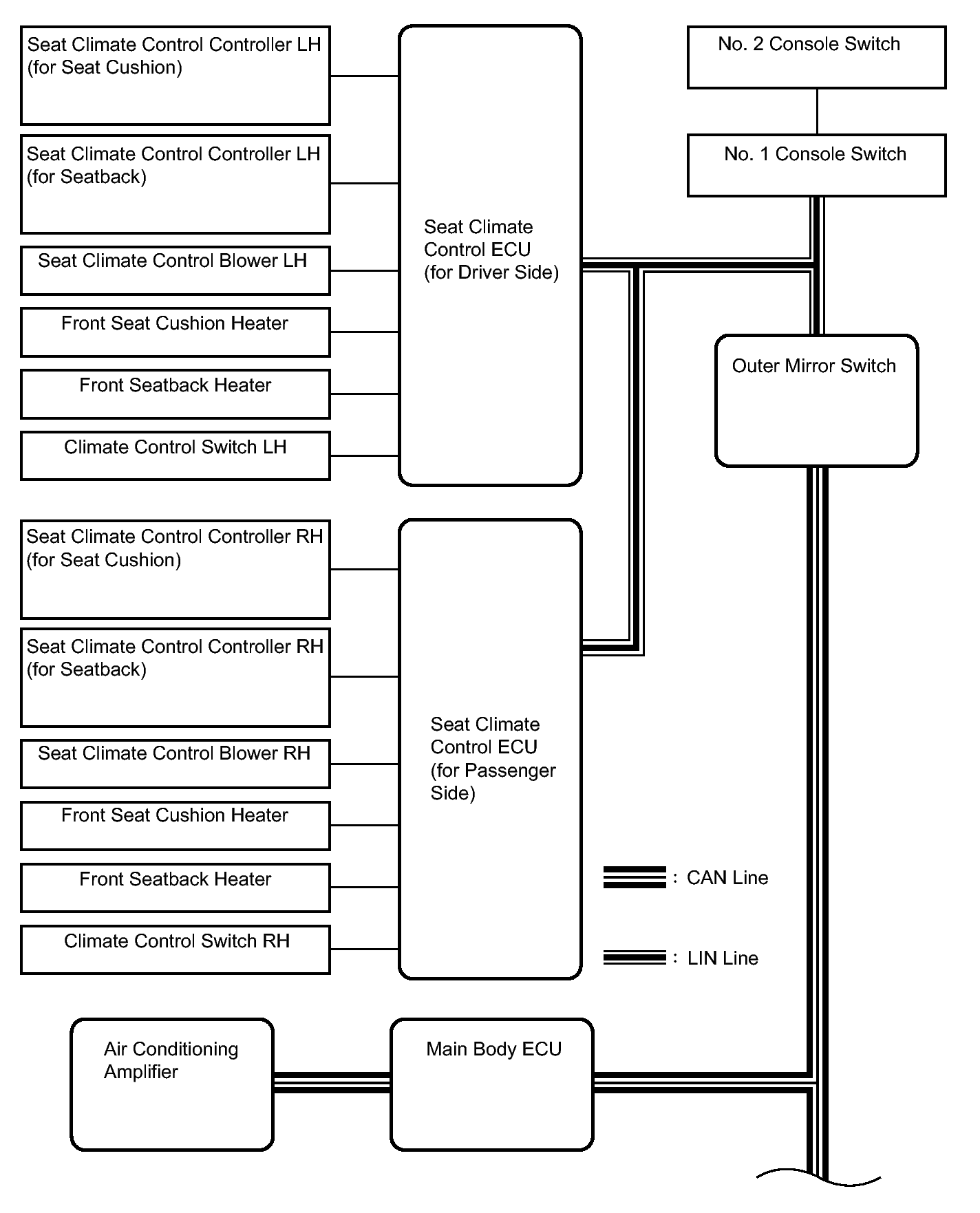

Fig 2: Identifying Climate Control Seat System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Sender
Receiver
Signal
Line
Climate control ECU
A/C amplifier
A/C signal
LIN, CAN
