HEATED OXYGEN SENSOR (for AWD): Components: Illustration

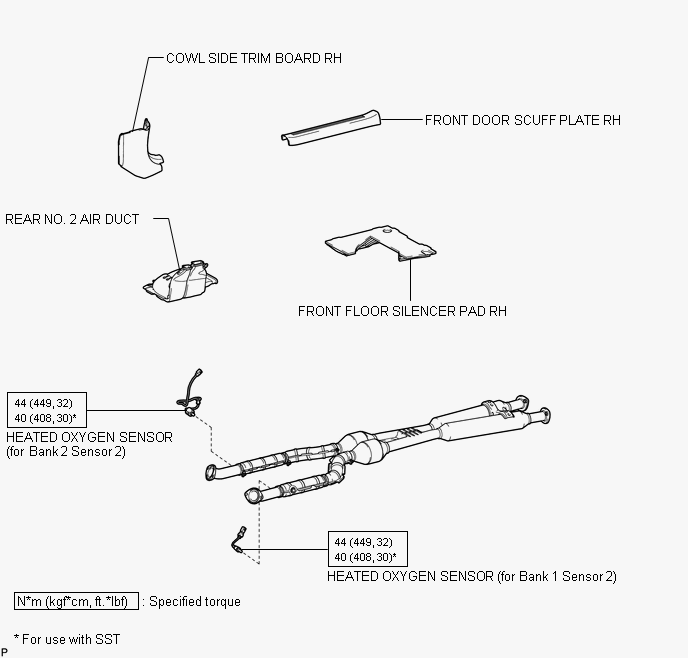

Fig 1: Identifying Heated Oxygen Sensor (AWD) Replacement Components With Torque Specifications
GTY288351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
