Fuel Relief Valve: Components: Illustration

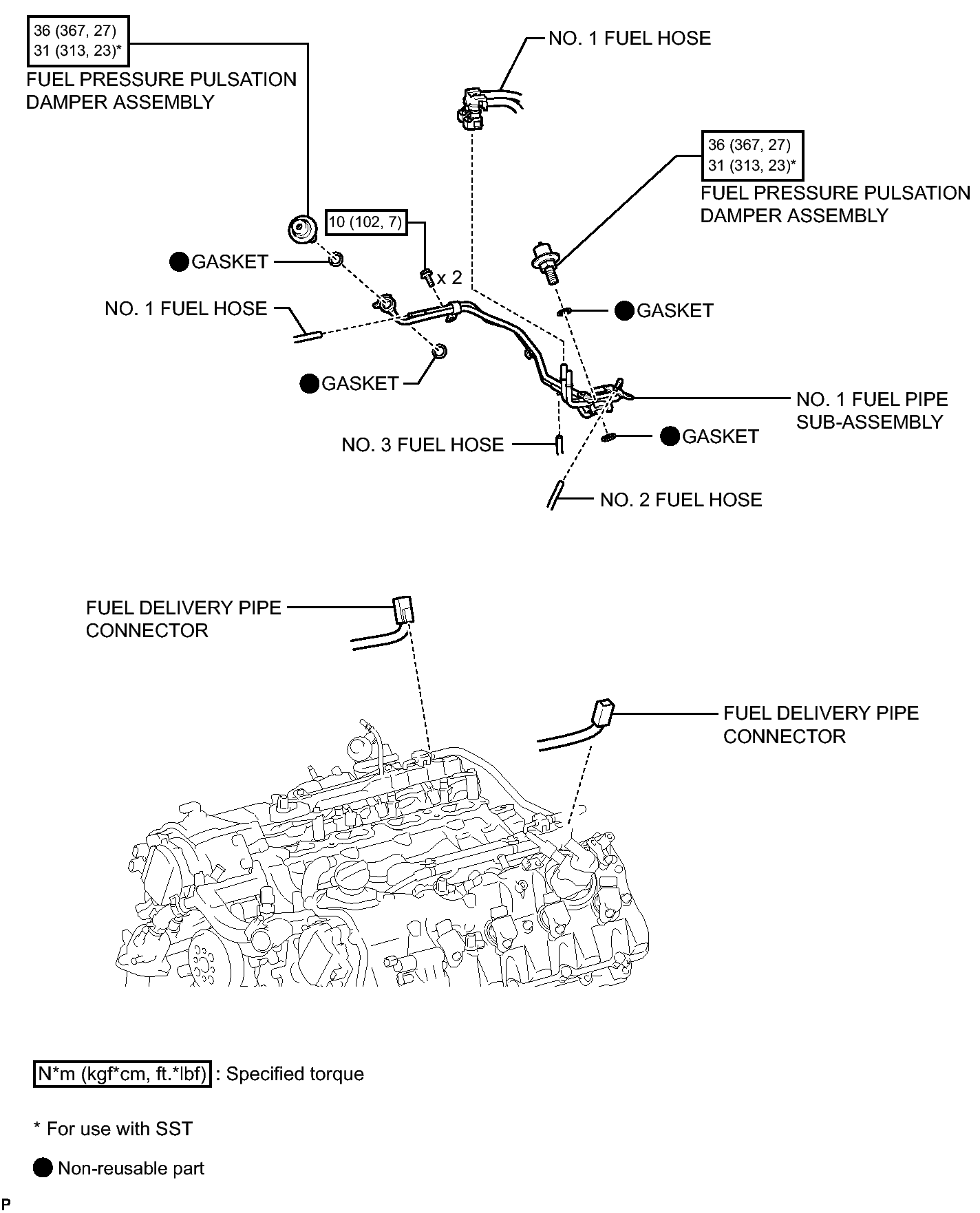

Fig 1: Identifying Fuel Relief Valve Replacement Components With Torque Specifications (1 Of 2)
GTY353625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

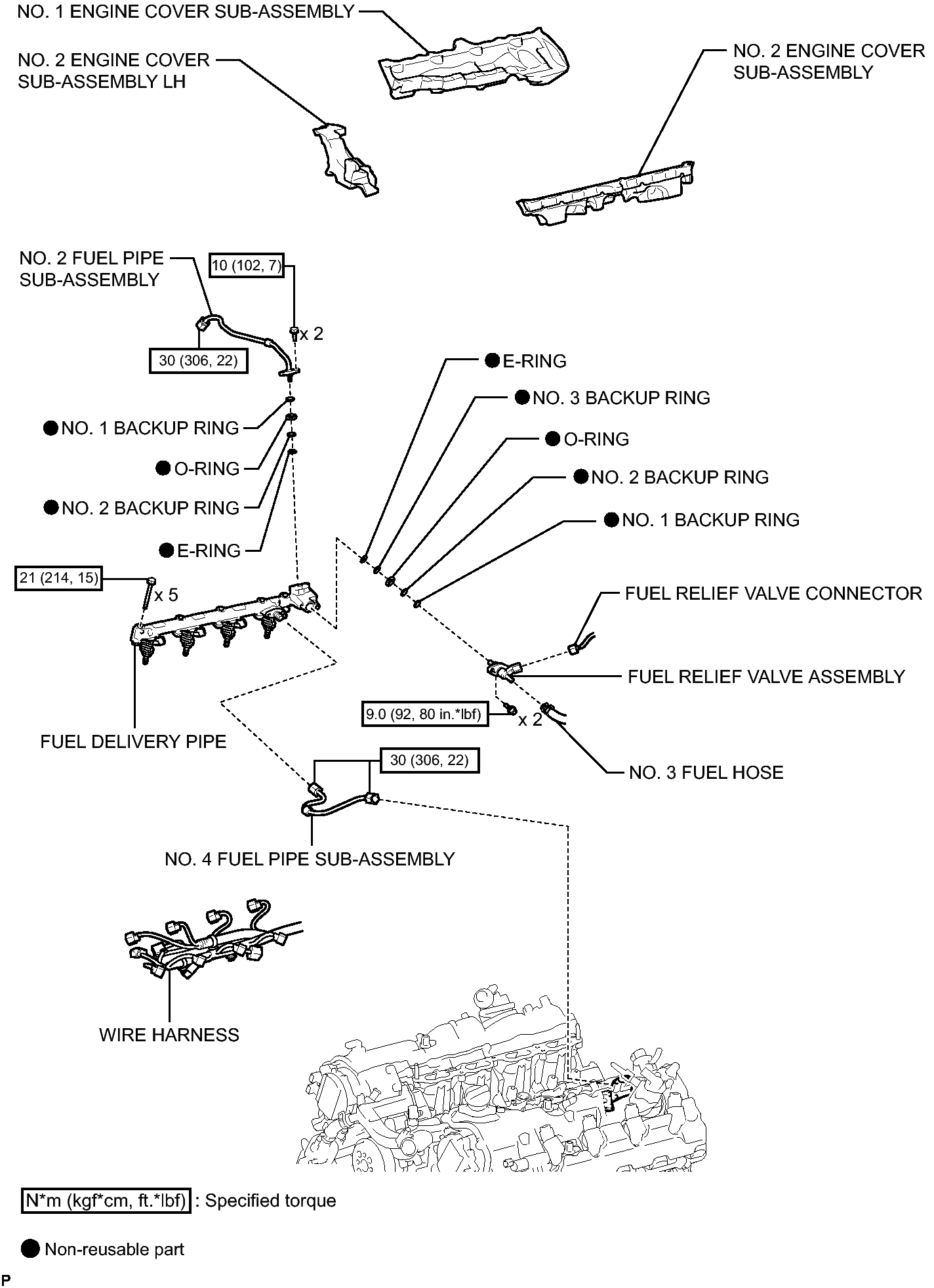

Fig 1: Identifying Fuel Relief Valve Replacement Components With Torque Specifications (2 Of 2)
GTY279874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
