Frame Wire: Installation: Installation

  1. INSTALL FRAME WIRE
    1. Install the frame wire to the vehicle with 5 new clips.

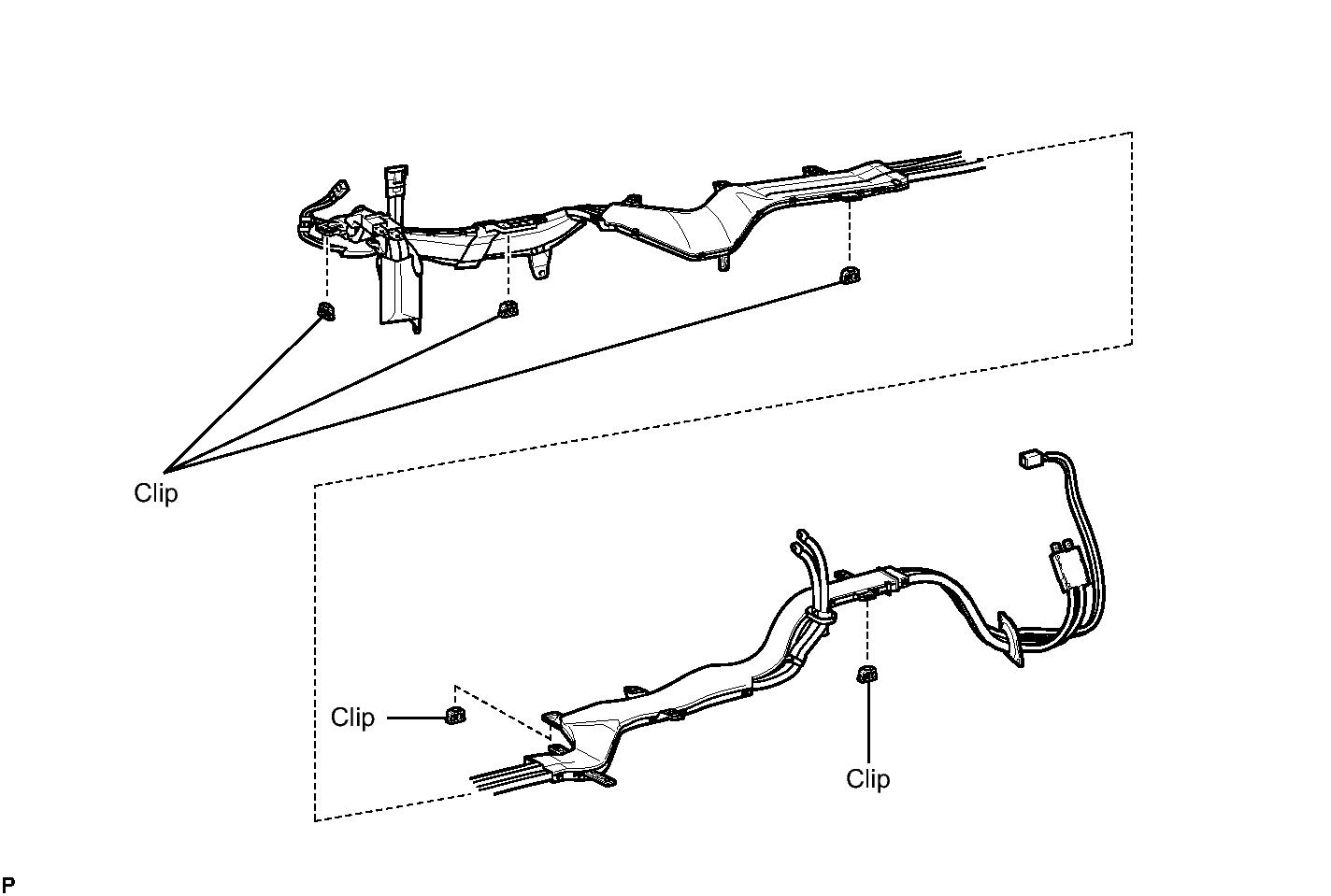

      Fig 1: Identifying Frame Wire Harness Assembly Clips
      GTY284027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pass the frame wire to the cabin and install the 2 bolts.
      Fig 2: Identifying Clips For Frame Wire
      GTY143134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Pass the frame wire into the cabin and secure the grommet.

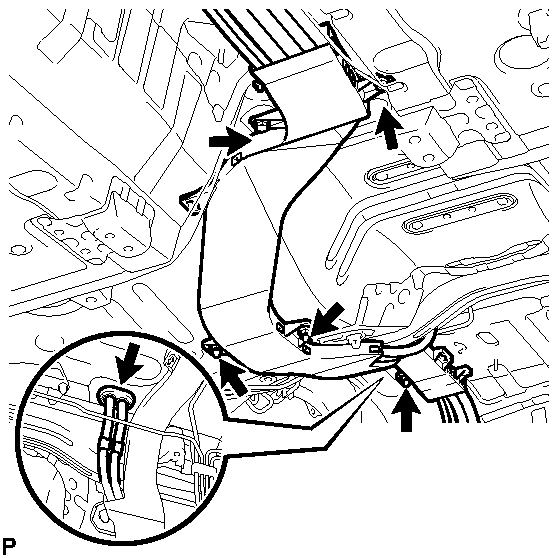

      Fig 3: Locating Nuts And Bolts
      GTY132913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 3 nuts and 2 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    5. Install the 4 nuts and bolt.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 4: Locating Nuts And Bolt
      GTY148313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the 3 nuts and bolt.
      Fig 5: Locating Nuts And Bolt
      GTY134795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    7. Install the 2 bolts and clamp.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 6: Locating Bolts And Clamp
      GTY148314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Engage the 2 claws, and connect the frame wire to the No. 1 engine room junction block.
      Fig 7: Disconnecting Frame Wire From Engine Room No 1 Junction Block
      GTY143443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Secure the frame wire to the engine room No. 1 junction block with the 2 nuts.

      Torque: 13 N*m (130 kgf*cm, 10 ft.*lbf)

  2. INSTALL WIRE HARNESS PROTECTOR
    1. Install the 3 nuts, new clip and wire harness protector.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 8: Locating Nuts New Clip And Wire Harness Protector
      GTY132922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 nuts, 2 clamps and wire harness protector.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 9: Locating Nuts, Clamps And Wire Harness Protector
      GTY128354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT INVERTER WITH CONVERTER ASSEMBLY
    WARNING:

    Wear insulating gloves.

    1. Connect the frame wire to the inverter with converter assembly with the bolt.
      Fig 10: Connecting Frame Wire To Inverter With Converter Assembly With Bolt
      GTY148350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  4. CONNECT HV BATTERY
    WARNING:

    Wear insulated gloves.

    1. Attach the claw and connect the frame wire to the luggage terminal.
      Fig 11: Identifying Claw, Nuts, Frame Wire & Luggage Terminal
      GTY280140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the frame wire with the 2 nuts.

      Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

    3. Connect the connector and attach the 3 clamps.
      Fig 12: Identifying Connector & Clamps
      GTY277549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the No. 15 wiring harness protector with the 2 nuts and attach the claw.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      Fig 13: Identifying Nuts, Claw & Wire Harness Protector
      GTY275165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the battery shield contact as shown in the illustration.
      NOTE:

      Be sure to install the battery shield contact in the correct direction.

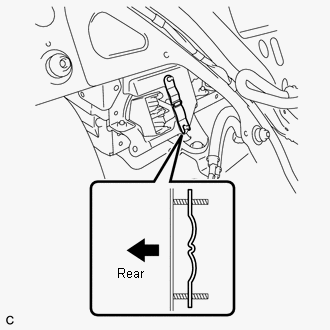

      Fig 14: Identifying Battery Shield
      GTY281017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the frame wire to the HV battery with the 2 nuts.
      Fig 15: Connecting Frame Wire To HV Battery With Nuts
      GTY122810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      NOTE:

      Be sure to align the red mark on the frame wire with the red part of the terminal block.

  5. INSTALL SPARE WHEEL GUARD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 28
  6. INSTALL NO. 2 HV BATTERY SHIELD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 34
  7. INSTALL NO. 1 CENTER FLOOR TO BRACE EXTENSION  . Refer to INSTALLATION - Step 38
  8. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH  . Refer to INSTALLATION - Step 4
  9. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH  . Refer to INSTALLATION - Step 5
  10. INSTALL REAR FLOOR FINISH PLATE  . Refer to INSTALLATION - Step 6
  11. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER  . Refer to INSTALLATION - Step 9
  12. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY  . Refer to INSTALLATION - Step 11
  13. INSTALL DECK TRIM SIDE BOARD RH  . Refer to INSTALLATION - Step 12
  14. INSTALL ROPE HOOK ASSEMBLY  . Refer to INSTALLATION - Step 13
  15. INSTALL ROPE HOOK  . Refer to INSTALLATION - Step 14
  16. INSTALL NO. 1 COOLER COVER (w/ Rear Air Conditioning System)  . Refer to INSTALLATION - Step 17
  17. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Refer to INSTALLATION and install the rear suspension member sub-assembly.
  18. INSTALL FUEL TANK ASSEMBLY
    1. Refer to INSTALLATION and install the fuel tank assembly.
  19. INSTALL ENGINE ASSEMBLY WITH TRANSMISSION
    1. Refer to INSTALLATION and install the engine assembly with transmission.
  20. INSTALL REAR SEAT ASSEMBLY (for Power Seat)
    1. Refer to INSTALLATION and install the rear seat assembly.
  21. INSTALL REAR SEAT ASSEMBLY (for Ottoman)
    1. Refer to INSTALLATION and install the rear seat assembly.
  22. INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)
    1. Refer to INSTALLATION and install the rear seat assembly.
  23. INSTALL SERVICE PLUG GRIP
    1. Refer to INSTALLATION and install the service plug grip.
