Parking Assist (Rear View Monitor w/o LEXUS Navigation System): Notes

WARNING: This page is about a different car, the 2010 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

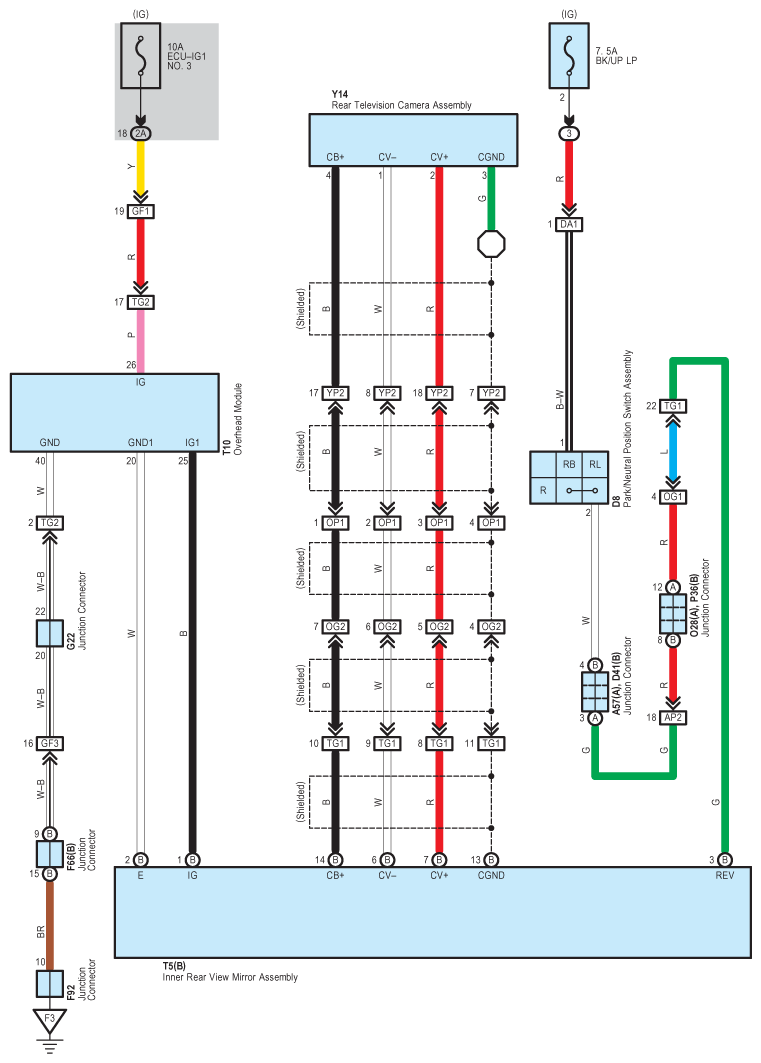

Fig 1: Parking Assist (Rear View Monitor W/O Lexus Navigation System) - Circuit Diagram
G07573978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
