The Pressure Warning System: Notes

WARNING: This page is about a different car, the 2010 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

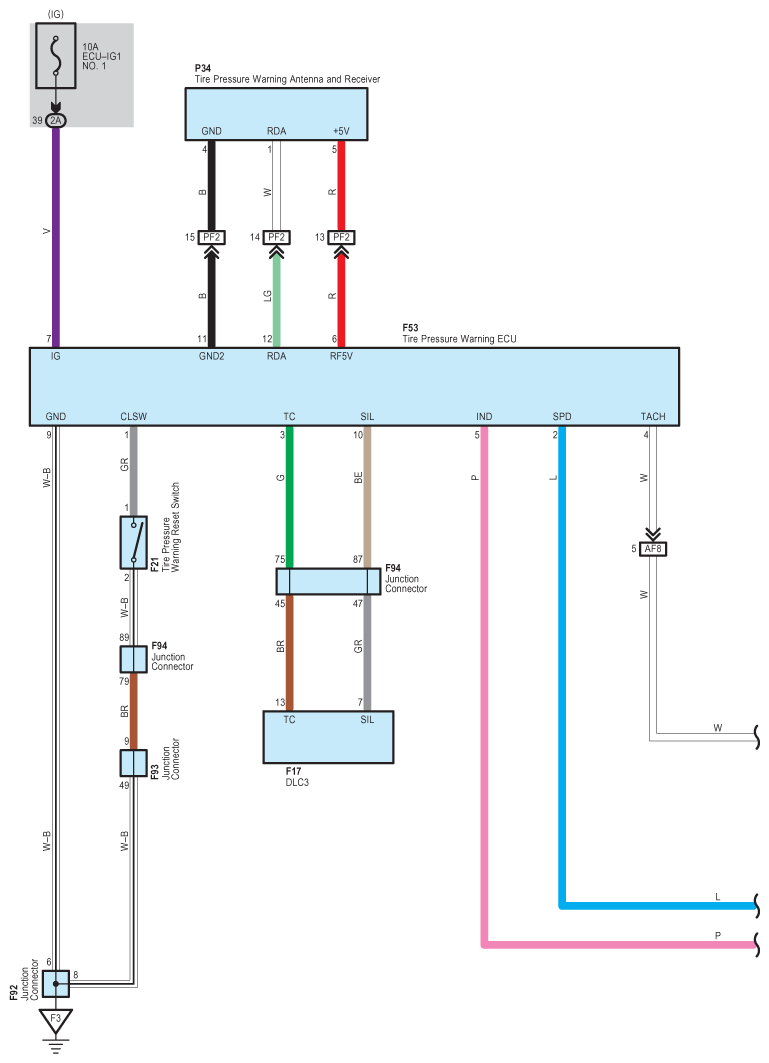

Fig 1: Tire Pressure Warning System - Circuit Diagram (1 Of 3)
G07573883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

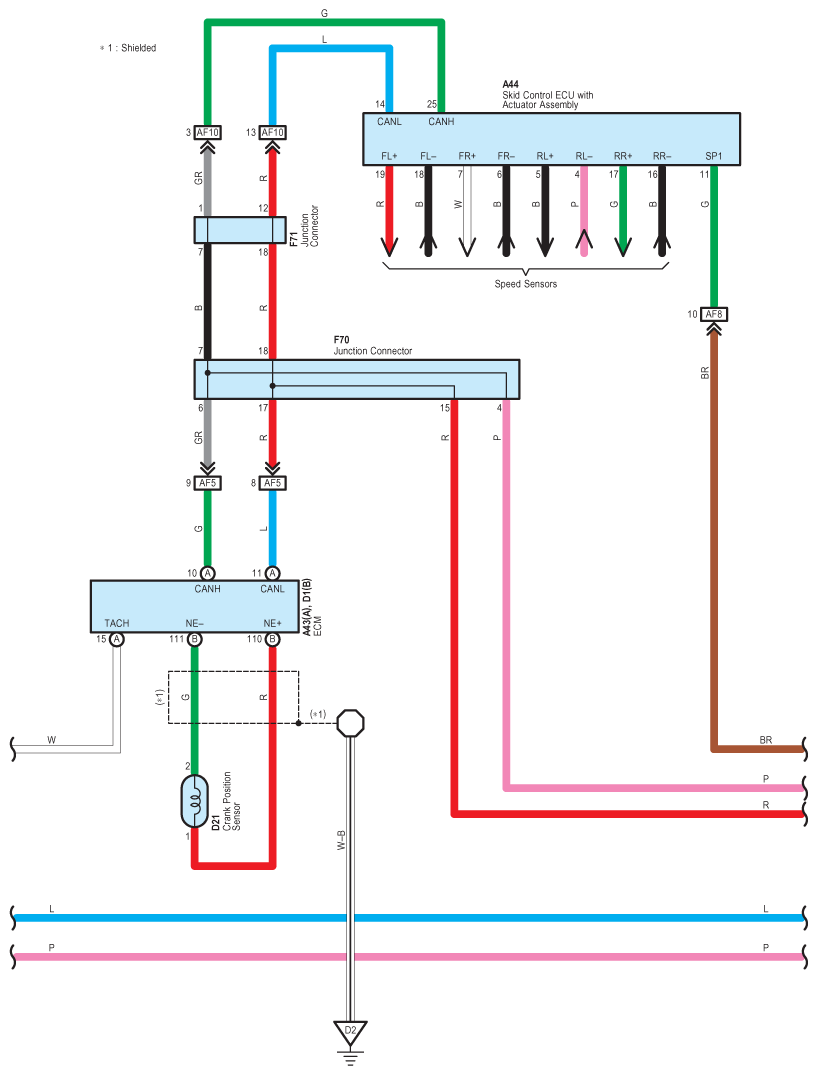

Fig 2: Tire Pressure Warning System - Circuit Diagram (2 Of 3)
G07573884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

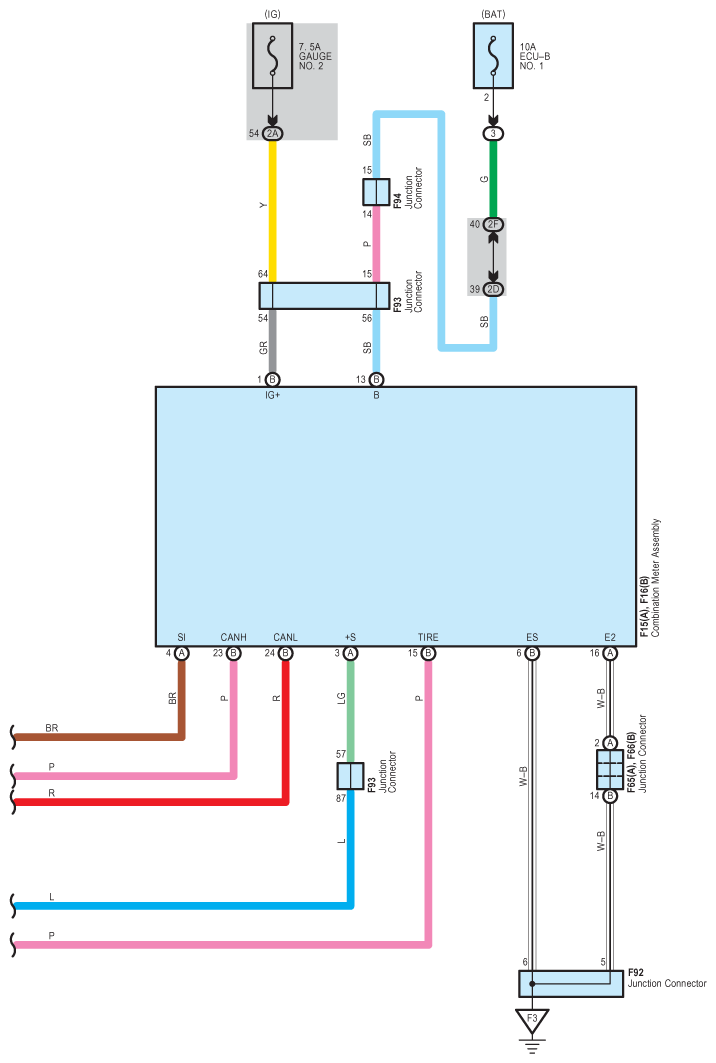

Fig 3: Tire Pressure Warning System - Circuit Diagram (3 Of 3)
G07573885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
