Home >> Lexus >> 2012 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Navigation Module: Locations

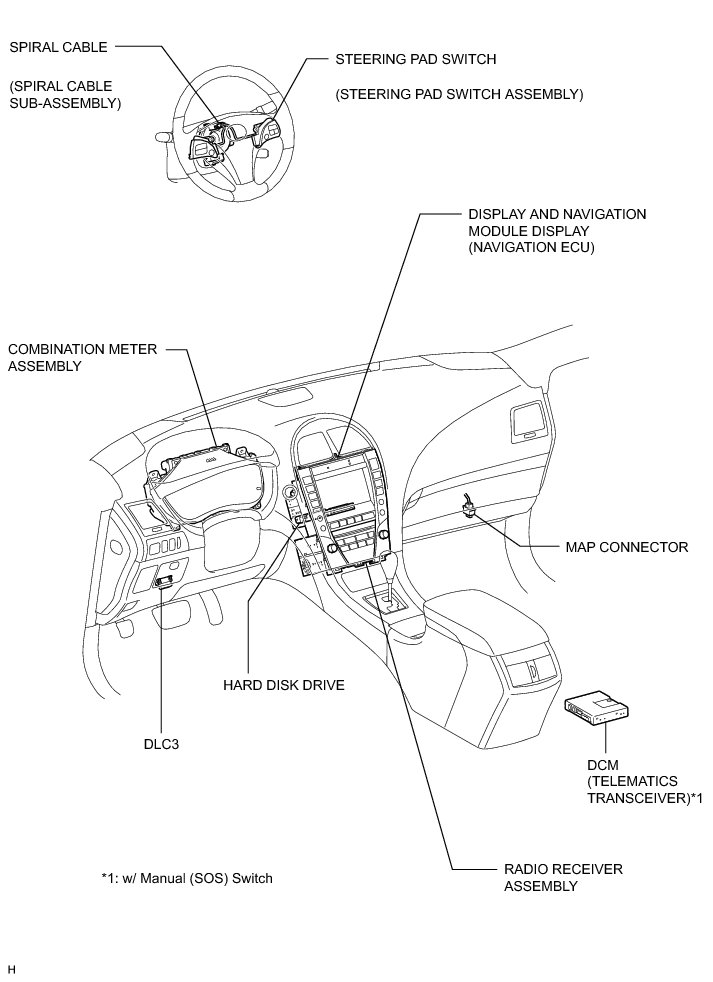

NAVIGATION: NAVIGATION SYSTEM: PARTS LOCATION

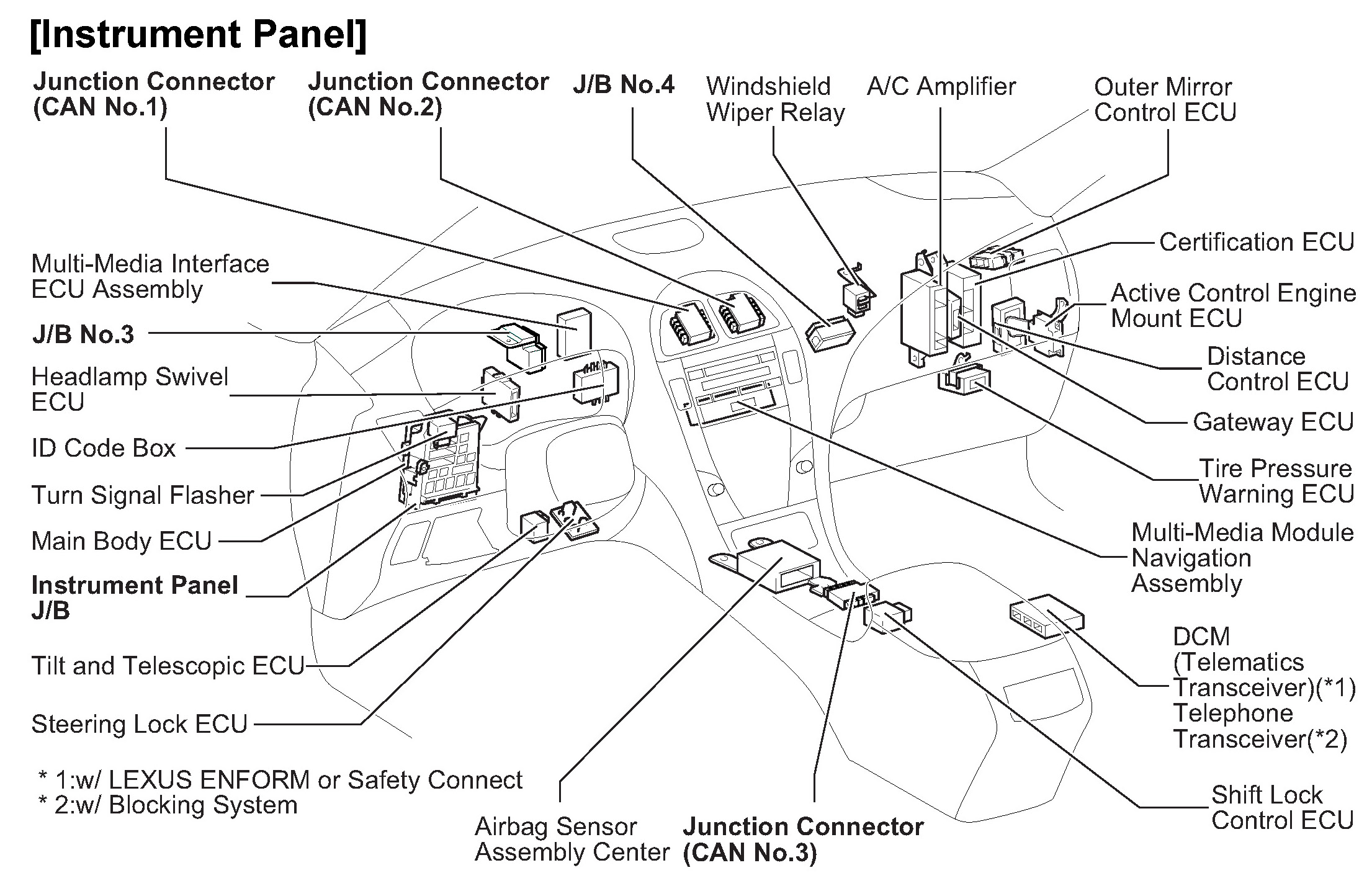

Instrument Panel:
