Timing Cover

Timing Cover

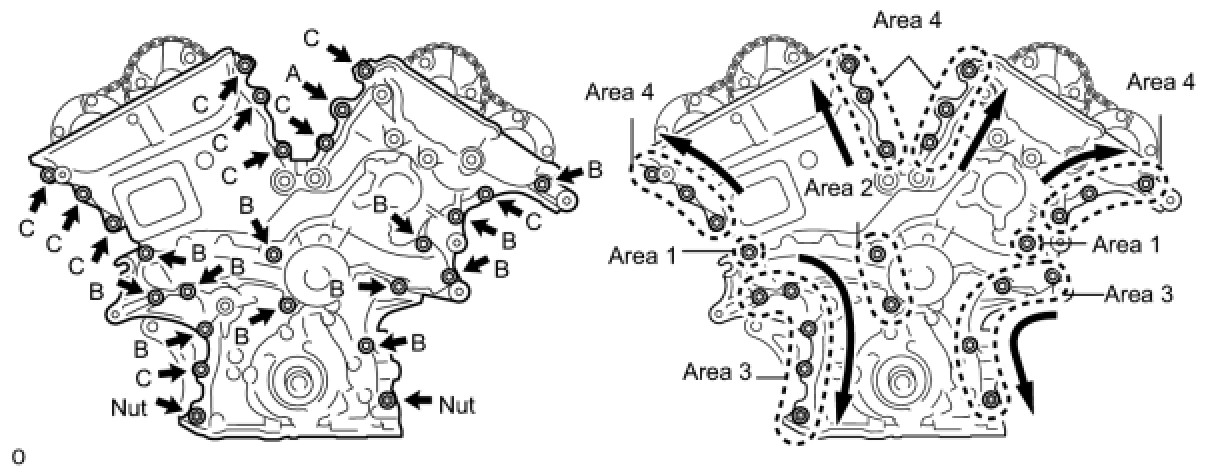

Area 1 and Area 2
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Area 3
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Area 4 bolt A
Torque 43 Nm (438 kgf-cm, 32 ft-lbf)
Area 4 except bolt A
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
