Start / Stop Switch: Testing and Inspection

2GR-FE STARTING: ENGINE SWITCH: INSPECTION

1. INSPECT ENGINE SWITCH

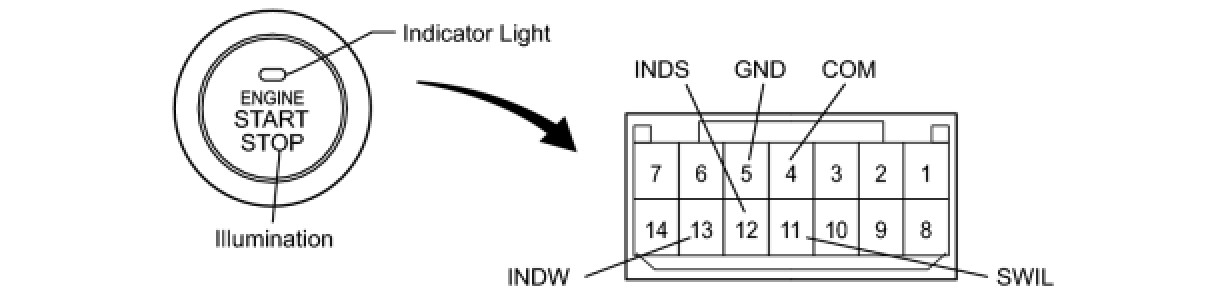

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the engine switch.

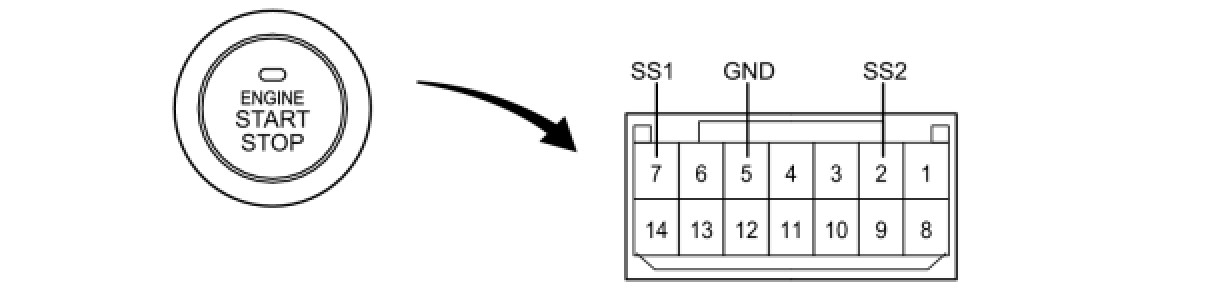

(b) Apply battery voltage between the terminals of the switch, and check the illumination condition of the switch.





Standard resistance:





If the result is not as specified, replace the engine switch.
