Control Module: Locations

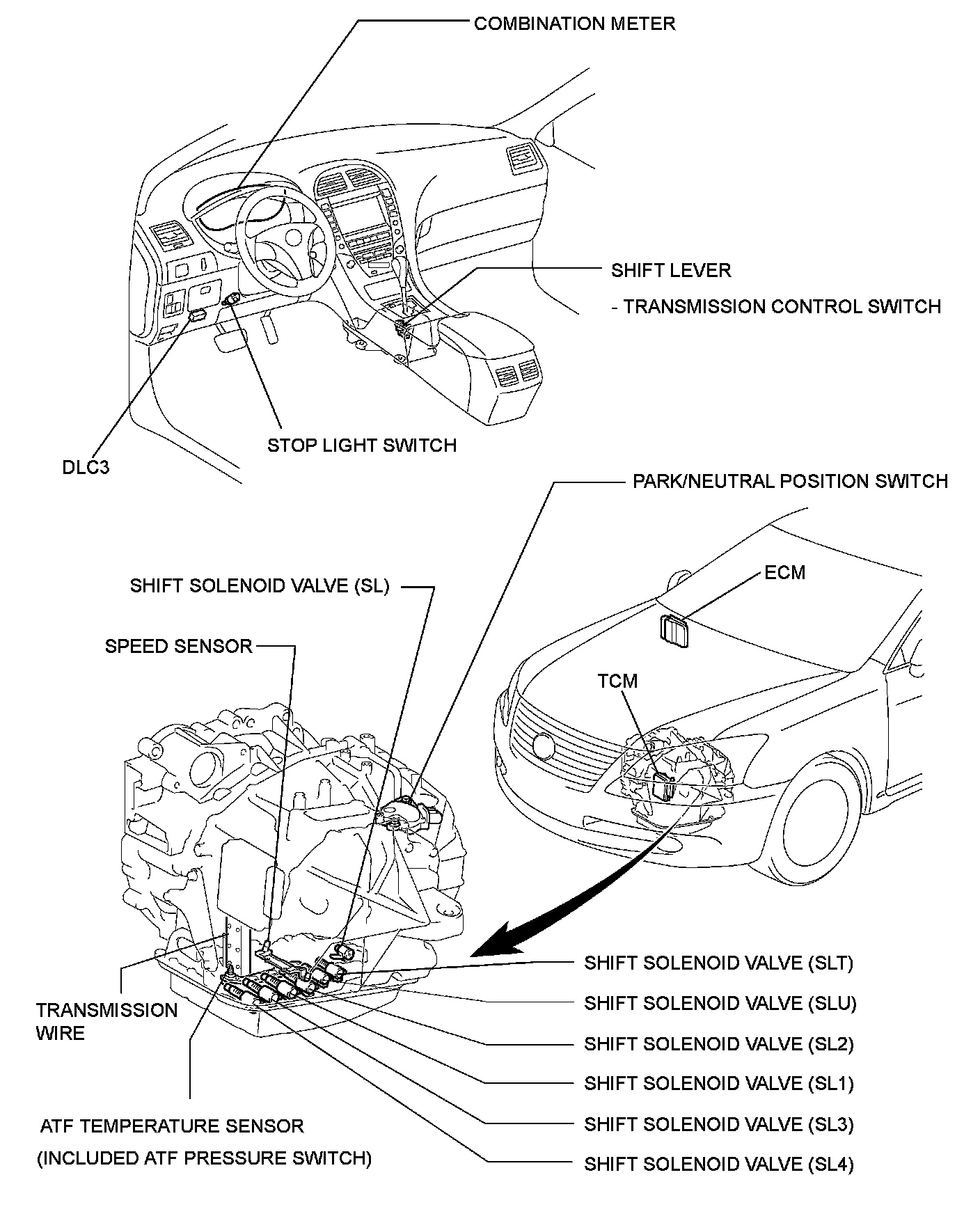

U660E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION





Engine Compartment:
