Cruise Control Main Switch: Inspection: Inspection
- INSPECT CRUISE CONTROL MAIN SWITCH

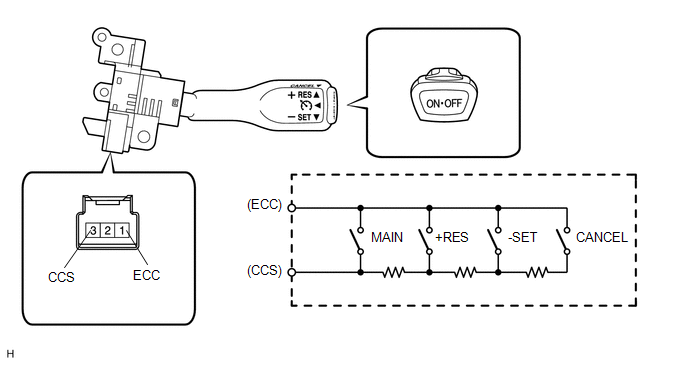

- Measure the resistance (for vehicles without vehicle-to-vehicle distance control mode).Fig 1: Measuring Cruise Control Main Switch Resistance (w/o Vehicle-To-Vehicle Distance Control Mode)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 1 (ECC) - 3 (CCS) Neutral 1 MΩ or higher 1 (ECC) - 3 (CCS) +RES 235 to 245 Ω 1 (ECC) - 3 (CCS) -SET 617 to 643 Ω 1 (ECC) - 3 (CCS) CANCEL 1509 to 1571 Ω 1 (ECC) - 3 (CCS) Main switch off 1 MΩ or higher 1 (ECC) - 3 (CCS) Main switch on Below 2.5 Ω - If the result is not as specified, replace the cruise control main switch.
- Measure the resistance according to the value(s) in the table below.

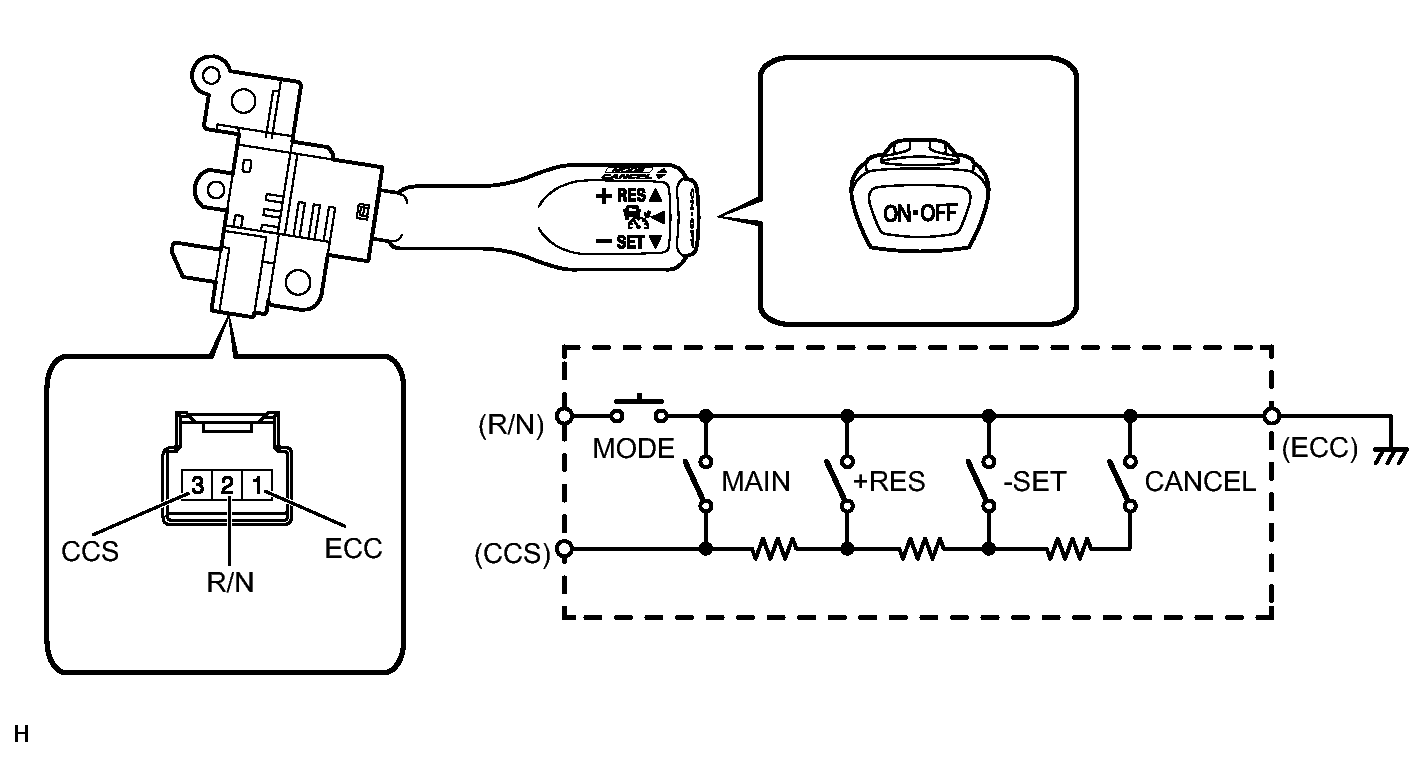

- Measure the resistance (for vehicles with vehicle-to-vehicle distance control mode).Fig 2: Measuring Cruise Control Main Switch Resistance (w/ Vehicle-To-Vehicle Distance Control Mode)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 1 (ECC) - 2 (R/N)
1 (ECC) - 3 (CCS)Neutral 1 MΩ or higher 1 (ECC) - 3 (CCS) +RES 235 to 245 Ω 1 (ECC) - 3 (CCS) -SET 617 to 643 Ω 1 (ECC) - 3 (CCS) CANCEL 1509 to 1571 Ω 1 (ECC) - 3 (CCS) Main switch off 1 MΩ or higher 1 (ECC) - 3 (CCS) Main switch on Below 2.5 Ω 3 (CCS) - 2 (R/N) Main switch on and mode switch on Below 2.5 Ω - If the result is not as specified, replace the cruise control main switch.
- Measure the resistance according to the value(s) in the table below.
- Measure the resistance (for vehicles without vehicle-to-vehicle distance control mode).
