Installation

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSTALLATION

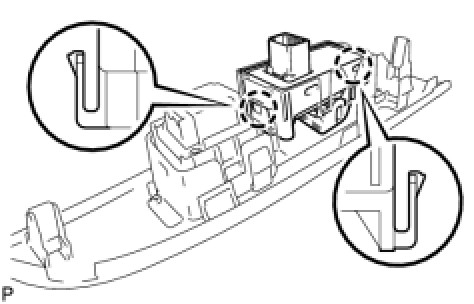

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Engage the 2 claws and install the power window regulator switch assembly.





2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

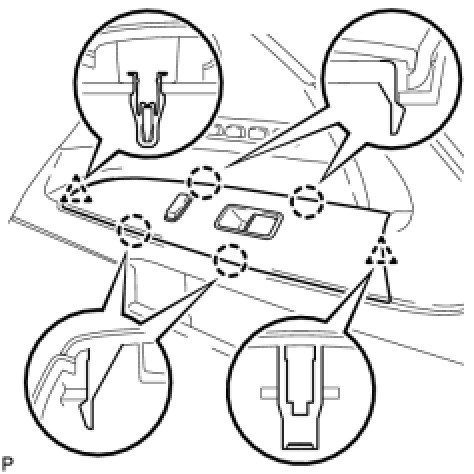

(a) except Wood Panel:

(1) Connect the connector.

(2) Engage the 4 claws and 2 clips and install the power window regulator switch assembly with front door armrest base panel.

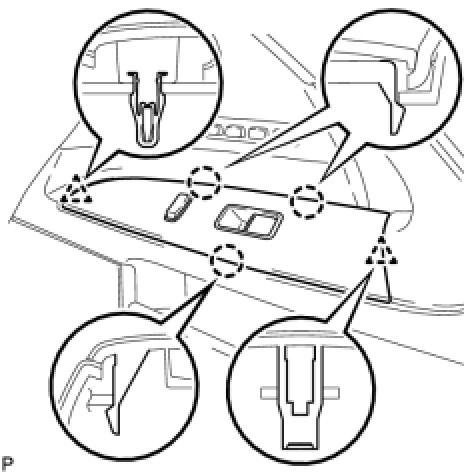

(b) for Wood Panel:

(1) Connect the connector.

(2) Engage the 3 claws and 2 clips and install the power window regulator switch assembly with front door armrest base panel.
