Transfer Wire: Components: Illustration

Fig 1: Identifying Transfer Wire Replacement Components With Torque Specifications (1 Of 2)
GTY123947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

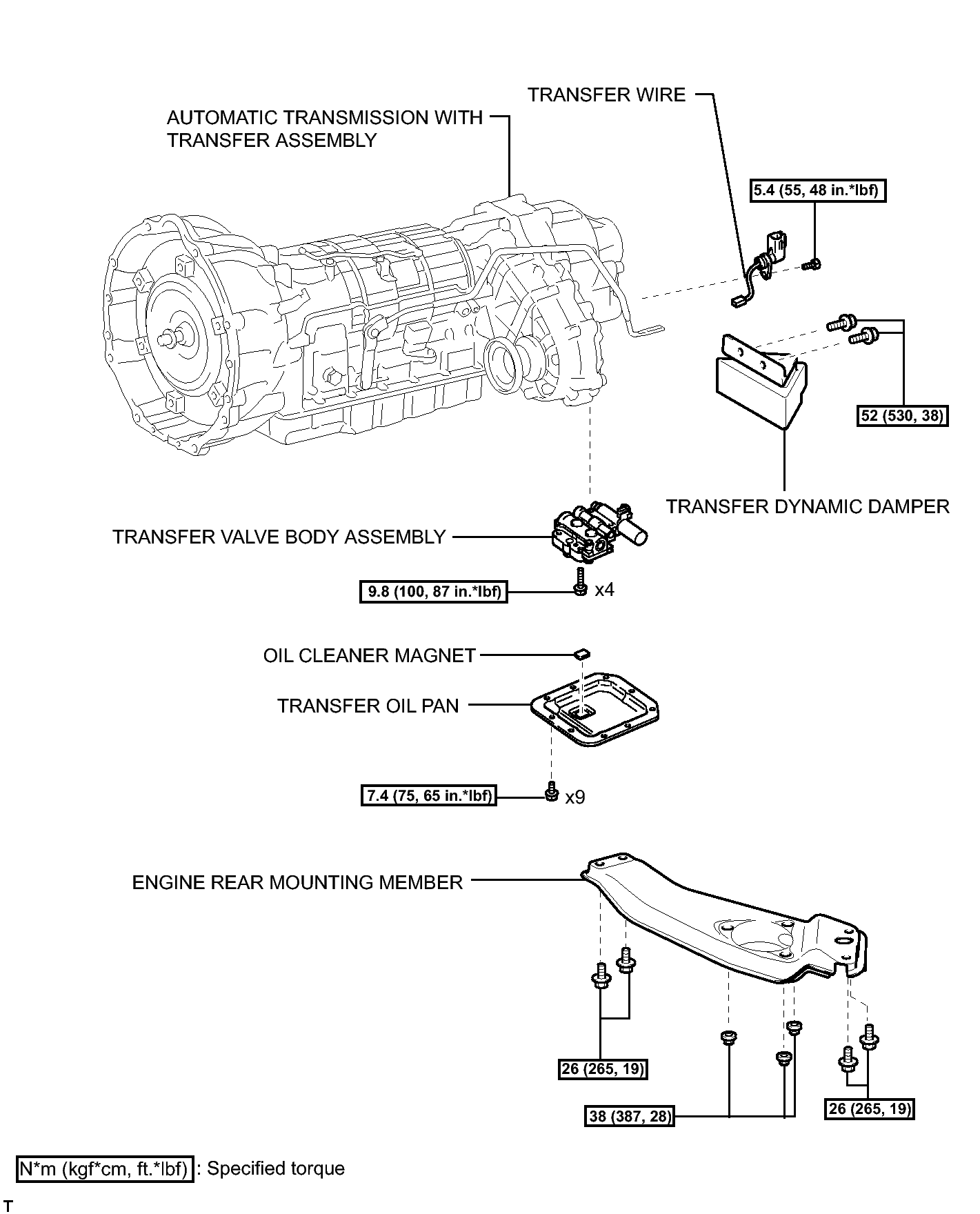

Fig 1: Identifying Transfer Wire Replacement Components With Torque Specifications (2 Of 2)
GTY113998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
