Removal

2GR-FSE IGNITION: IGNITION COIL AND SPARK PLUG: REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL

2. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

3. REMOVE COOL AIR INTAKE DUCT SEAL Removal

4. REMOVE ENGINE ROOM SIDE COVER RH Removal

5. REMOVE ENGINE ROOM SIDE COVER LH Removal

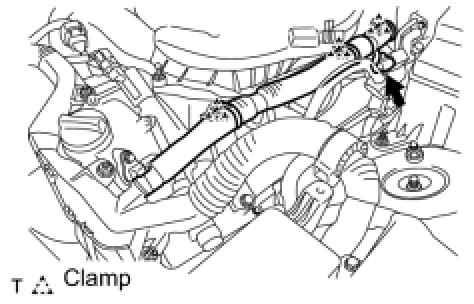

6. DISCONNECT NO. 2 VENTILATION HOSE

(a) Disconnect the ventilation hose from the cylinder head.





7. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

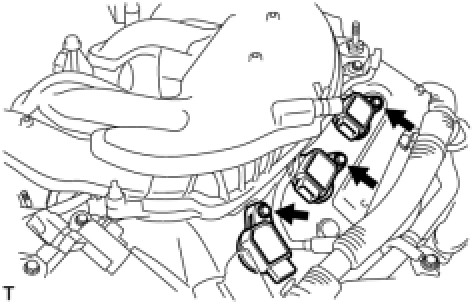

8. REMOVE IGNITION COIL ASSEMBLY

(a) Disconnect the 2 wire harness clamps.





(b) Disconnect the 6 ignition coil connectors.





(c) Remove the 6 bolts and the 6 ignition coil assemblies.

9. REMOVE SPARK PLUG

(a) Remove the 6 spark plugs.
