Timing Cover

Timing Chain Cover

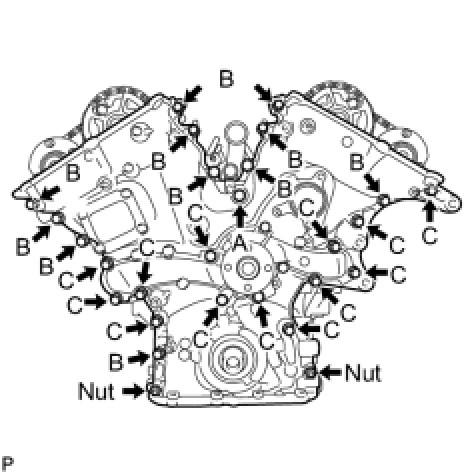

Temporarily tighten the timing chain cover with the 25 bolts and 2 nuts.

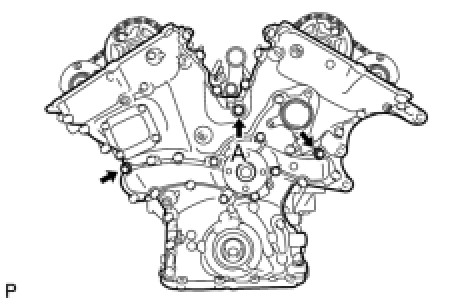

Fully tighten the 3 bolts as shown in the illustration.





Torque : 43 Nm (438 kgf-cm, 32 ft-lbf) for bolt A

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf) for bolts except A

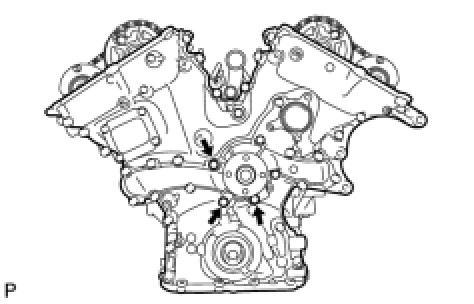

Fully tighten the 3 bolts as shown in the illustration.





Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

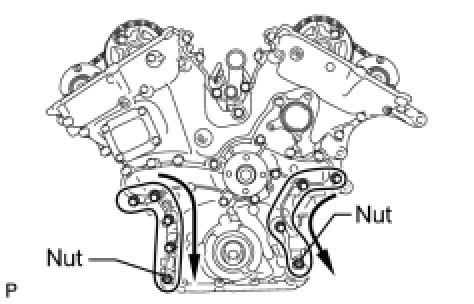

Fully tighten the 7 bolts and 2 nuts as shown in the illustration.





Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

HINT
Tighten the bolts and nuts in order from upper to lower as shown in the illustration.

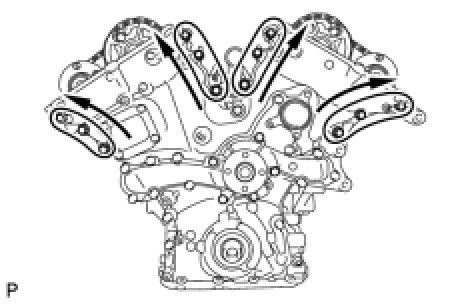

Fully tighten the 12 bolts as shown in the illustration.





Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

HINT
Tighten the bolts in order from lower to upper as shown in the illustration.
