Installation

HEATING / AIR CONDITIONING: SOLAR SENSOR: INSTALLATION

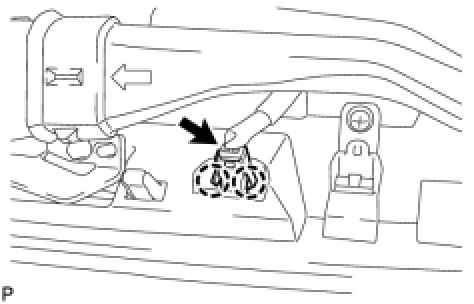

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

(a) Engage the 2 claws and install the automatic light control sensor.





(b) Connect the connector.

2. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

HINT
Refer to the procedure from Install Instrument Panel Safety Pad Assembly Installation.
