Installation

2UR-GSE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: INSTALLATION

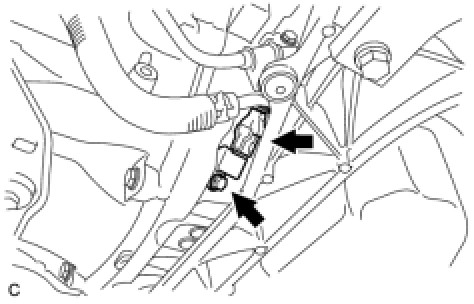

1. INSTALL CRANK POSITION SENSOR





(a) Install the crank position sensor with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the crank position sensor connector.

2. INSPECT FOR OIL LEAK

3. INSTALL NO. 2 ENGINE UNDER COVER
