Service Data



Front

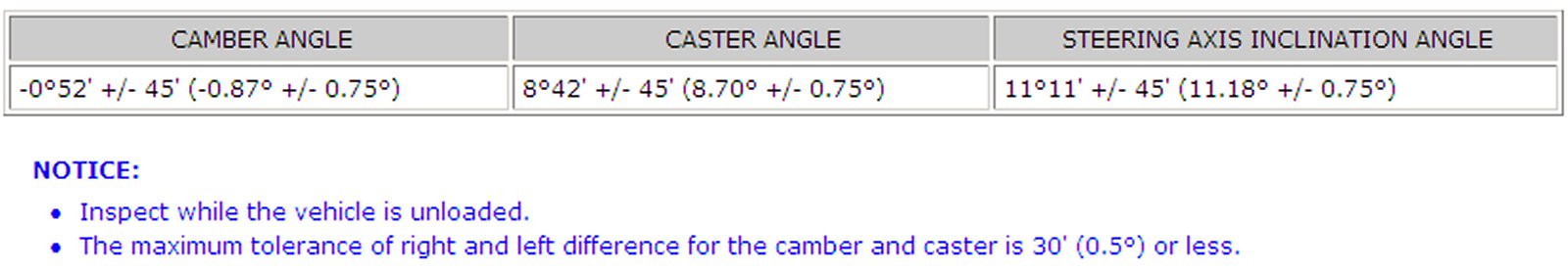

Camber, Caster & Steering axis (unloaded vehicle)

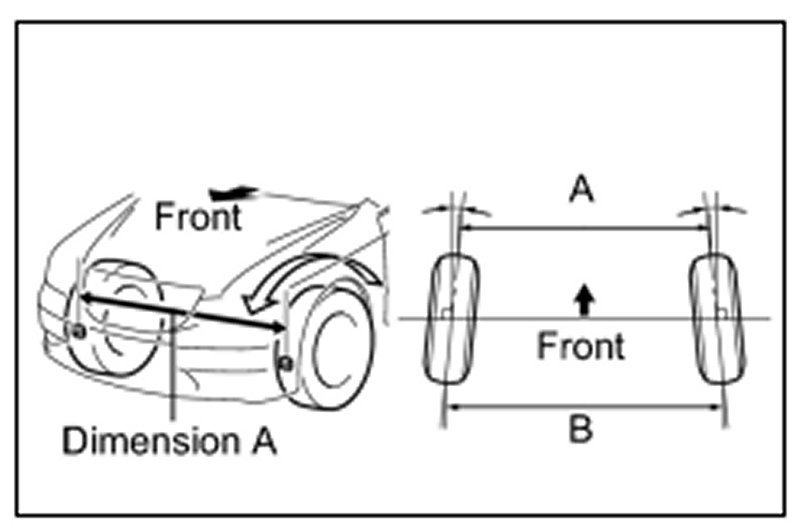

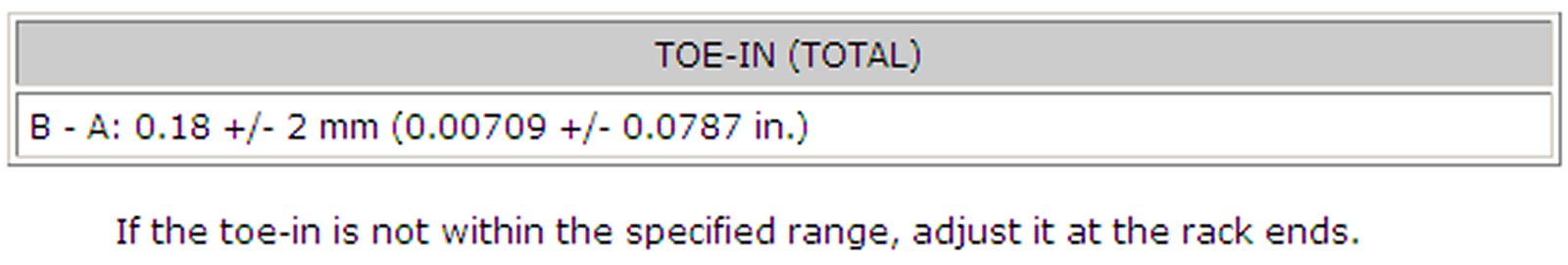

Toe-in (unloaded vehicle)

Rear

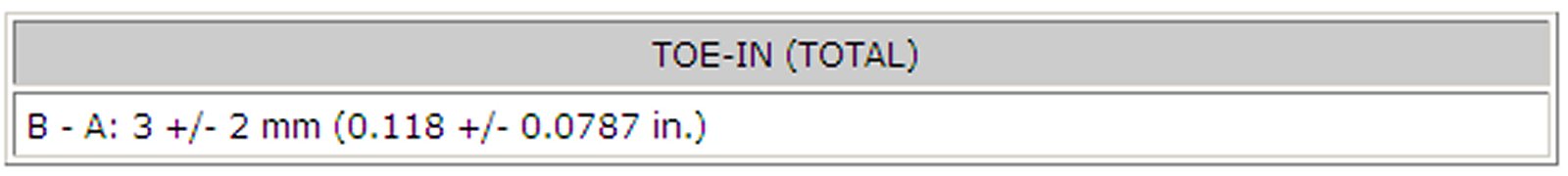

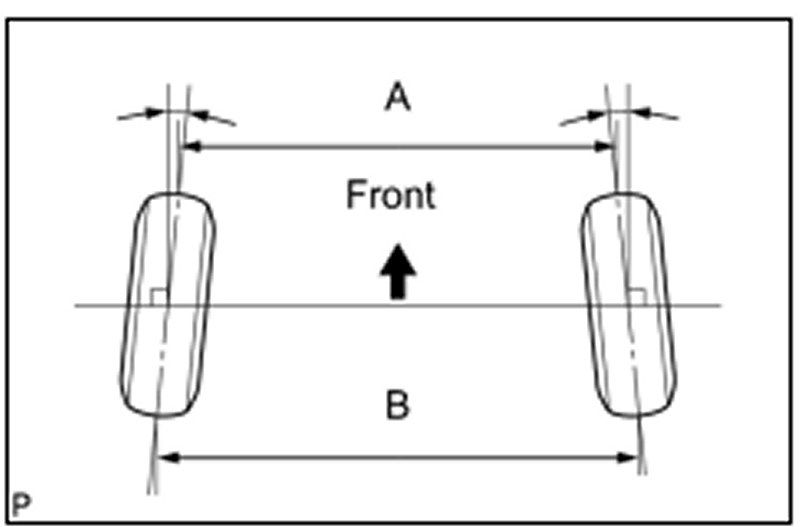

Toe-in (unloaded vehicle)

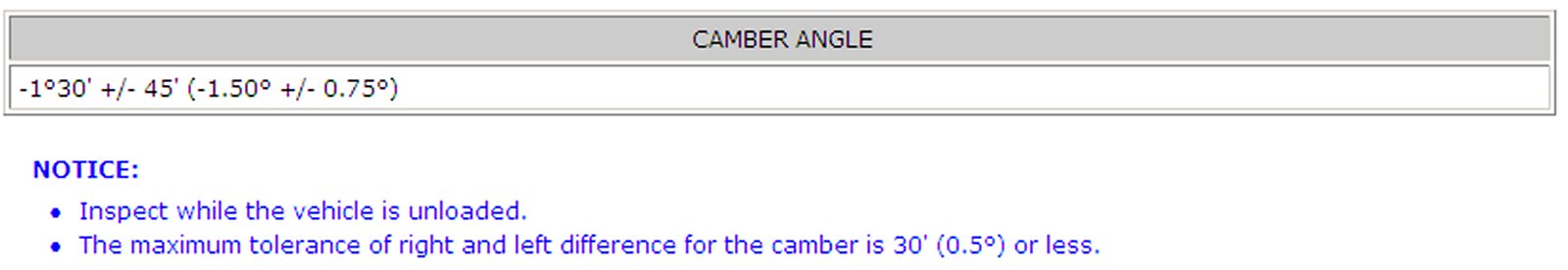

Camber (unloaded vehicle)
