Shift Interlock Control Module: Locations

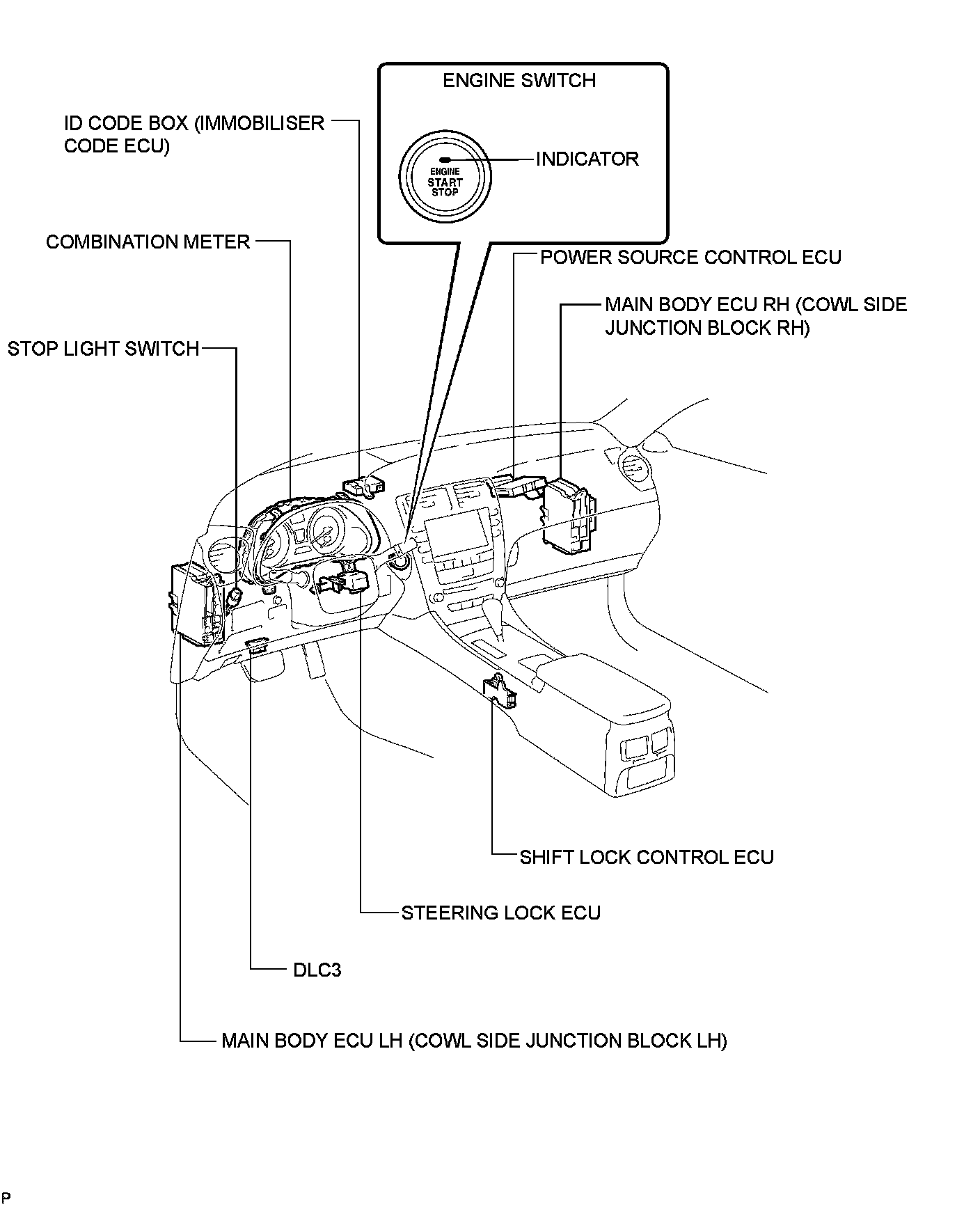

THEFT DETERRENT / KEYLESS ENTRY: SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function): PARTS LOCATION
