Millimeter Wave Radar Sensor: Components: Illustration

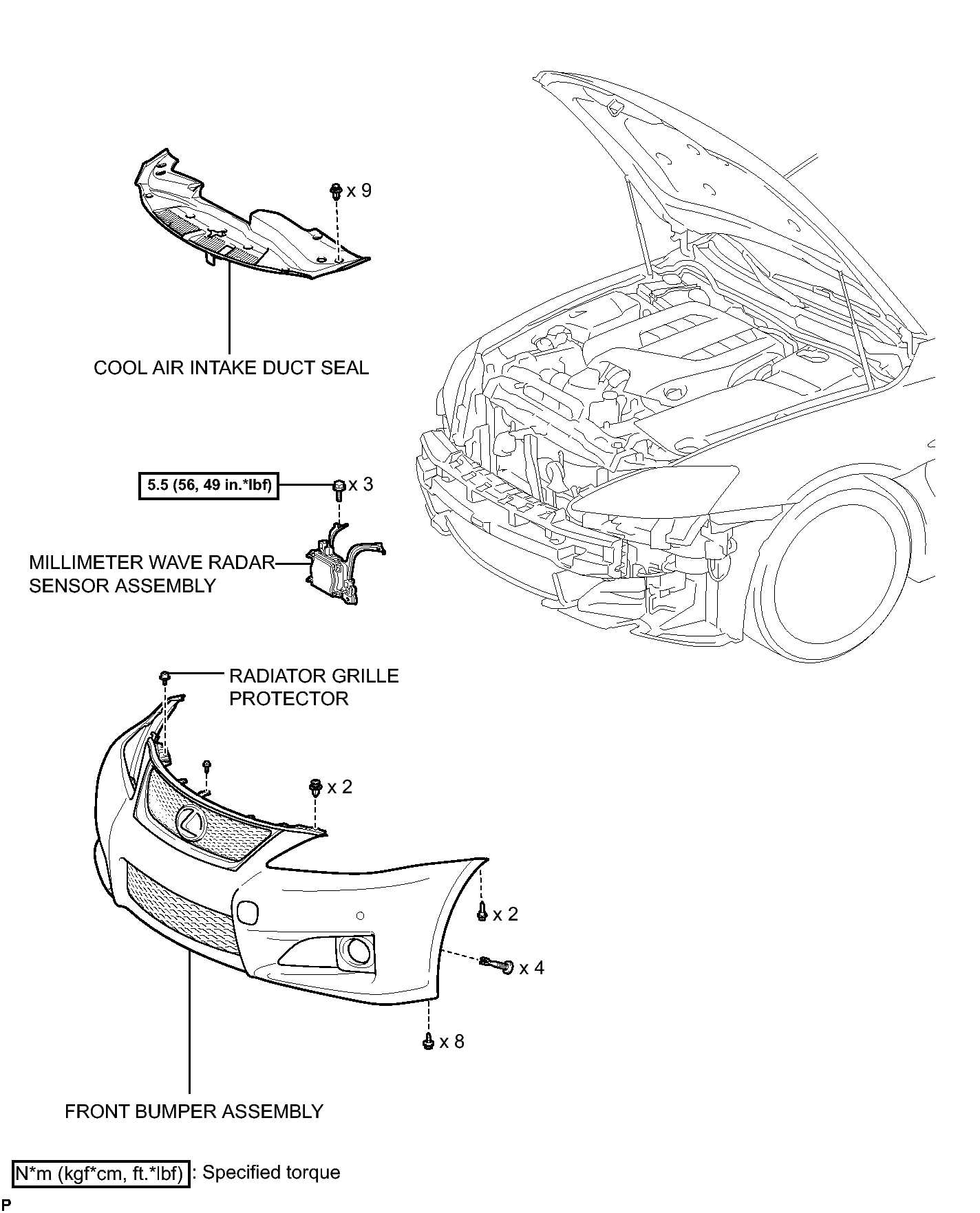

Fig 1: Identifying Millimeter Wave Radar Sensor Replacement Components With Torque Specifications
GTY359214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
