Oil Pump: Components: Illustration

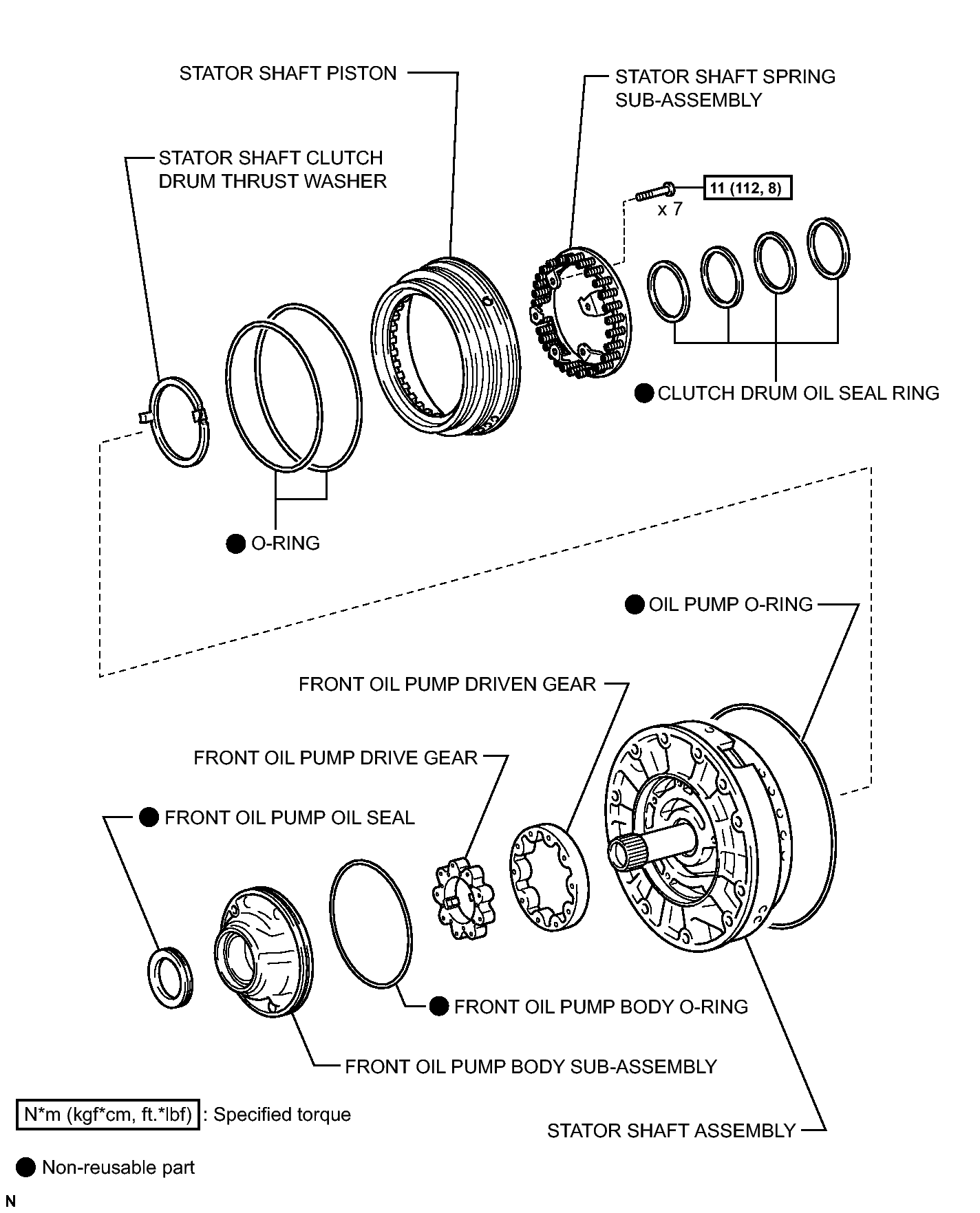

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications
GTY107361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
