Radiator Cooling Fan Control Module: Locations

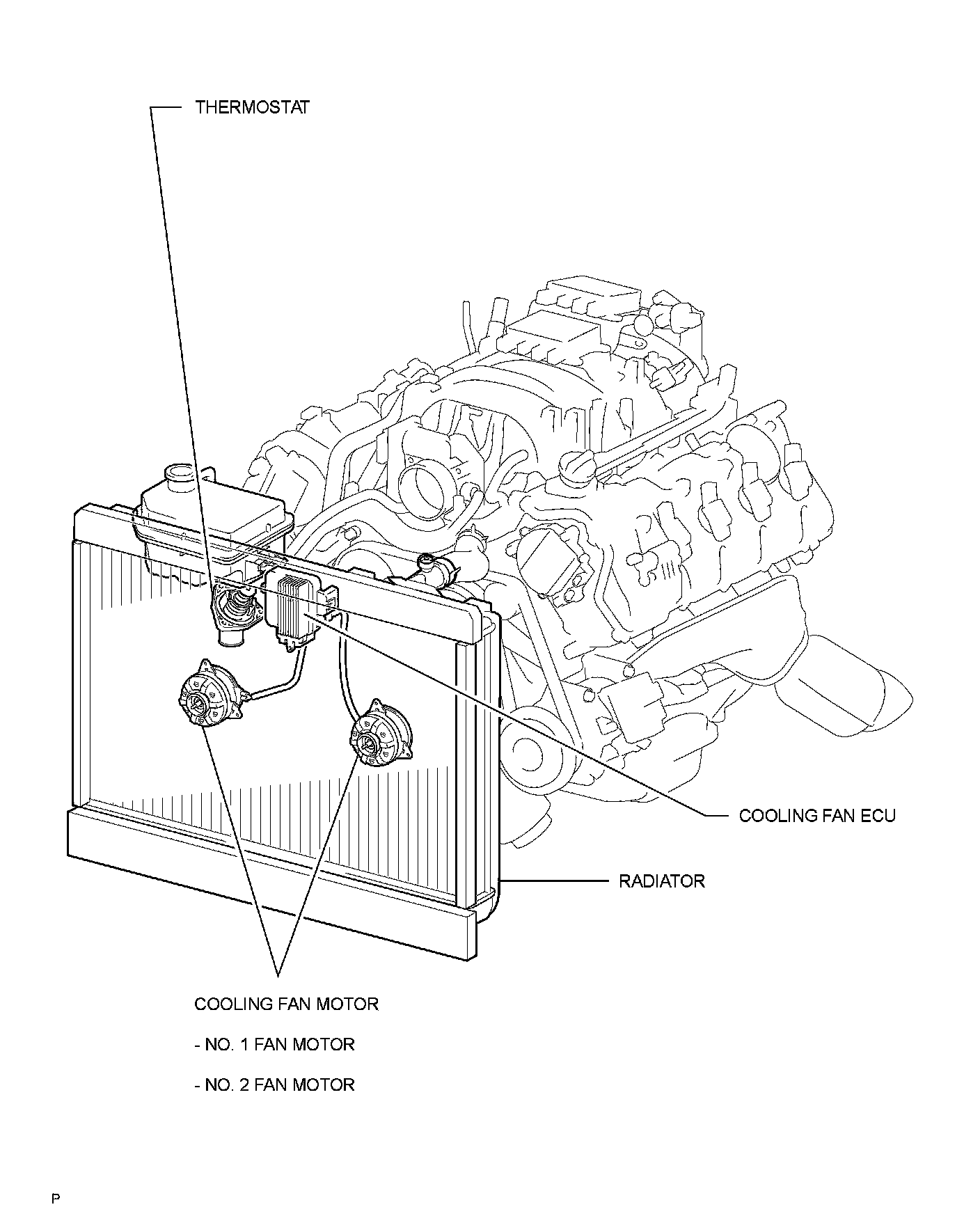

1UR-FSE COOLING: COOLING SYSTEM: PARTS LOCATION
Engine Compartment:
