Installation





WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSTALLATION

1. INSTALL MASTER SWITCH ASSEMBLY

(a) Install the master switch assembly with the 3 screws.

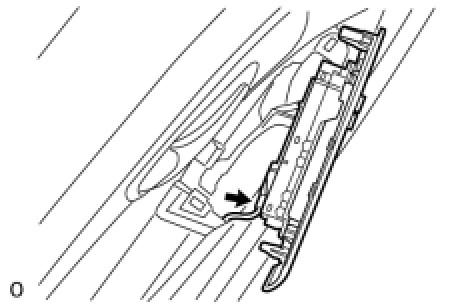

(b) Connect the connector.

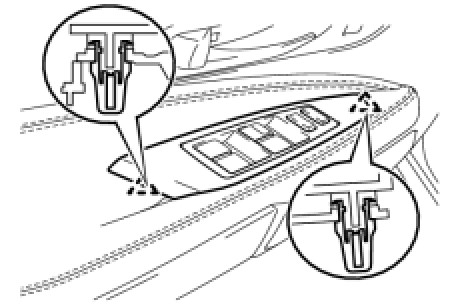

(c) Attach the 2 clips to install the armrest base panel assembly with the 2 clips.
