Dc/Dc Converter: Components: Illustration

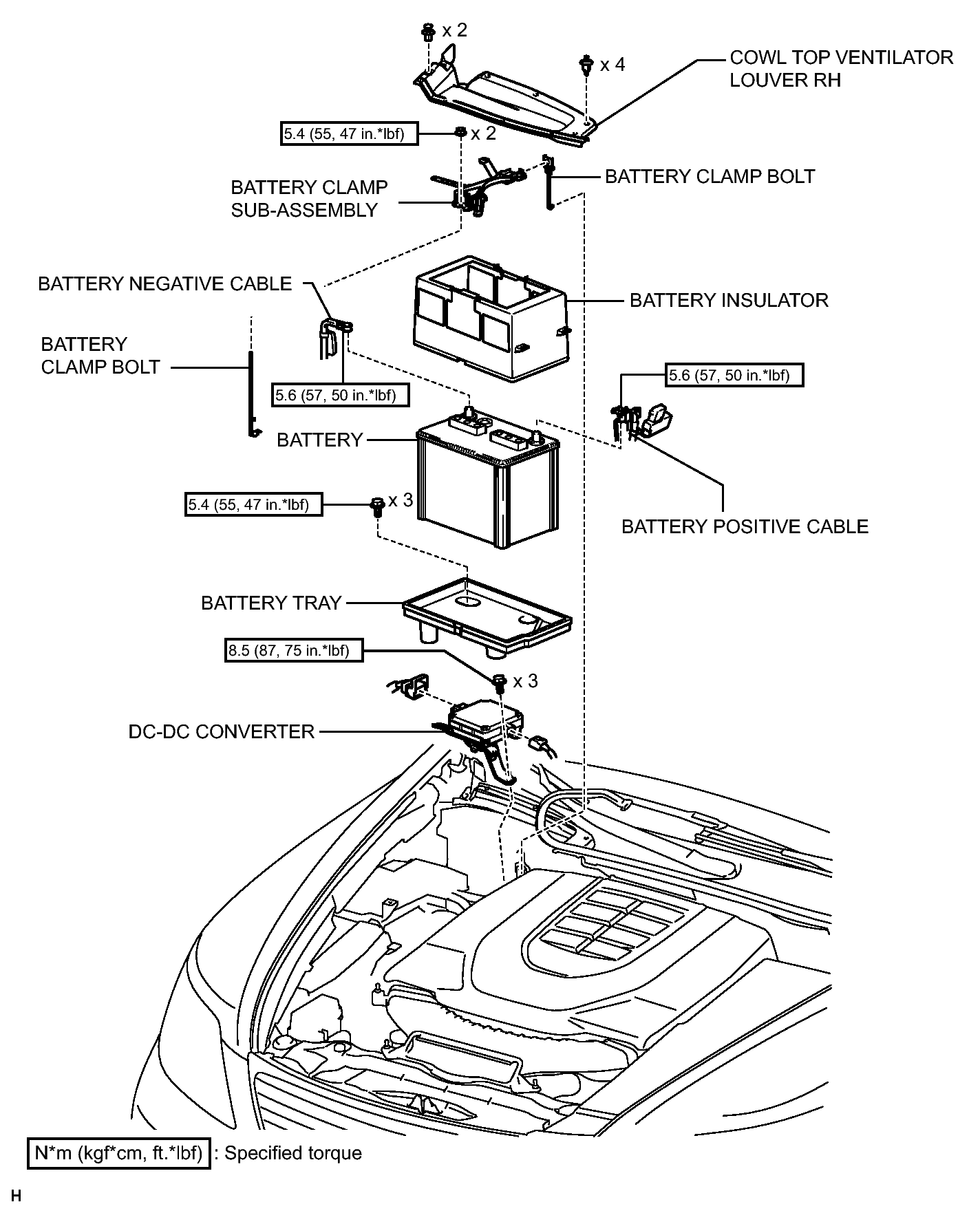

Fig 1: Identifying DC/DC Converter Replacement Components With Torque Specifications
GTY281805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
