Suspension Control Ecu: Components: Illustration

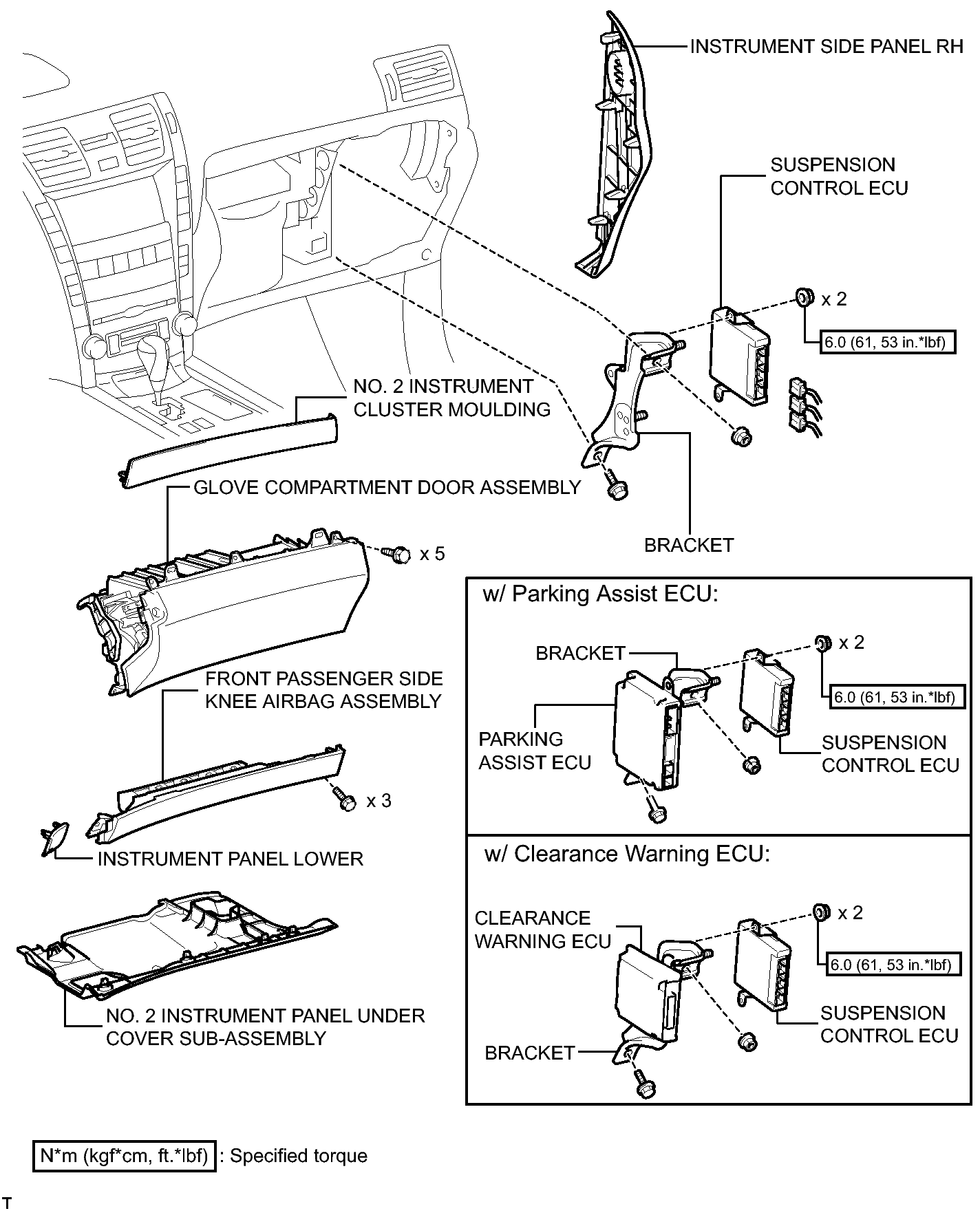

Fig 1: Identifying Suspension Control ECU Replacement Components With Torque Specifications
GTY289367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
