Audio And Visual System (Diagnostics - Introduction)
>>
Audio And Visual System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram
MOST NETWORK COMMUNICATION LINE

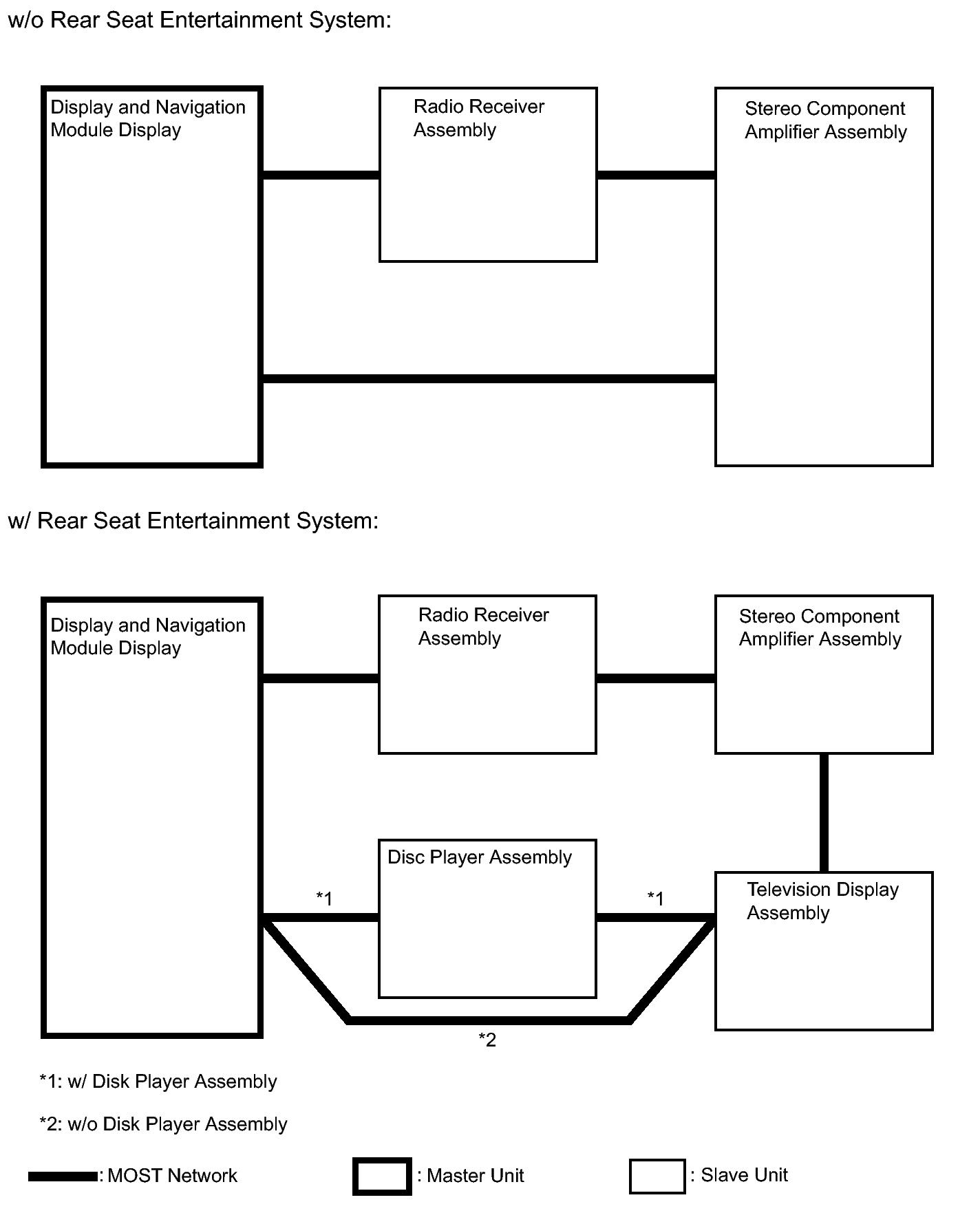

Fig 1: MOST Network Communication Line - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

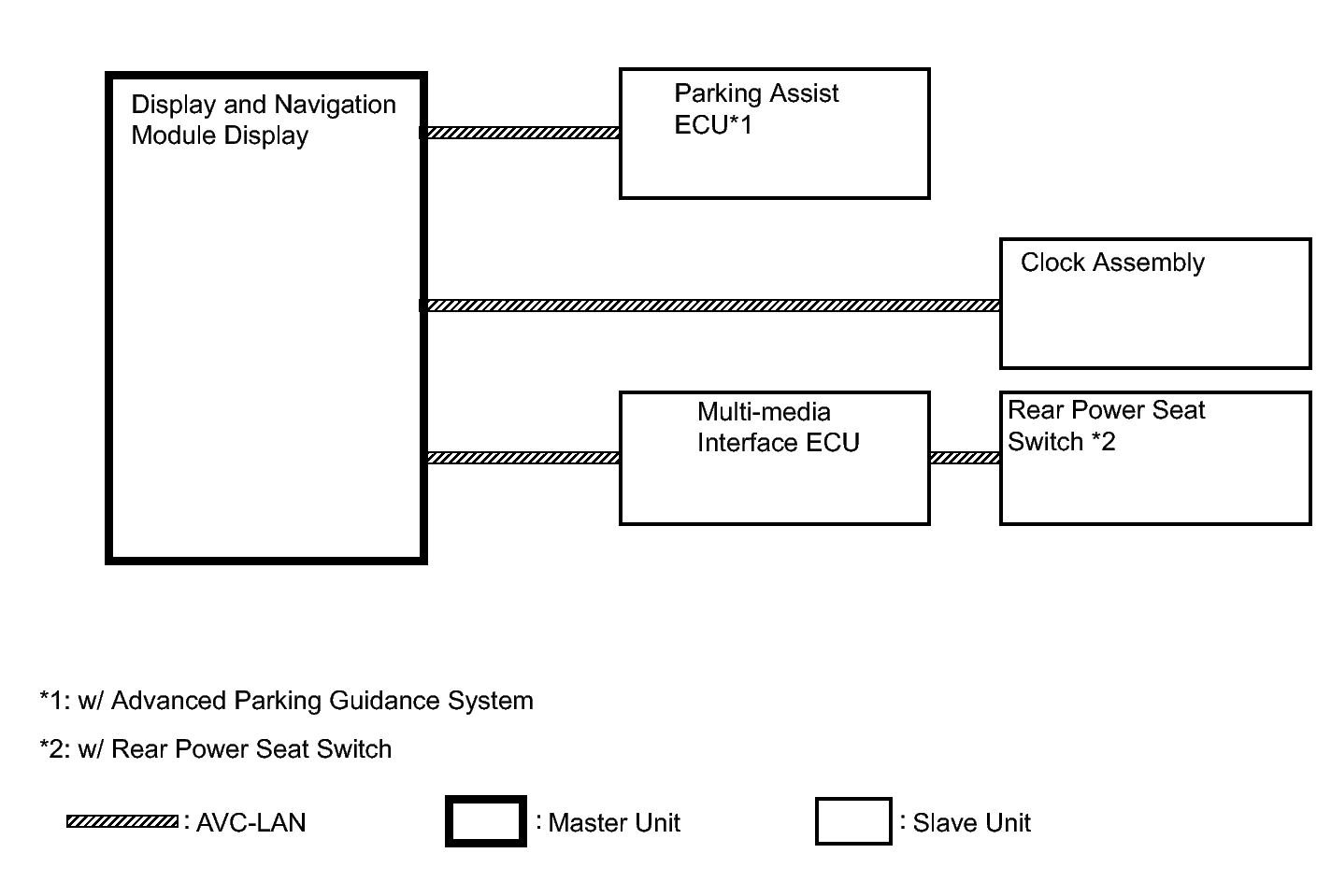

AVC-LAN COMMUNICATION LINE
Fig 2: Identifying Audio And Visual System (W/ Multi-Display) System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHER (w/ Navigation System [for DVD])
w/ Rear Seat Entertainment System

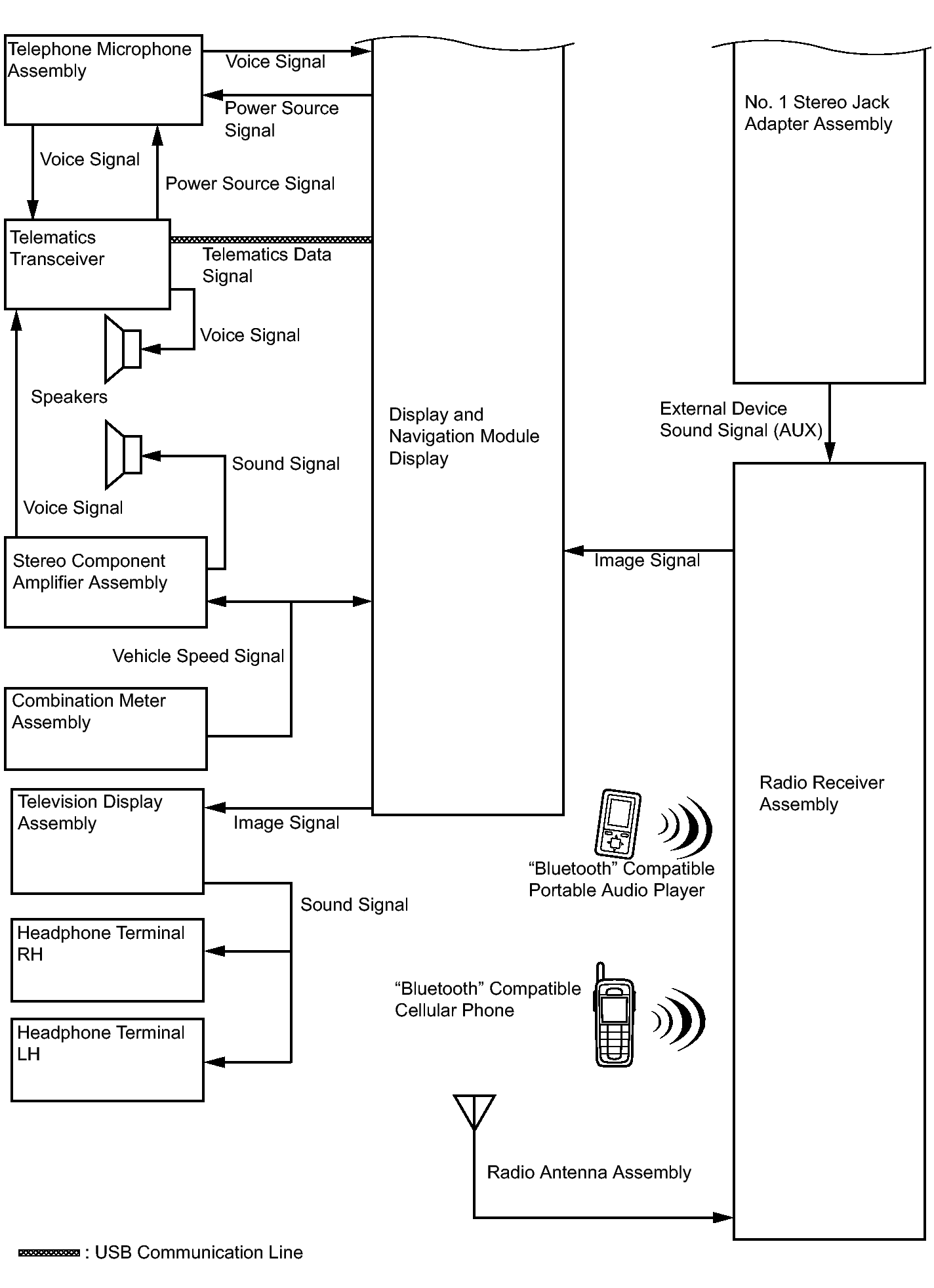

Fig 3: Identifying A/V System Diagram (W/ Navigation, Rear Seat Entertainment System & DVD) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

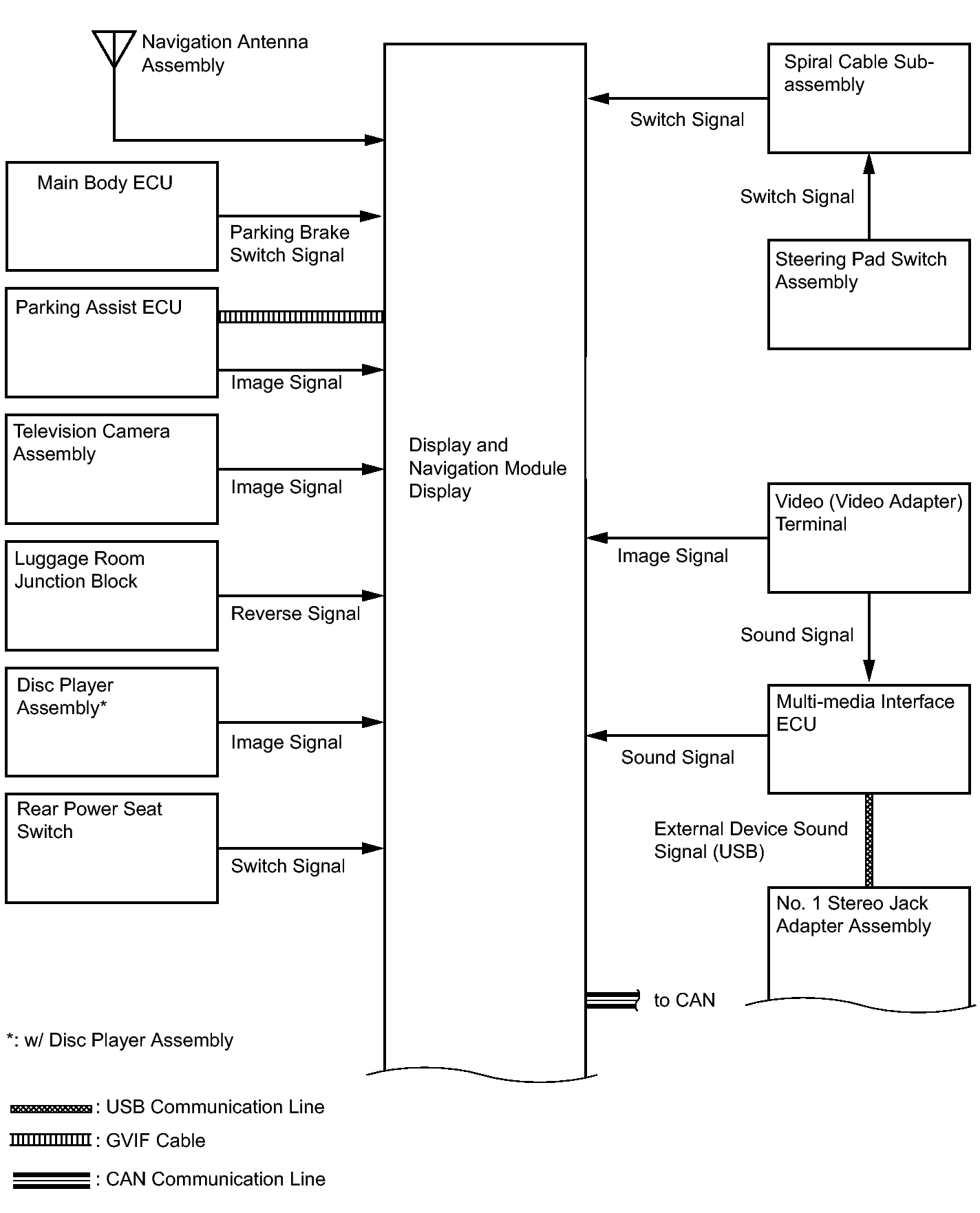

Fig 4: Identifying A/V System Diagram (W/ Navigation, Rear Seat Entertainment System & DVD) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o Rear Seat Entertainment System

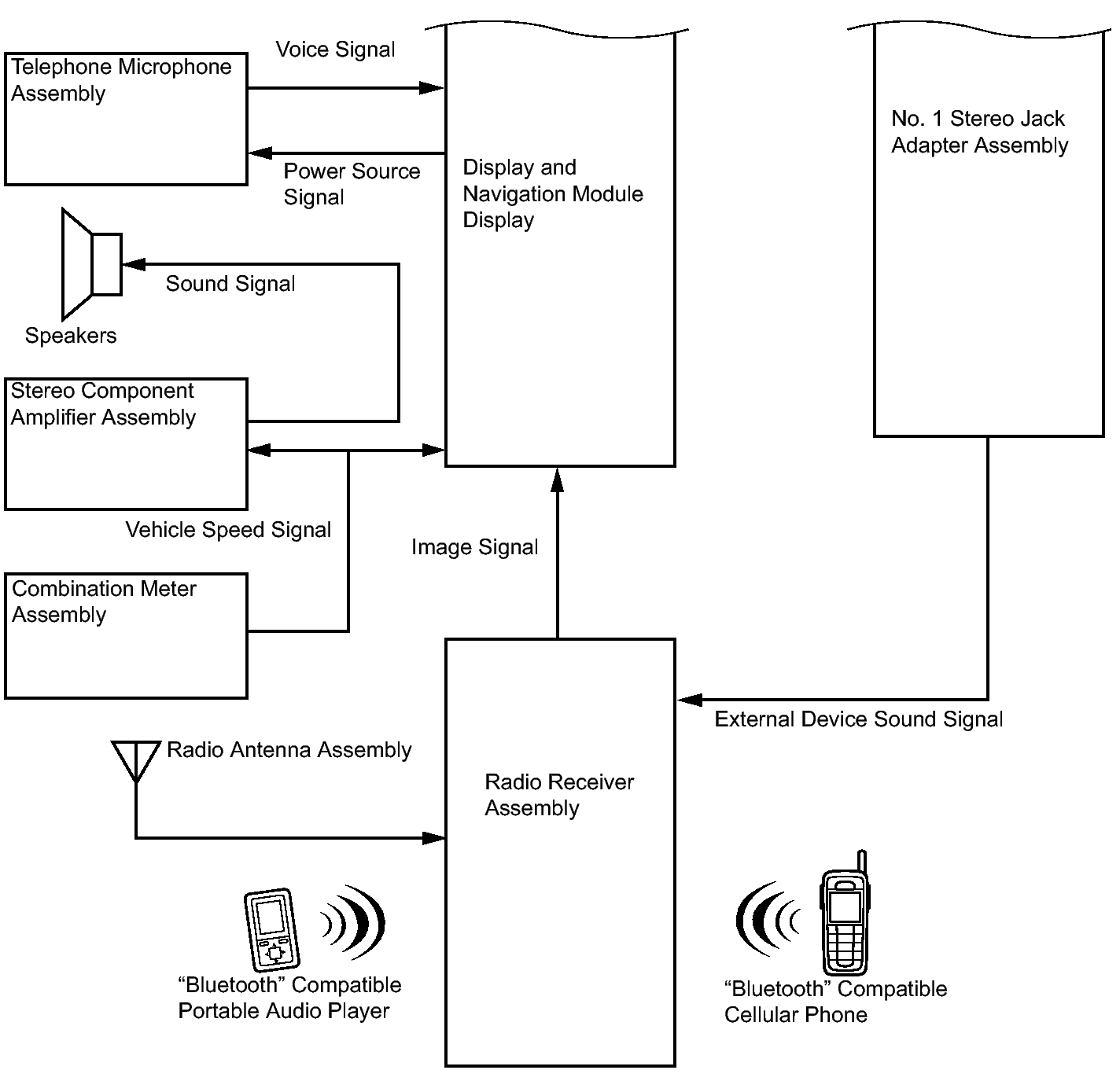

Fig 5: Identifying A/V System Diagram (W/O Rear Seat Entertainment System) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

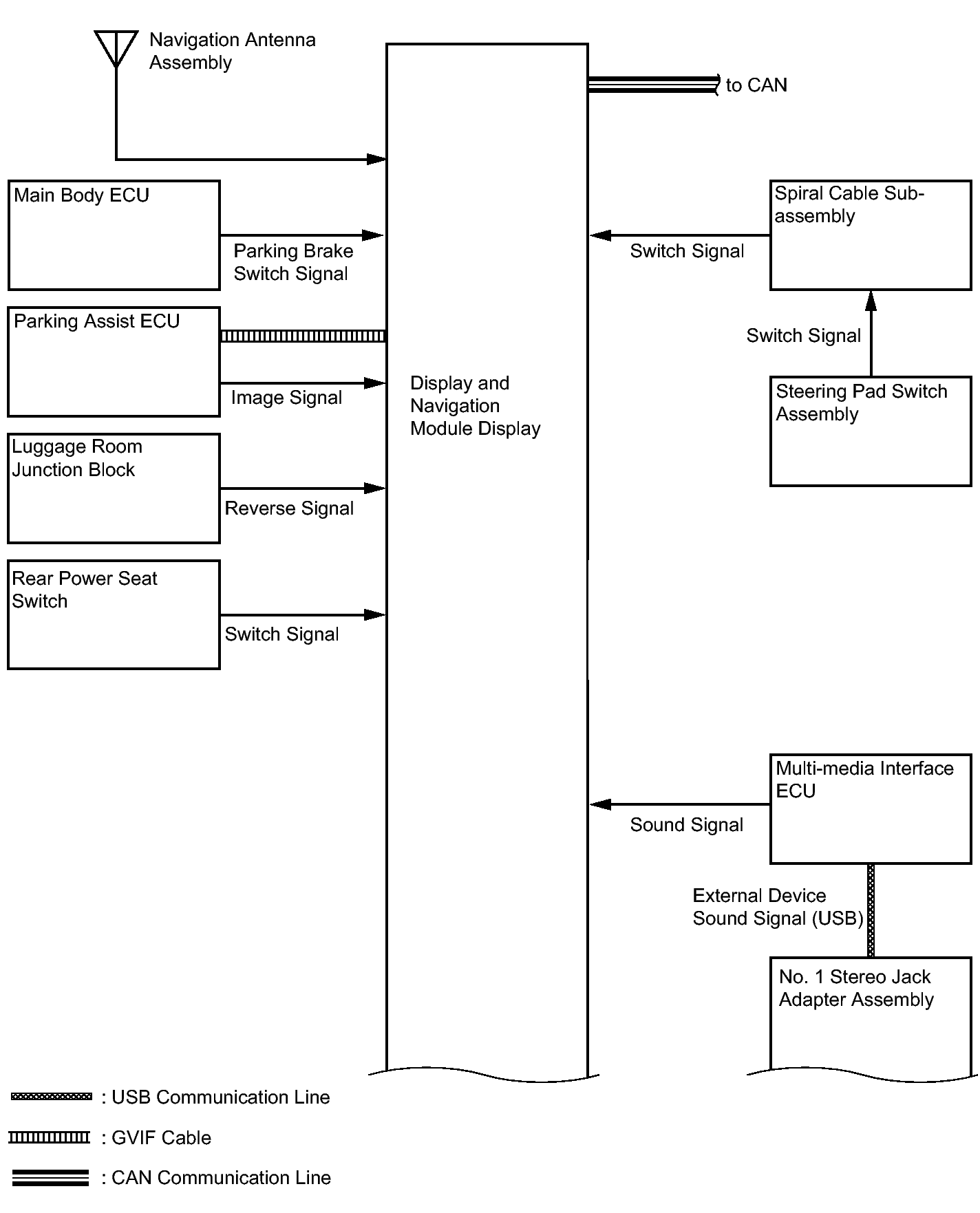

Fig 6: Identifying A/V System Diagram (W/O Rear Seat Entertainment System) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHER (w/ Navigation System [for HDD])
w/ Rear Seat Entertainment System

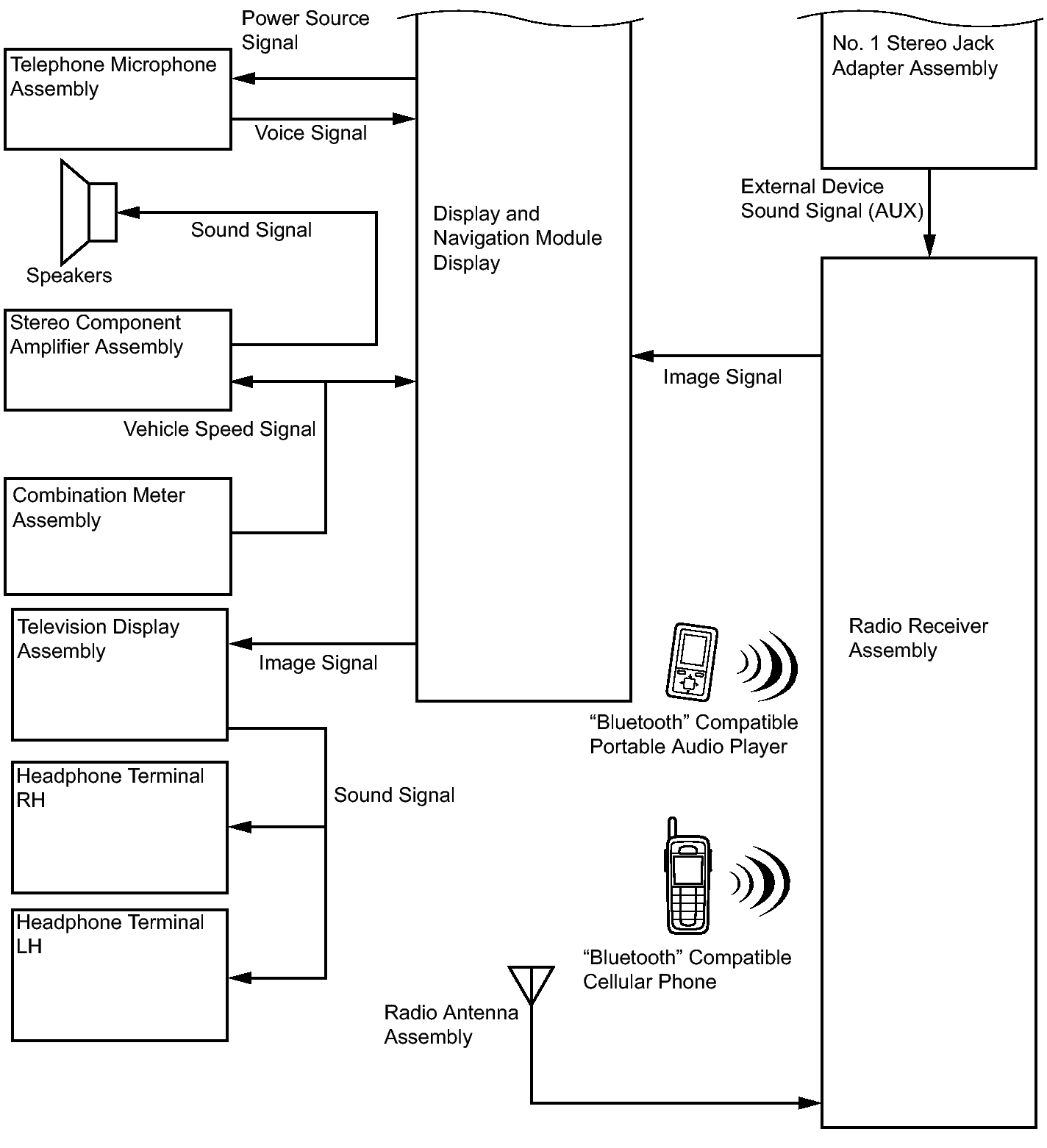

Fig 7: Identifying A/V System Diagram (W/ Navigation, Rear Seat Entertainment System & HDD) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

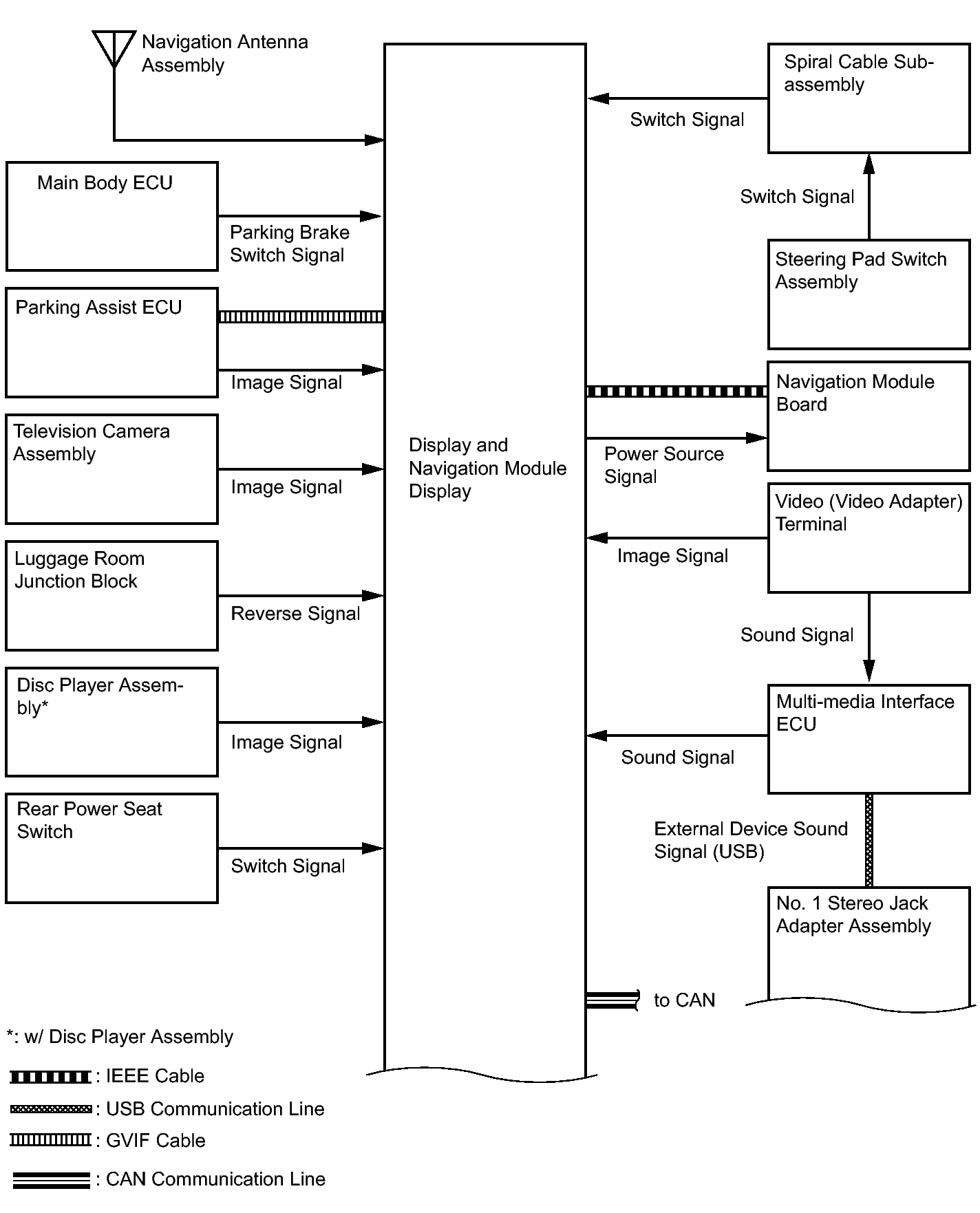

Fig 8: Identifying A/V System Diagram (W/ Navigation, Rear Seat Entertainment System & HDD) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o Rear Seat Entertainment System

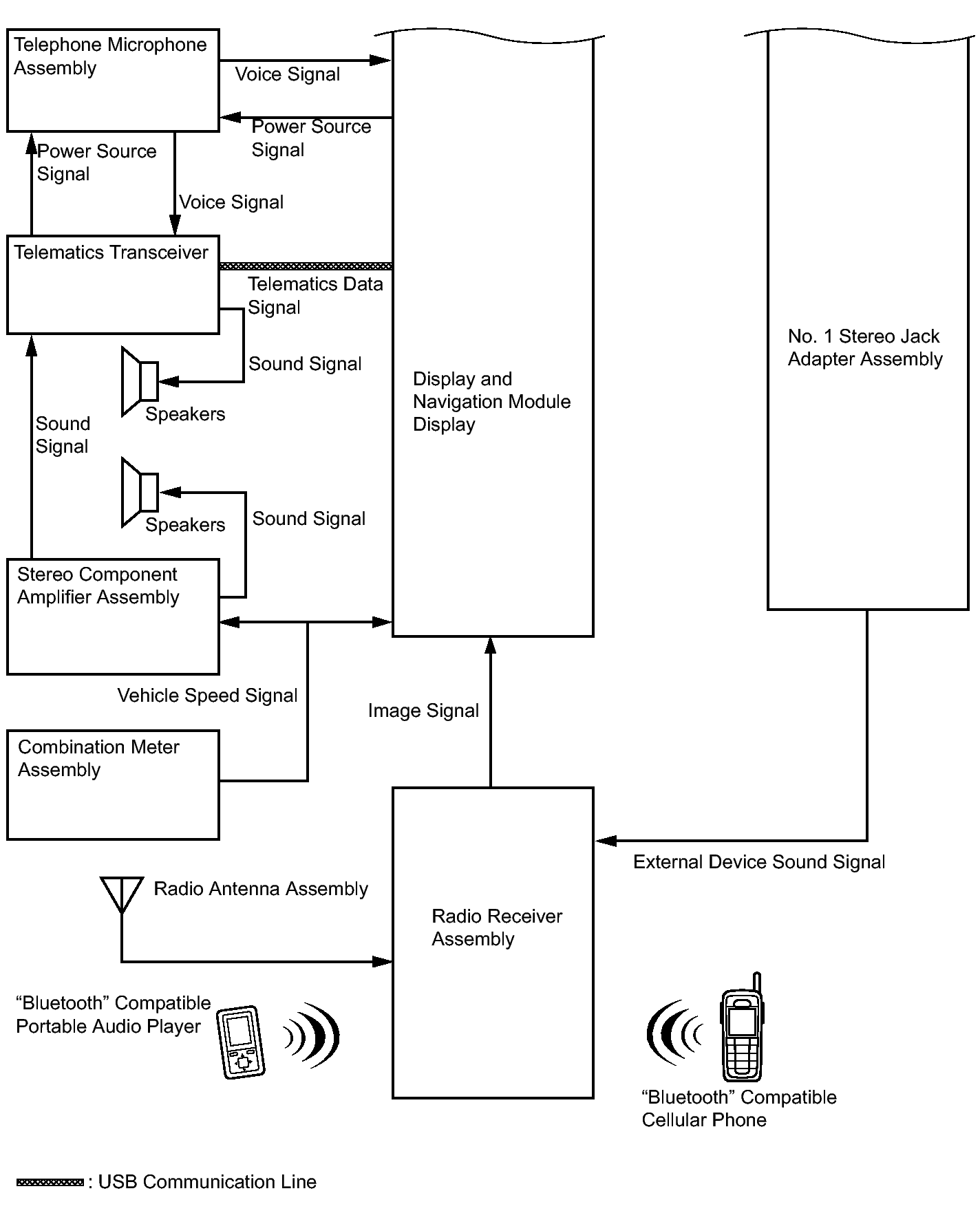

Fig 9: Identifying A/V System (for HDD) - w/o Rear Seat Entertainment - System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

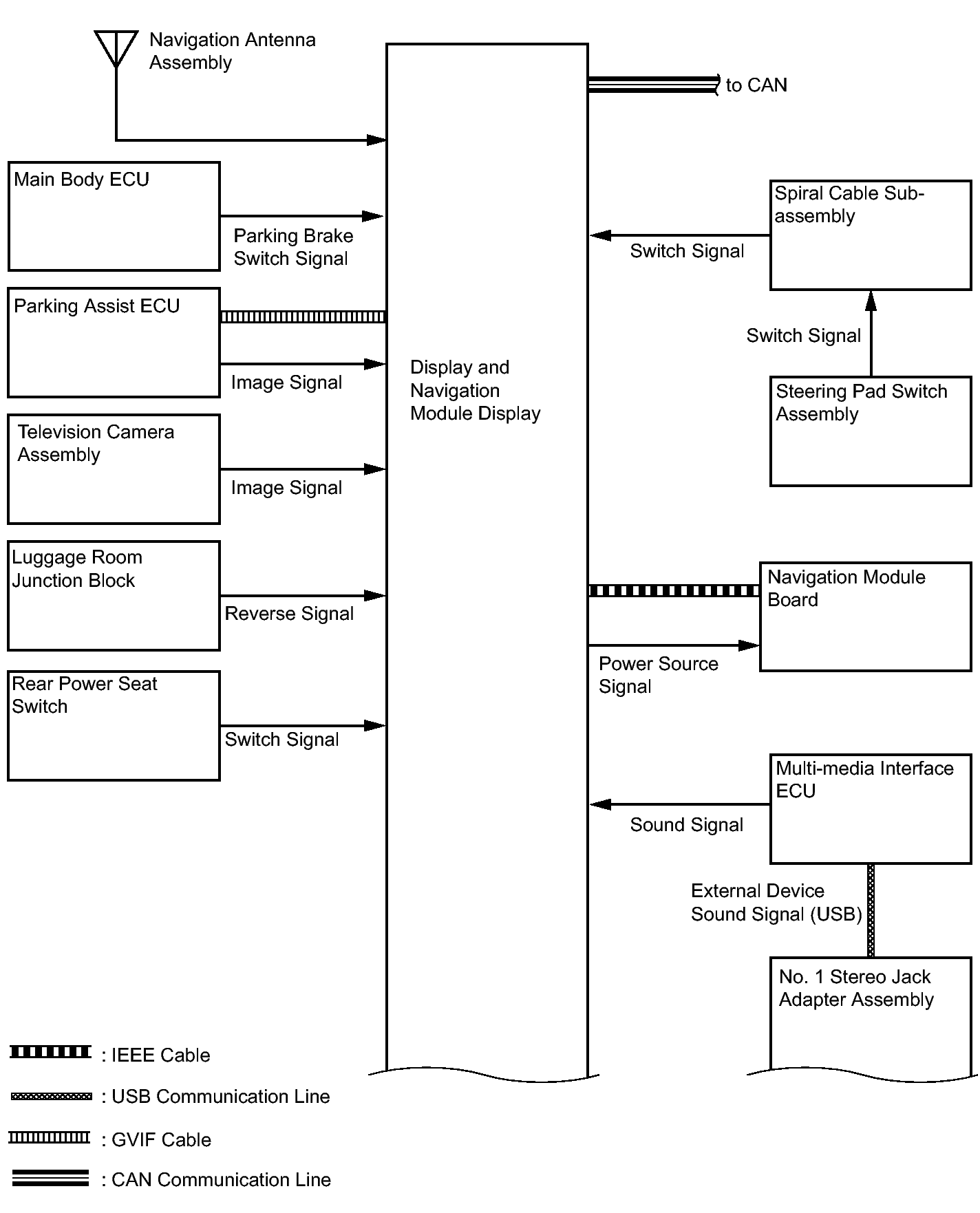

Fig 10: Identifying A/V System Diagram (W/O Rear Seat Entertainment System) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
