Combination Meter: Components: Illustration

Fig 1: Identifying Combination Meter Replacement Components (1 Of 3)
GTY279372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

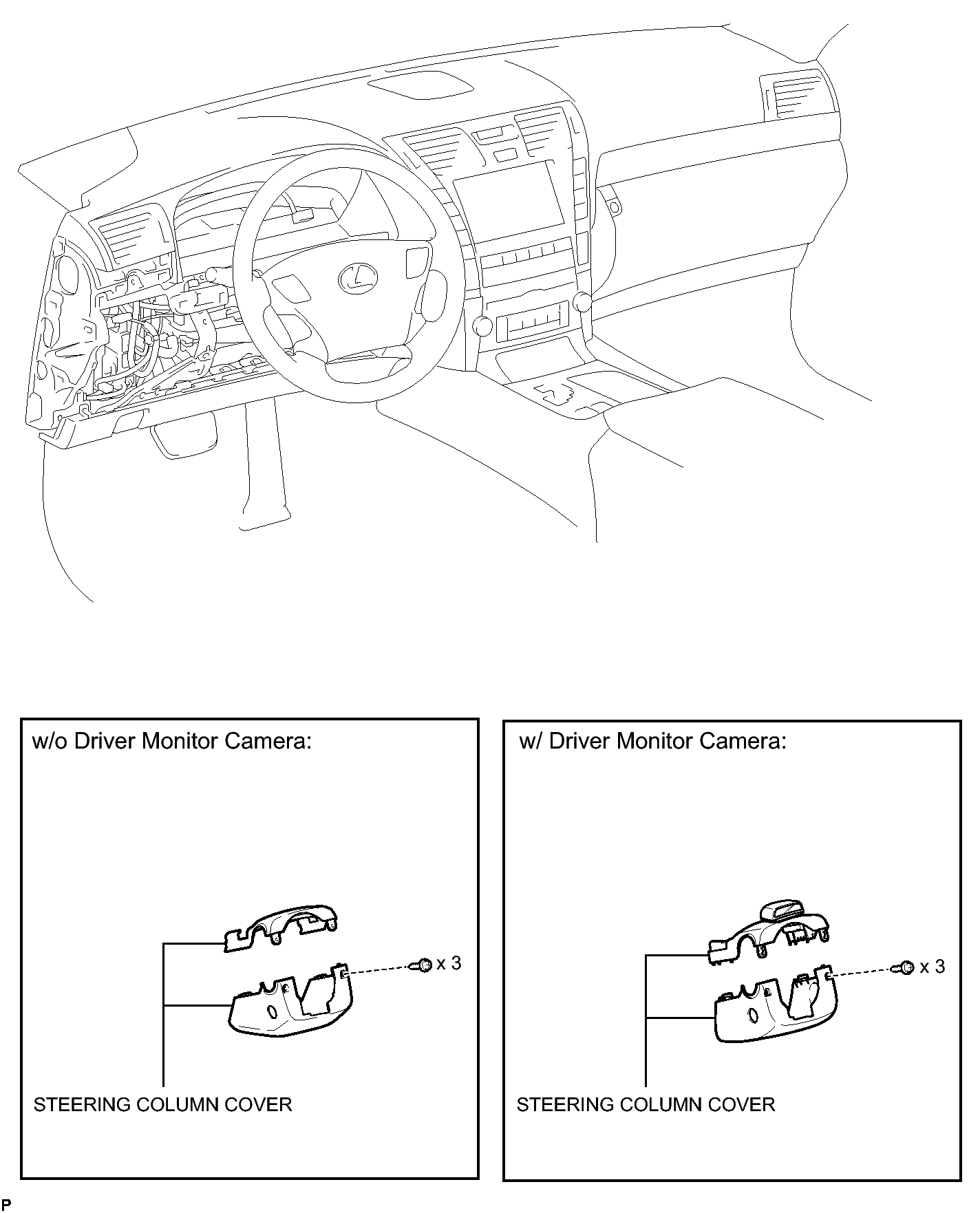

Fig 1: Identifying Combination Meter Replacement Components (2 Of 3)
GTY153126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

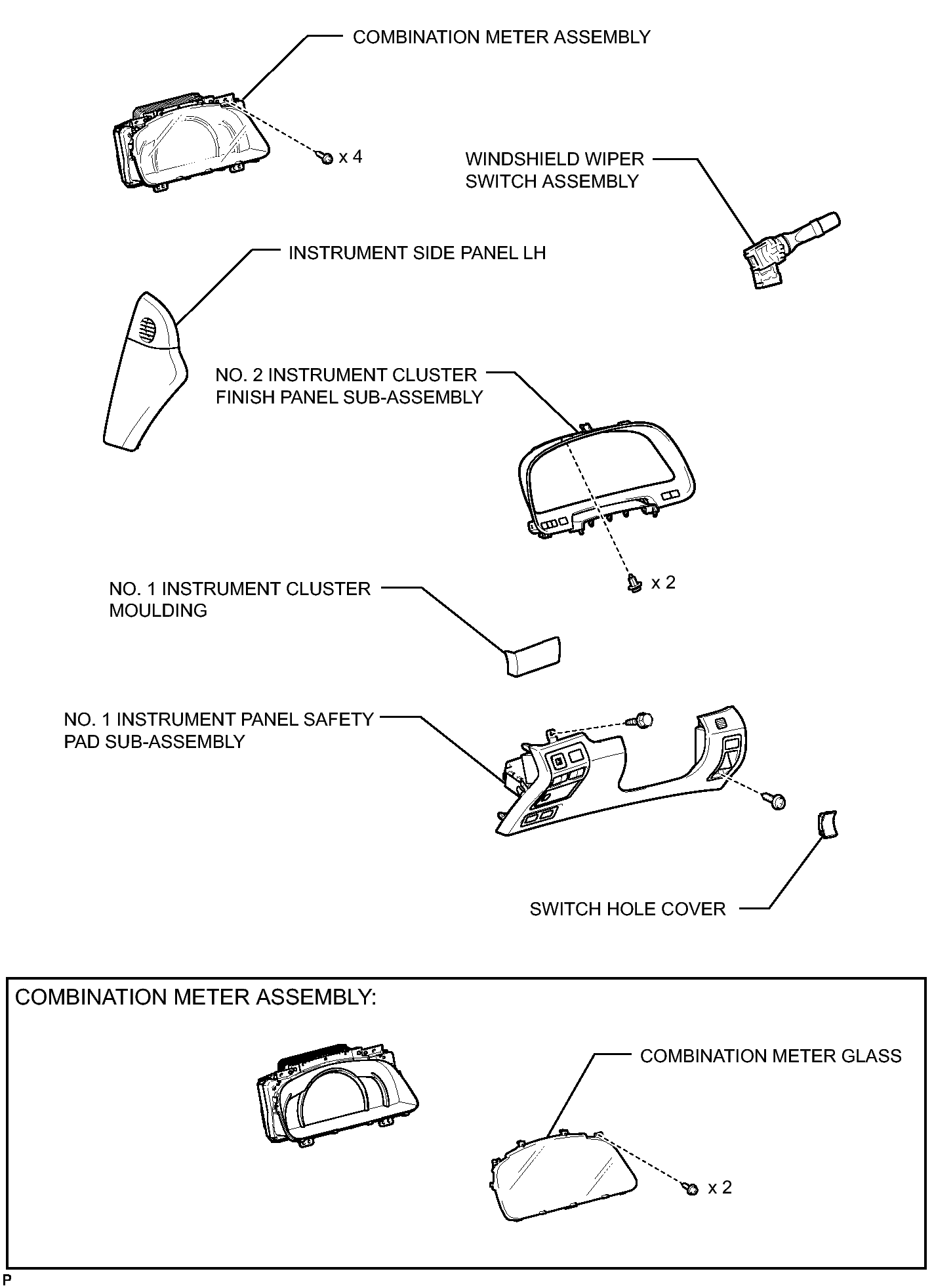

Fig 1: Identifying Combination Meter Replacement Components (3 Of 3)
GTY257113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
