Rear Active Stabilizer Control Ecu: Components: Illustration

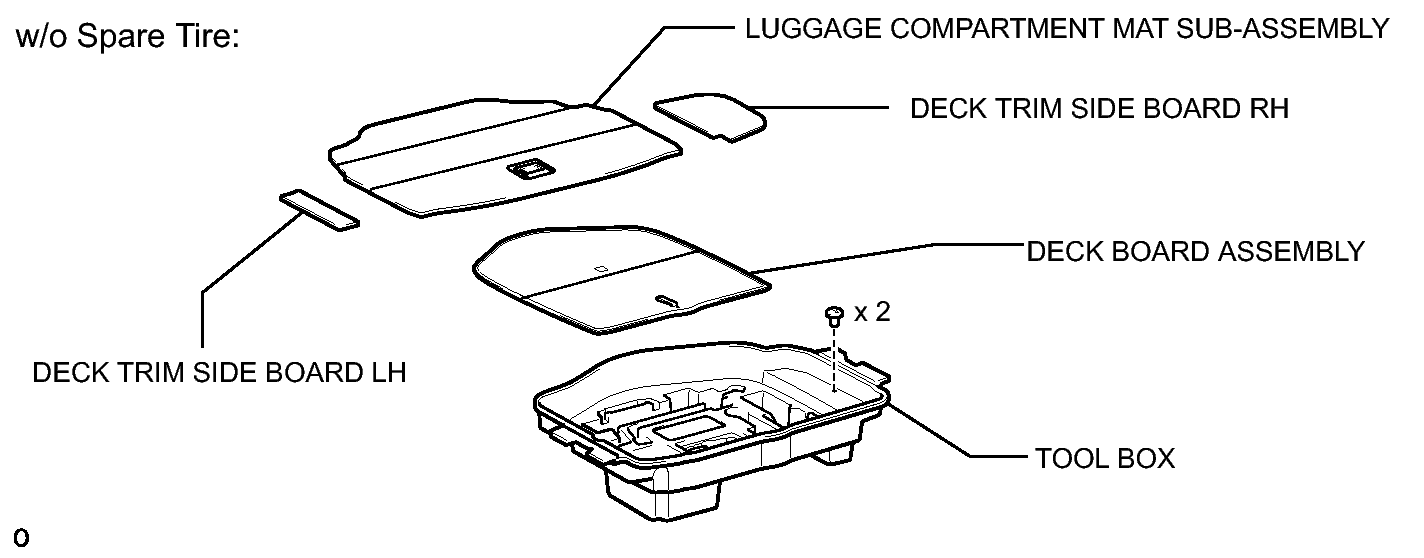

Fig 1: Identifying Rear Active Stabilizer Control ECU Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Active Stabilizer Control ECU Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Active Stabilizer Control ECU Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Active Stabilizer Control ECU Replacement Components (4 Of 6)

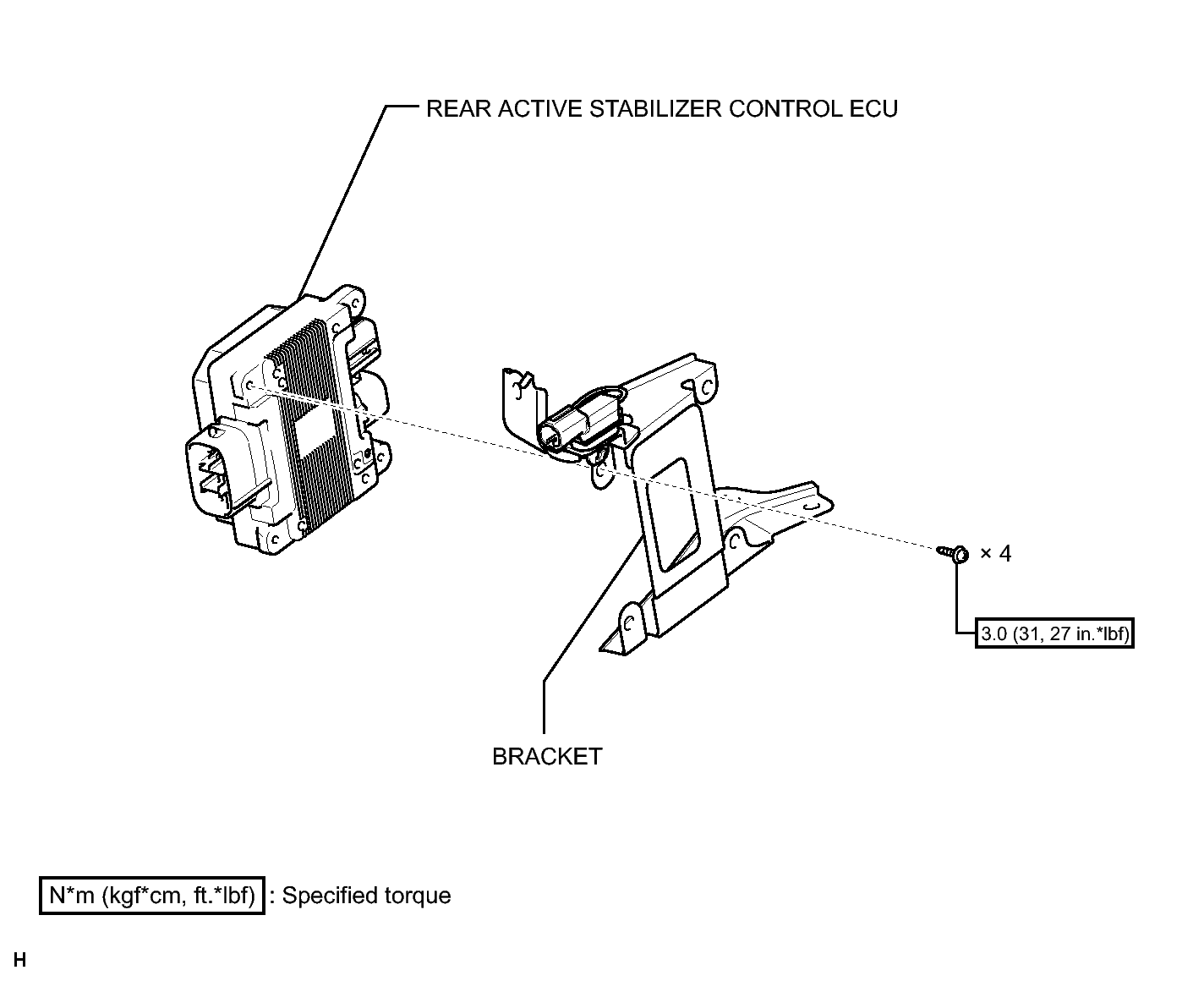

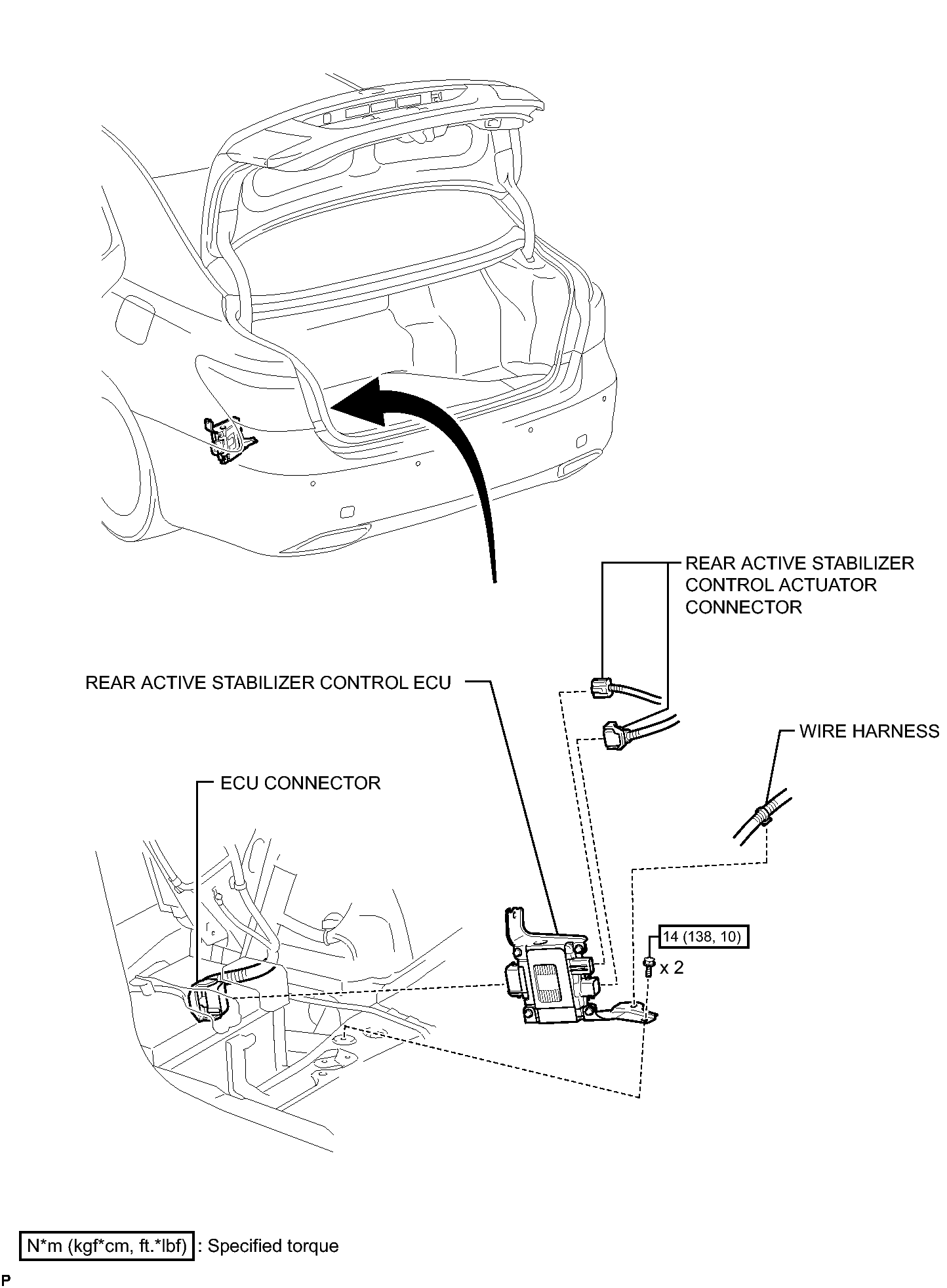

Fig 1: Identifying Rear Active Stabilizer Control ECU Replacement Components With Torque Specifications (5 Of 6)

Fig 1: Identifying Rear Active Stabilizer Control ECU Replacement Components With Torque Specifications (6 Of 6)
