Removal

2GR-FE ENGINE CONTROL: KNOCK SENSOR: REMOVAL

1. REMOVE INTAKE MANIFOLD

(a) Remove the intake manifold Removal.

2. REMOVE KNOCK CONTROL SENSOR

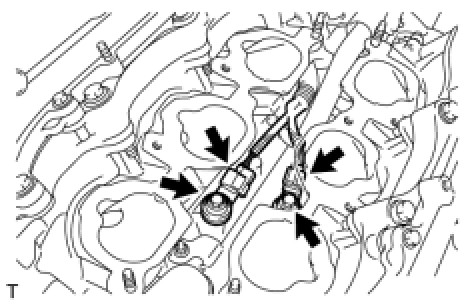

(a) Disconnect the 2 knock control sensor connectors.





(b) Remove the 2 bolts and 2 knock control sensors.
