Timing Cover

Timing Chain Cover

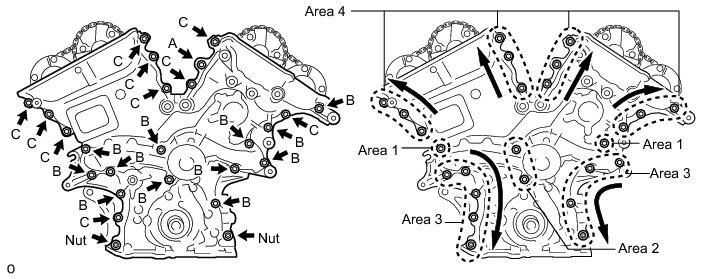

Tighten the bolts and nuts from top to bottom as shown in the illustration.









Area 1 and area 2 21 Nm (214 kgf-cm, 15 ft-lbf)
Area 3 21 Nm (214 kgf-cm, 15 ft-lbf)

Area 4:
Bolt A 43 Nm (438 kgf-cm, 32 ft-lbf)
Except bolt A 21 Nm (214 kgf-cm, 15 ft-lbf)
