Service Data

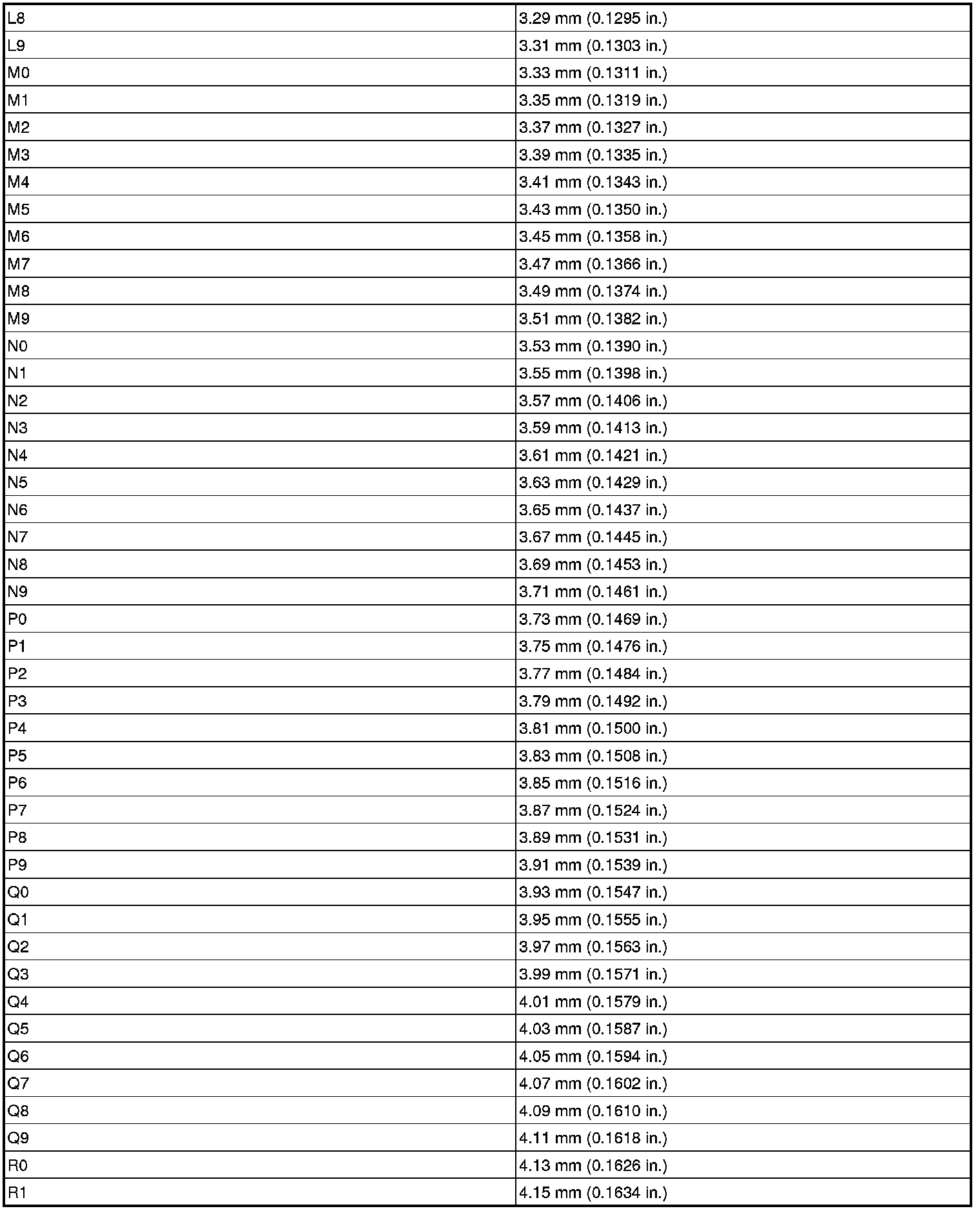

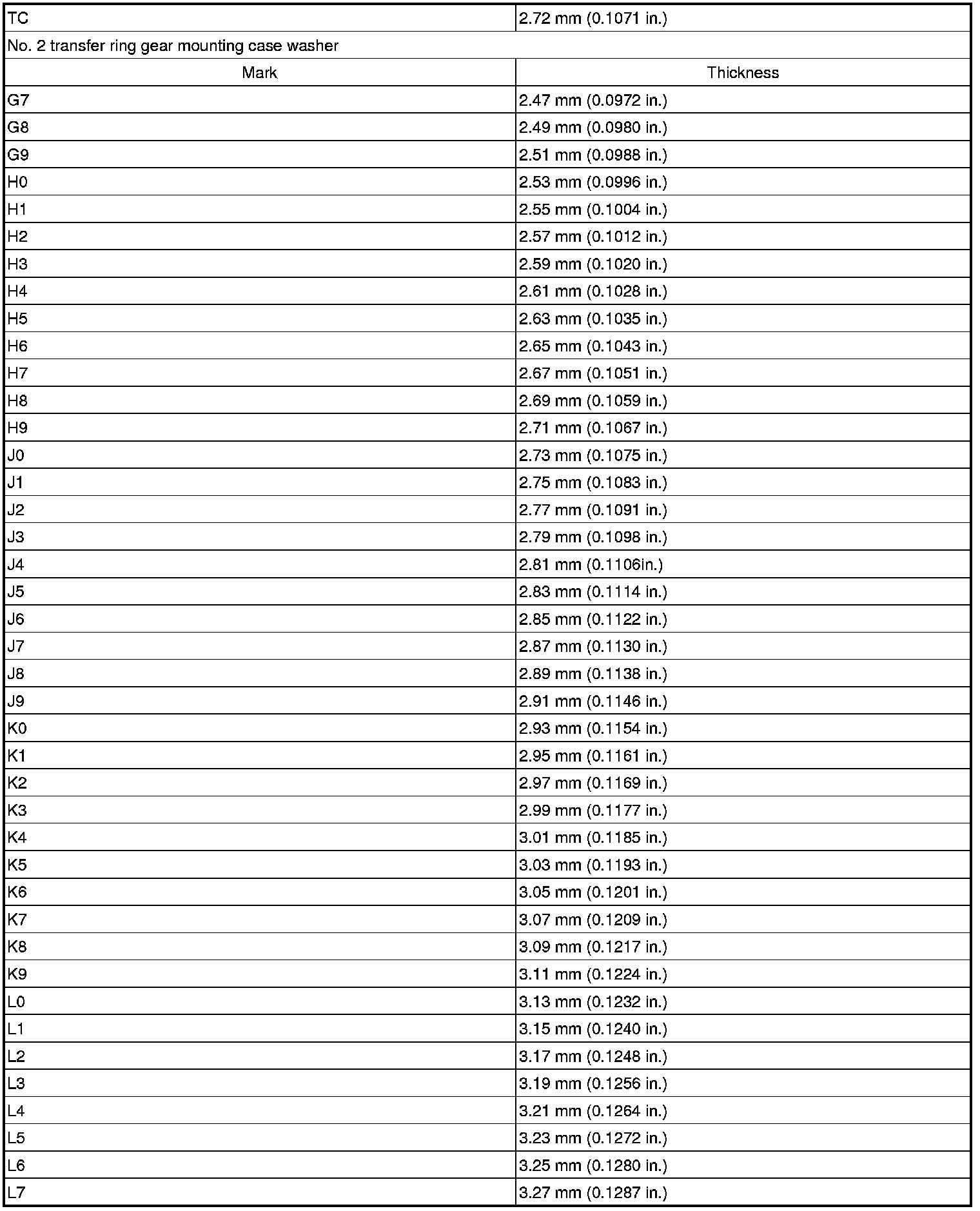

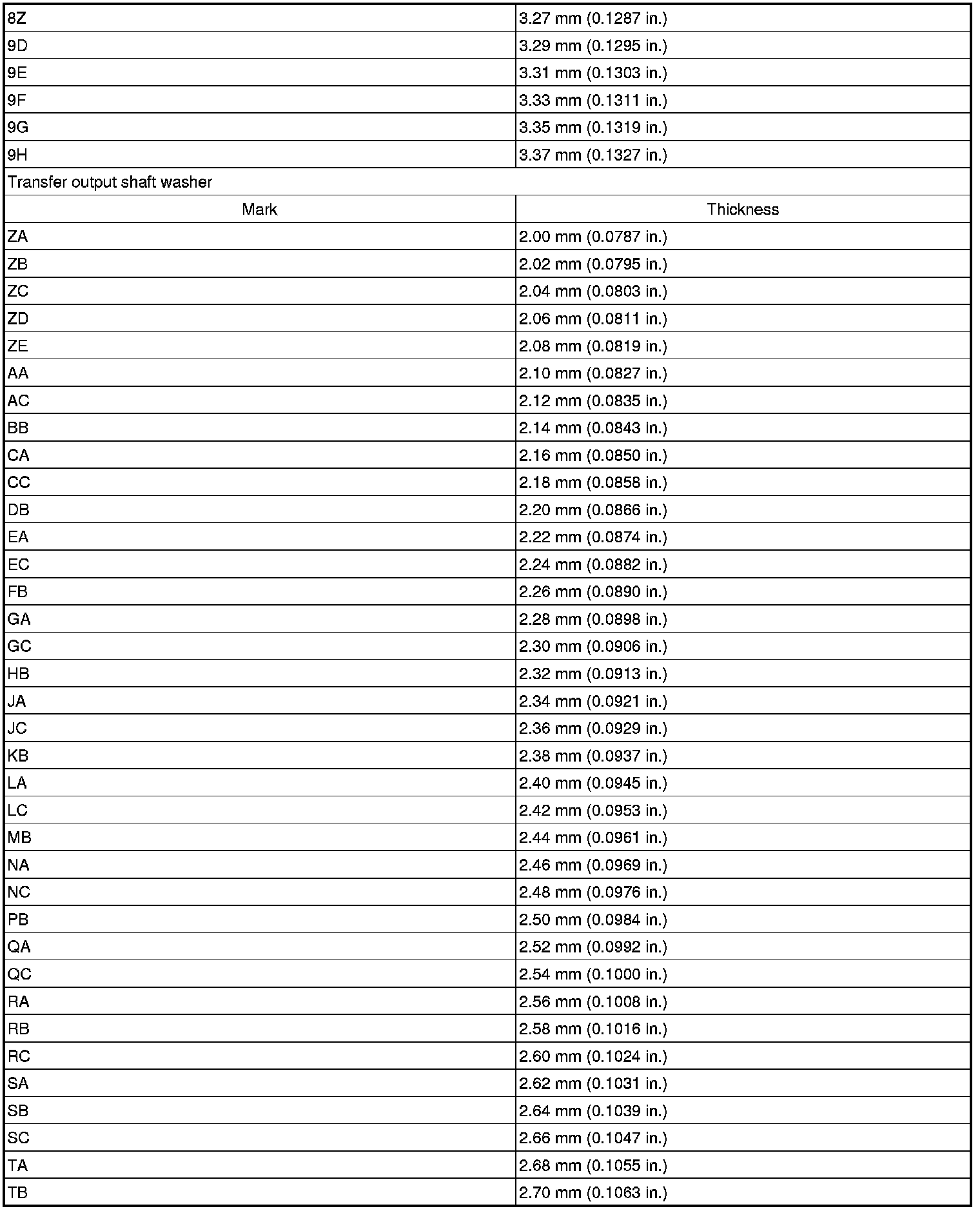

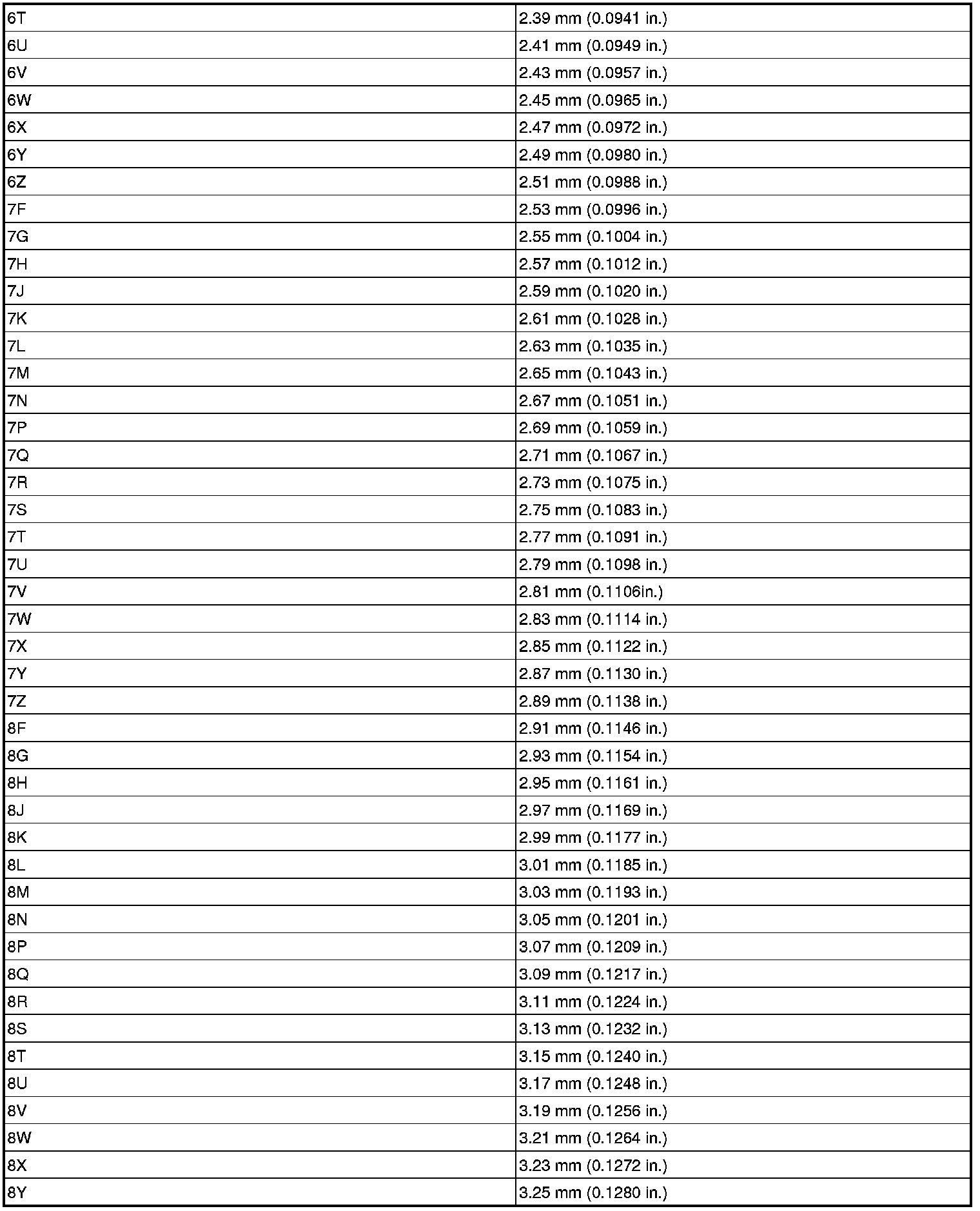

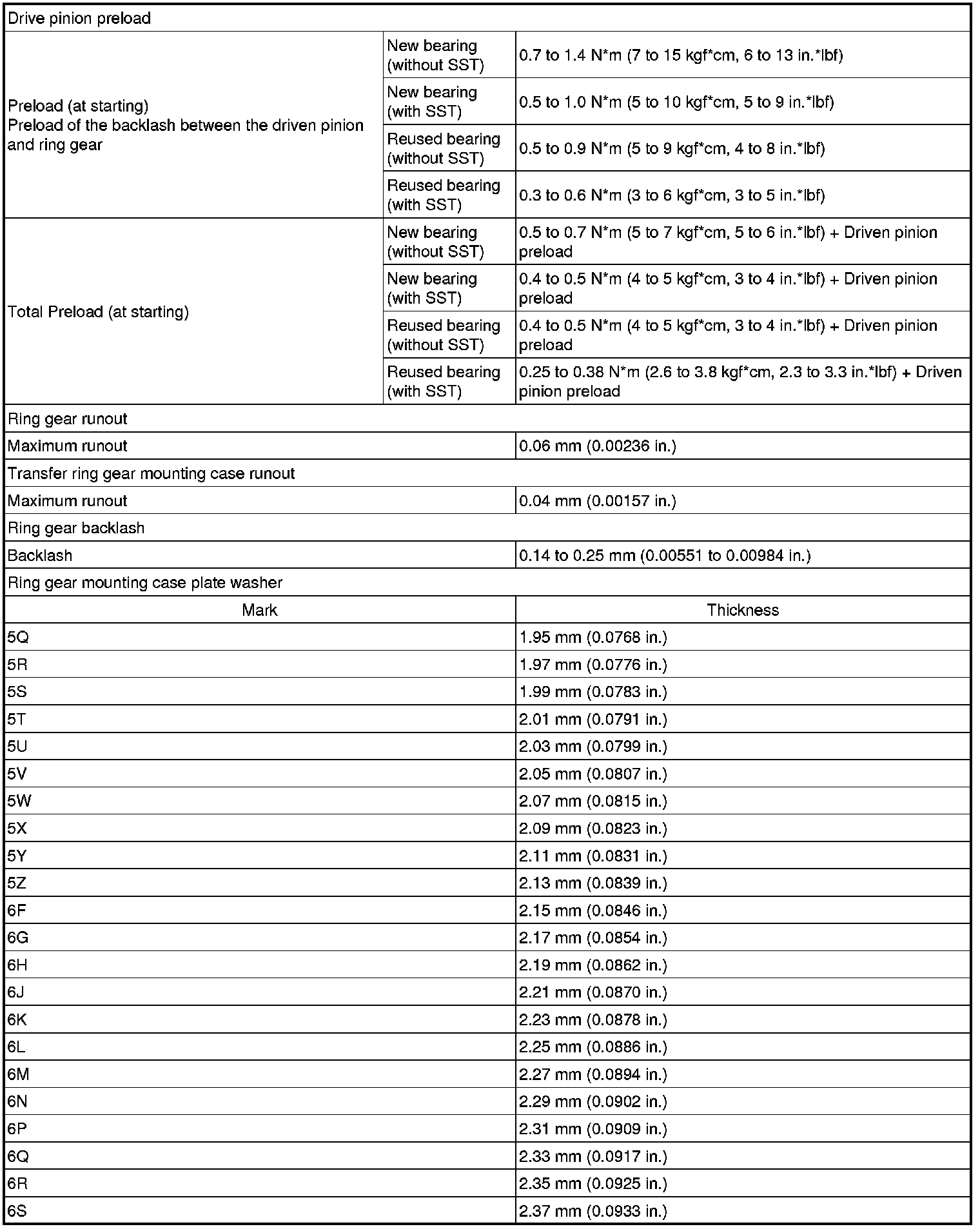

SPECIFICATIONS: MF1A TRANSFER / 4WD / AWD: SERVICE DATA

Transfer Case Front Oil Seal





Transfer Case Front Oil Seal (for RH Side)





Transfer Case Rear Oil Seal





Transfer Assembly

























4WD Control Switch
