Parking Assist (Intuitive Parking Assist)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parking Assist (Intuitive Parking Assist): Notes

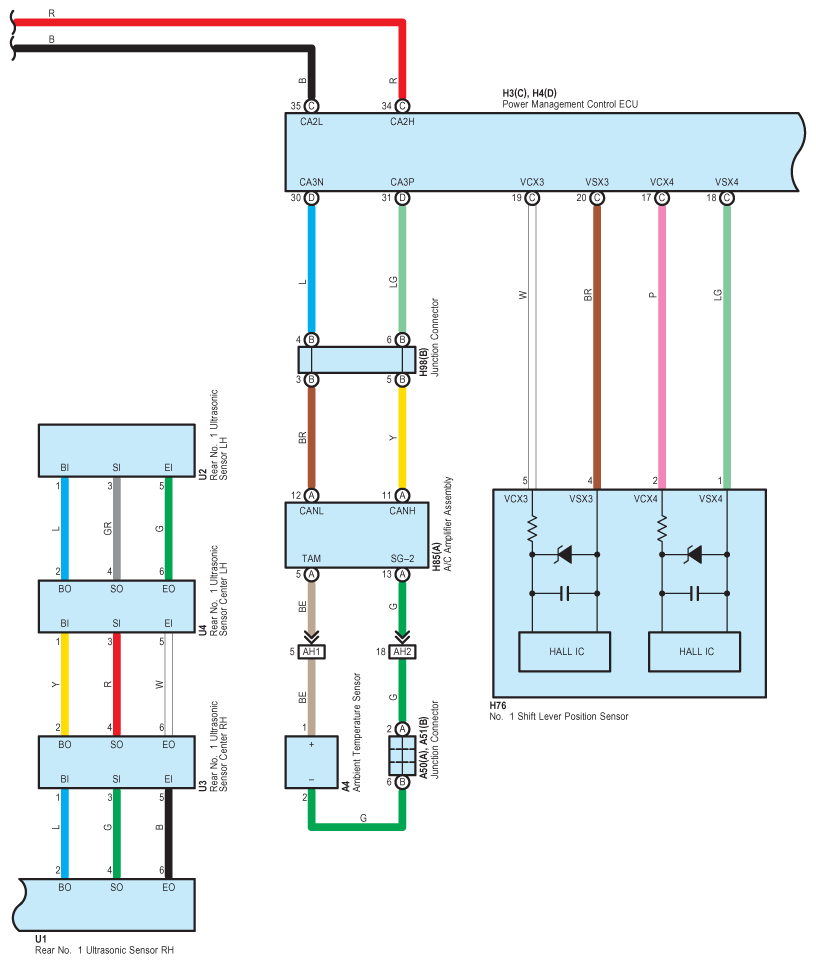

Fig 1: Intuitive Parking Assist System Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

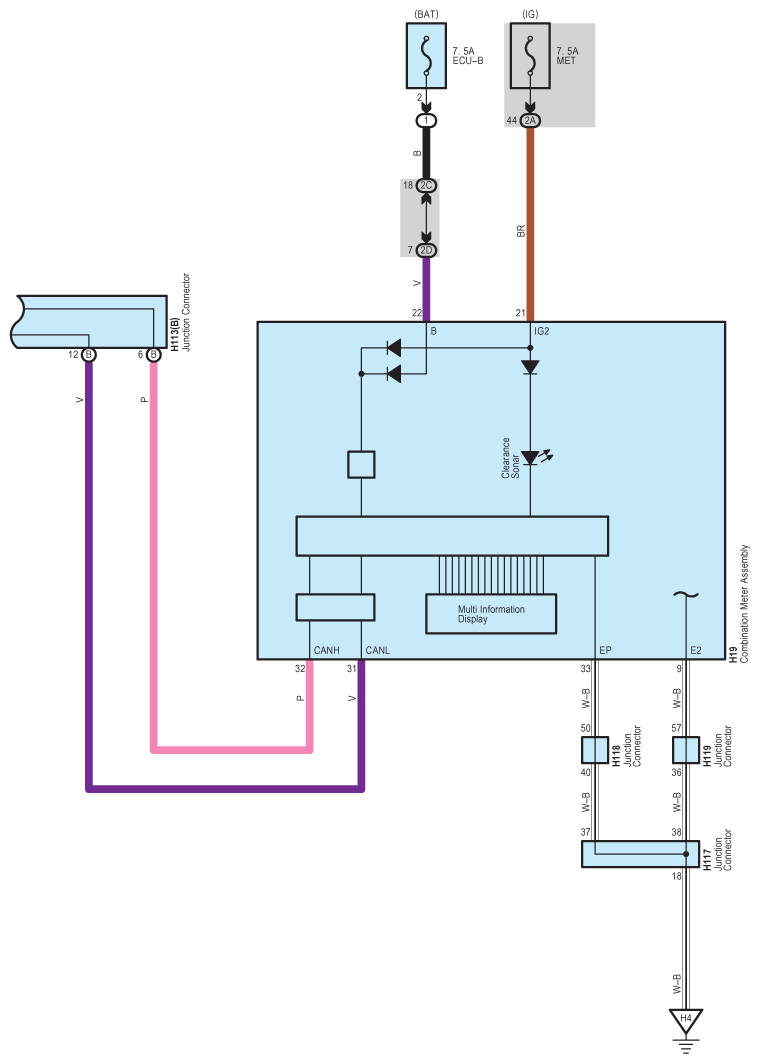

Fig 2: Intuitive Parking Assist System Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

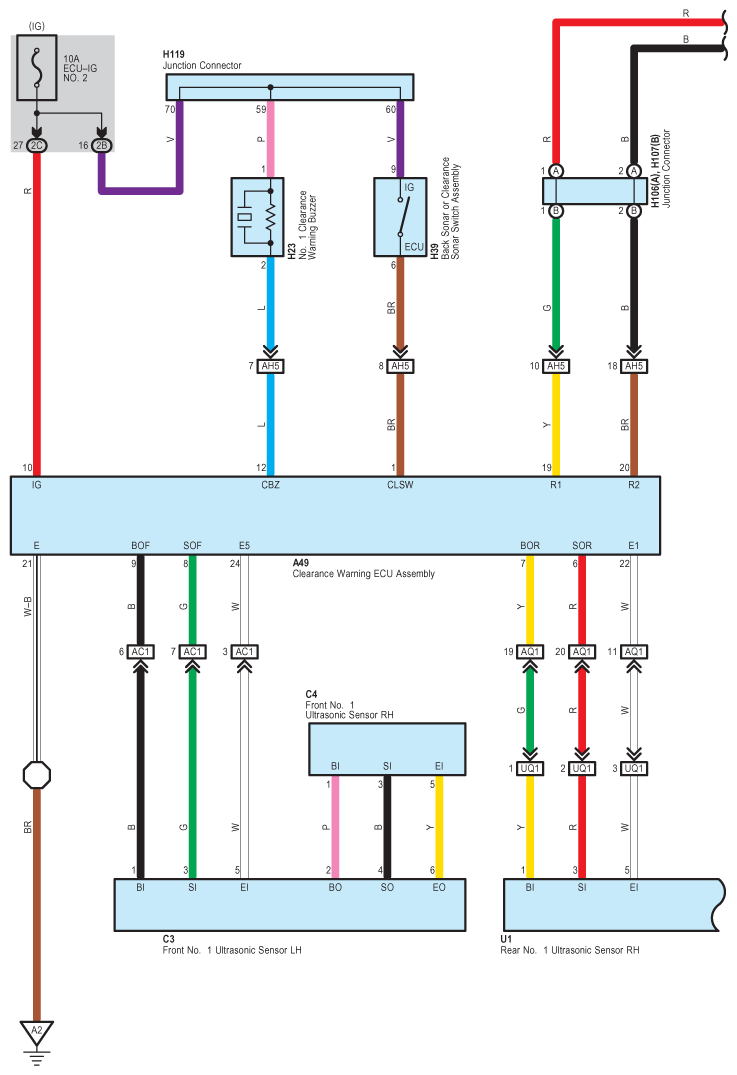

Fig 3: Intuitive Parking Assist System Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

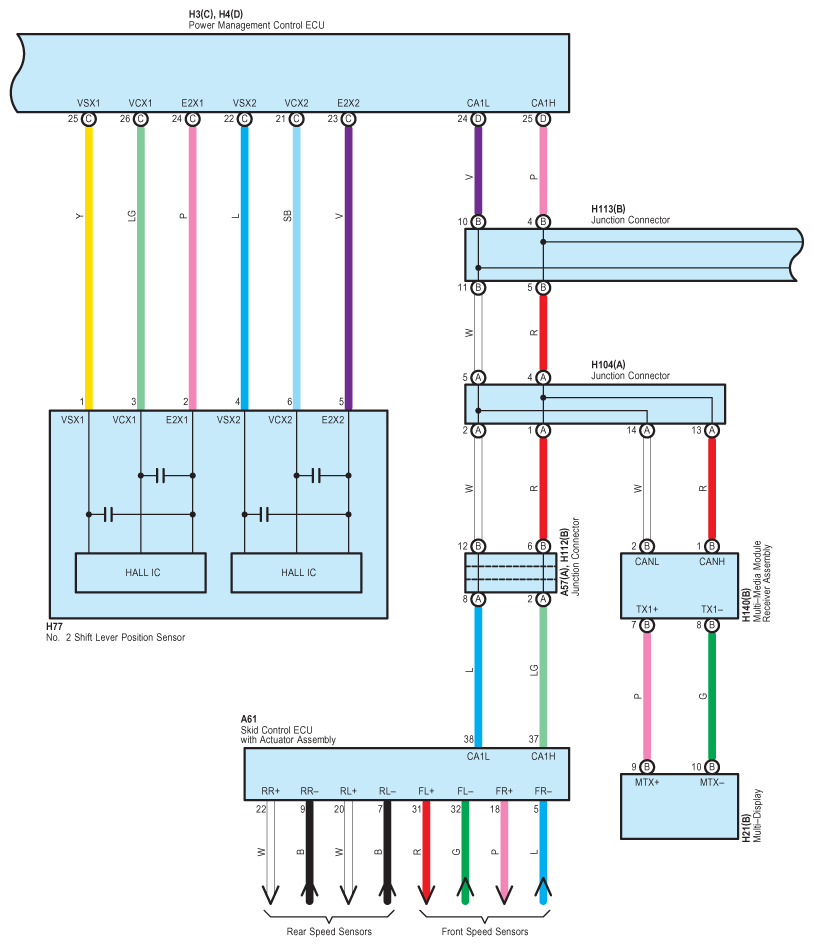

Fig 4: Intuitive Parking Assist System Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
