Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Procedure

  1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)
    1. Remove the power window regulator switch assembly (for front passenger side). Refer to REMOVAL [08/2012 - ] .

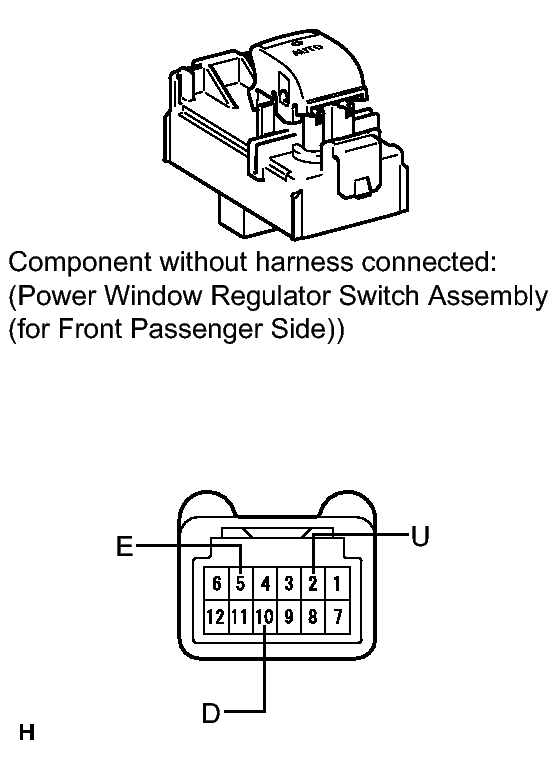

      GTY135750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      2 (U) - 5 (E) Auto up or up position Below 1 Ω
      10 (D) - 5 (E) Auto down or down position Below 1 Ω

    NG → See step   6

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (REGULATOR MOTOR - BATTERY AND BODY GROUND)
    1. Measure the voltage according to the value(s) in the table below.

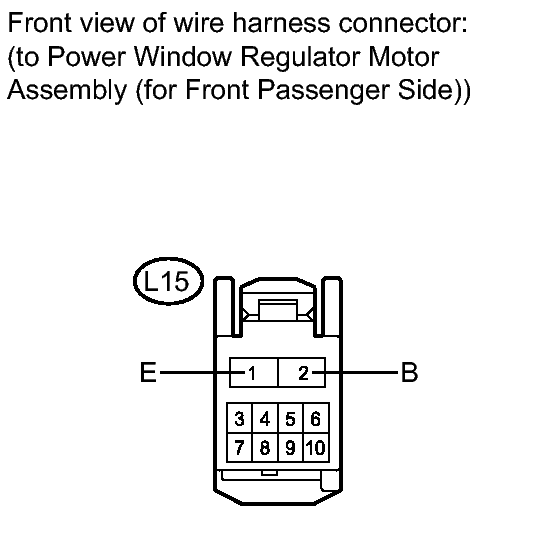

      GTY123073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Condition Specified Condition
      L15-2 (B) - Body ground Always 11 to 14 V
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L15-1 (E) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (FRONT PASSENGER SIDE SWITCH - MOTOR AND BODY GROUND)
    1. Disconnect the power window regulator motor assembly (for front passenger side) connector.

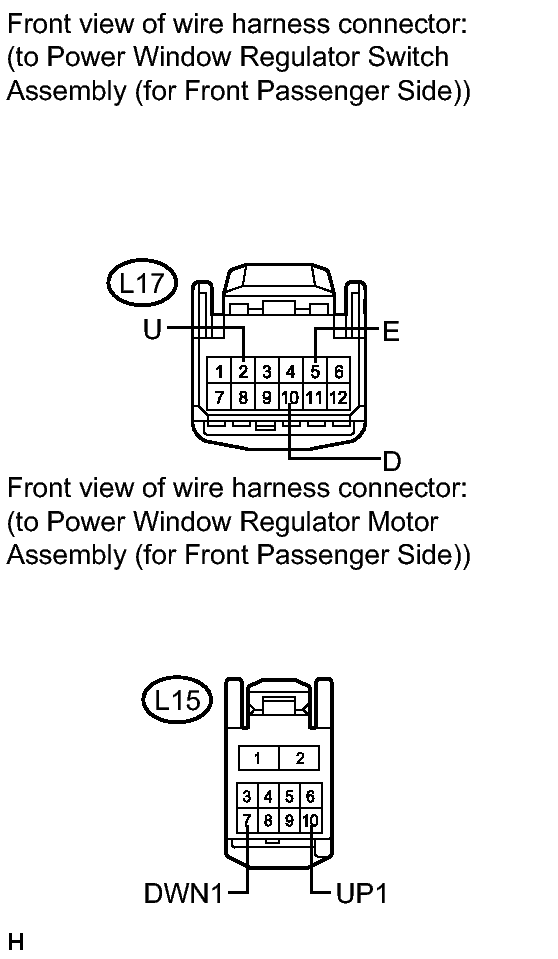

      GTY141121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L17-2 (U) - L15-10 (UP1) Always Below 1 Ω
      L17-10 (D) - L15-7 (DWN1) Always Below 1 Ω
      L17-5 (E) - Body ground Always Below 1 Ω
      L17-2 (U) - Body ground Always 10 kΩ or higher
      L17-10 (D) - Body ground Always 10 kΩ or higher
      L15-10 (UP1) - Body ground Always 10 kΩ or higher
      L15-7 (DWN1) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side)
    1. Replace the power window regulator motor assembly (for front passenger side). Refer to REMOVAL [08/2012 - ] .

    NEXT: Go to next step

  5. CHECK MANUAL UP / DOWN FUNCTION
    1. Check that the passenger side door power window moves when the manual up/down function of the power window regulator assembly (for front passenger side) is operated. Refer to OPERATION CHECK [08/2012 - ] .

      OK

      Passenger side manual up/down function is normal.

    NG → See step   7

    OK → END (POWER WINDOW REGULATOR MOTOR ASSEMBLY IS DEFECTIVE)

  6. REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side). Refer to  REMOVAL [08/2012 - ]
  7. REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to  DISASSEMBLY [08/2012 - ] - Step 2
